064875 DODGE - P2B-GTH-55M-E

Brand - DODGE
Item Number - 064875 DODGE - P2B-GTH-55M-E
Category - GRIP TIGHT Adapter Ball Bearings (GTH-E Expansion Pillow Blocks)
Series - 211
Shaft Size (mm) - 55
Description - P2B-GTH-55M-E
Part Number (Unit without Adapter Sleeve and Lock Nut) - 130701
Description (Unit without Adapter Sleeve and Lock Nut) - P2B-GTH-11-E
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136559
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-11-55M-D
Weight (kg) - 4.8

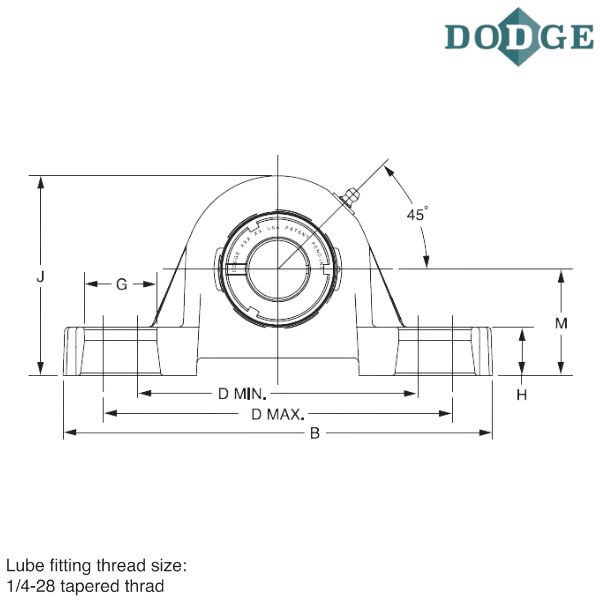

Length Through Bore (A) mm - 49
Overall Length (B) mm - 241.3
Width (C) mm - 60.2
Bolt to Bolt Minimum Distance (D min) mm - 174.8
Bolt to Bolt Maximum Distance (D max) mm - 201.7
F-Bolt Diameter - M16
G (mm) - 30.7
H (mm) - 22.4
Overall Height (J) mm - 137.2
L (mm) - 87.1
Base to Center Height (M) mm - 69.9
R (mm) - 17
S (mm) - 32
Total Expansion (T) mm - 5.6
U (mm) - 108
V (mm) - 215.9
W (mm) - 22.4
X (mm) - 3
Z (mm) - 33.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric
E - Expansion

** Images are for representation purposes only
