064794 DODGE - P2B-GTH-50M-E

Brand - DODGE
Item Number - 064794 DODGE - P2B-GTH-50M-E
Category - GRIP TIGHT Adapter Ball Bearings (GTH-E Expansion Pillow Blocks)
Series - 210
Shaft Size (mm) - 50
Description - P2B-GTH-50M-E
Part Number (Unit without Adapter Sleeve and Lock Nut) - 130700
Description (Unit without Adapter Sleeve and Lock Nut) - P2B-GTH-10-E
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136558
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-10-50M-D
Weight (kg) - 3.3

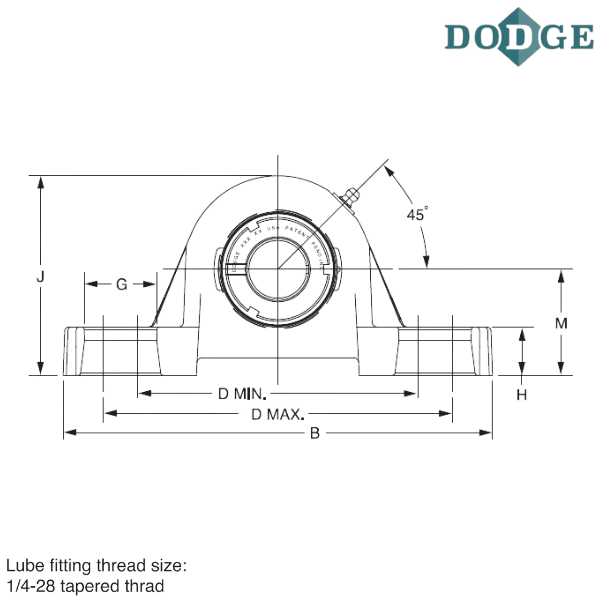

Length Through Bore (A) mm - 47.2
Overall Length (B) mm - 225.6
Width (C) mm - 58.4
Bolt to Bolt Minimum Distance (D min) mm - 162.1
Bolt to Bolt Maximum Distance (D max) mm - 189
F-Bolt Diameter - M16
G (mm) - 30.7
H (mm) - 22.4
Overall Height (J) mm - 126
L (mm) - 79.5
Base to Center Height (M) mm - 63.5
R (mm) - 16
S (mm) - 31.2
Total Expansion (T) mm - 5.6
U (mm) - 100.1
V (mm) - 200.2
W (mm) - 20.6
X (mm) - 3
Z (mm) - 32
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric
E - Expansion
