064684 DODGE - P2B-GTMAH-70M

Brand - DODGE
Item Number - 064684 DODGE - P2B-GTMAH-70M
Category - GRIP TIGHT Adapter Ball Bearings (GMTAH Air Handling Medium Duty Pillow Blocks)
Series - 215
Shaft Size (mm) - 70
Description - P2B-GTMAH-70M
Part Number (Unit without Adapter Sleeve and Nut) - 129451
Description (Unit without Adapter Sleeve and Nut) - P2B-GTAH-15
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136569
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-15-70M-D
Weight (kg) - 10.1

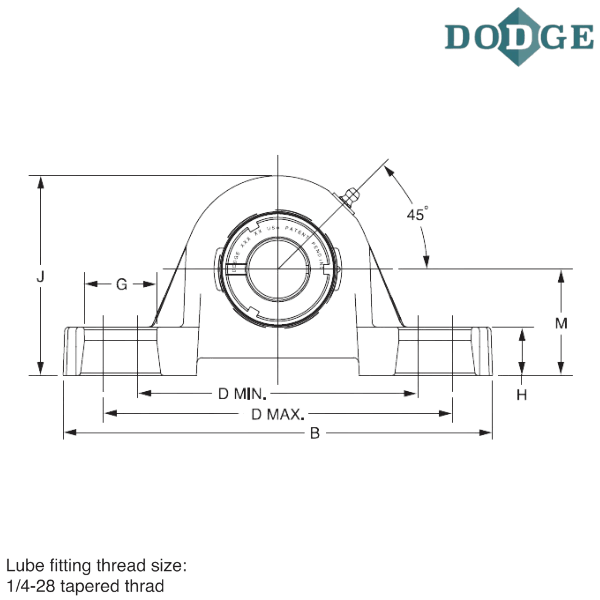

Length Through Bore (A) mm - 62.5
Overall Length (B) mm - 298.5
Width (C) mm - 73.2
Bolt to Bolt Minimum Distance (D min) mm - 215.9
Bolt to Bolt Maximum Distance (D max) mm - 241.3
F-Bolt Diameter - M22
G (mm) - 36.6
H (mm) - 25.4
Overall Height (J) mm - 171.5
L (mm) - 112.8
Base to Center Height (M) mm - 88.9
R (mm) - 21.8
S (mm) - 40.6
U (mm) - 139.2
V (mm) - 278.4
W (mm) - 26.4
X (mm) - 3
Z (mm) - 40.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
GTM - Wide inner ring, medium duty, thin wall adapter locking
AH - Air Handling
M - Metric

** Images are for representation purposes only
