Description
Brand - DODGE
Item Number - 064637 DODGE - P2B-SCH-100-E
Category - Setscrew Ball Bearings (SCH-E Expansion Normal Duty Pillow Blocks)
Series - 205
Shaft Size (inch) - 1.0
Description - P2B-SCH-100-E
Part Number (Non-Expansion) - 126147
Description (Non-Expansion) - P2B-SCM-100
Weight (lbs) - 2.8

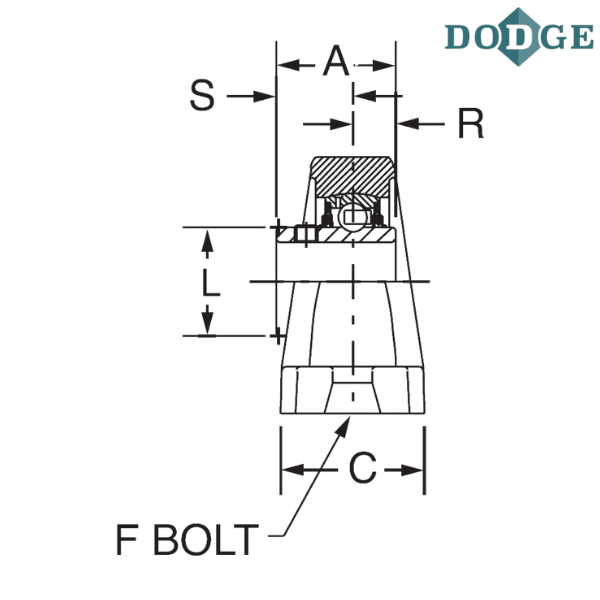

Length Through Bore (A) inch - 1.34

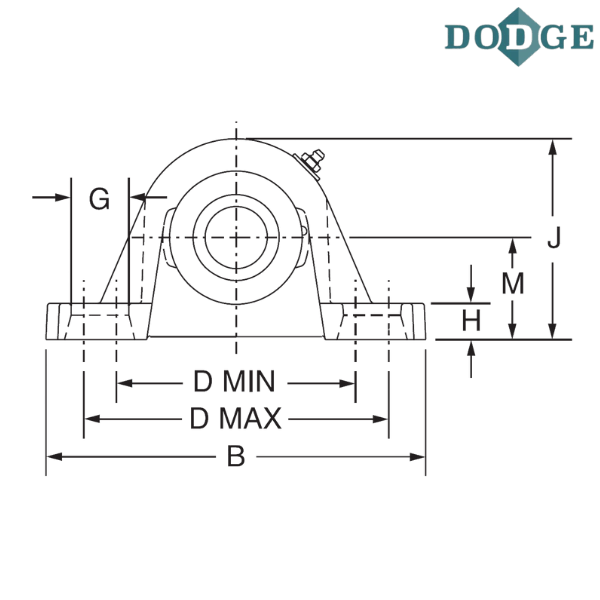

Overall Length (B) inch - 6.25
Width (C) inch - 1.75
Bolt to Bolt Minimum Distance (D min) mm - 4.25
Bolt to Bolt Maximum Distance (D max) mm - 5
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.94
H (inch) - 0.75
Overall Height (J) inch - 3.31
L (inch) - 1.32
Base to Center Height (M) inch - 1.69
R (inch) - 0.56
S (inch) - 0.78
Total Expansion (T) inch - 0.16

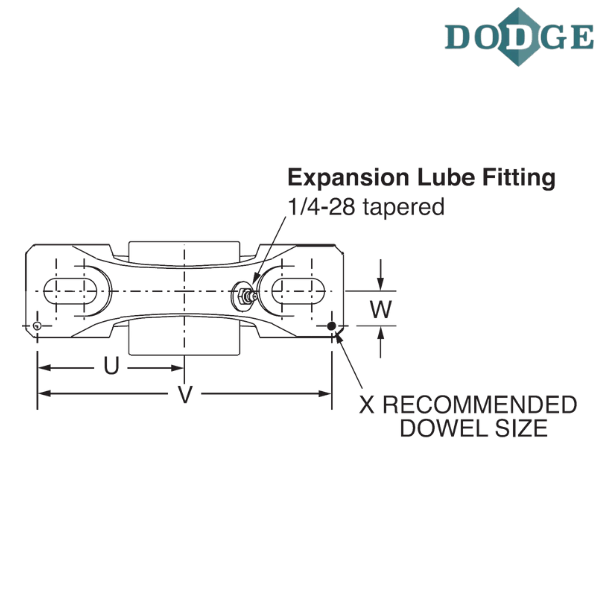

U (inch) - 2.88
V (inch) - 5.76
W (inch) - 0.56
X (inch) - 0.12
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - 2-bolt base pillow block
SC - Wide inner ring, normal duty, 65° setscrew locking
H - High backing height
E - Expansion

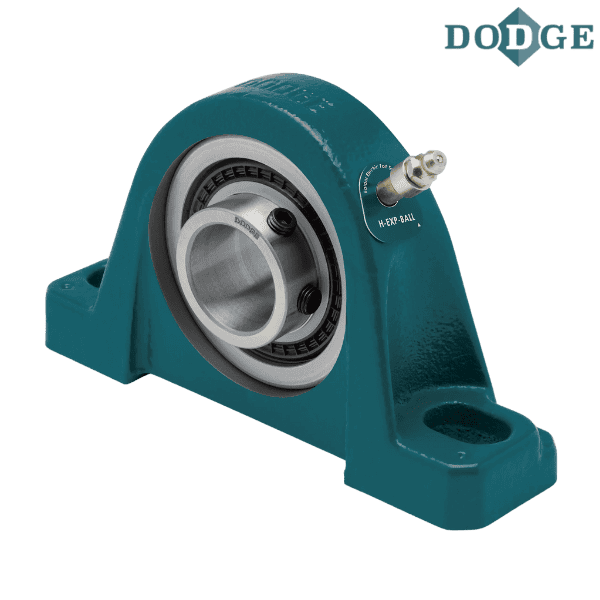

** Images are for representation purposes only
