Description
Brand - DODGE
Item Number - 064624 DODGE - LF-DL-104
Category - D-LOK® Ball Bearings (DL LFT Normal Duty 3-Bolt Flange Bearings)
Series - 207
Shaft Size (inch) - 1.25
Description - LF-DL-104
Weight (lbs) - 1.5

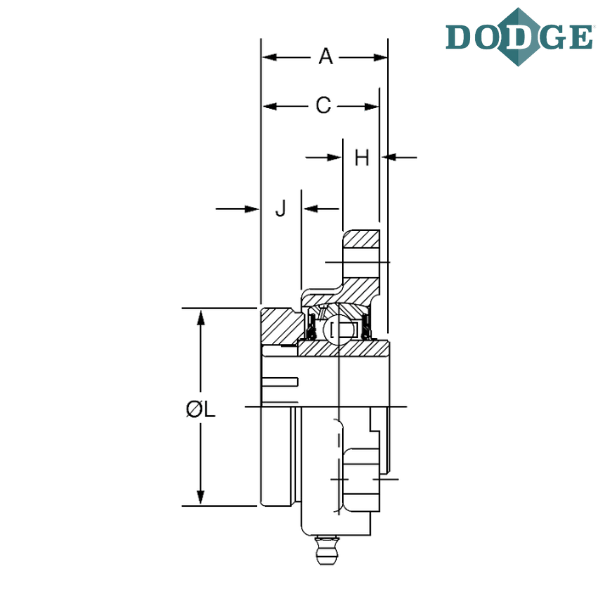

Length Through Bore (A) inch - 1.75

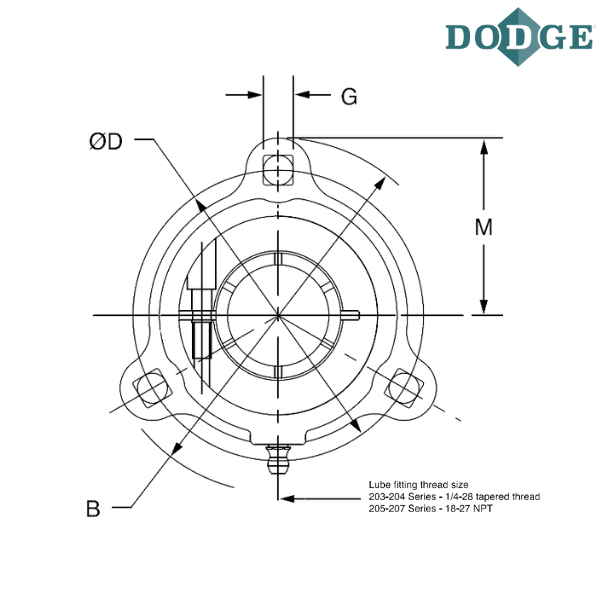

B (inch) - 4.81
C (inch) - 1.64
Bolt Circle (D) inch - 3.94
Bolt Diameter (G) inch - 0.41
H (inch) - 0.5
J (inch) - 0.57
L (inch) - 2.69
M (inch) - 2.41
N (inch) - 2.14
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
LF - Light duty flange, 3-bolt, with square bolt holes
DL - Wide inner ring, normal duty, concentric clamp collar

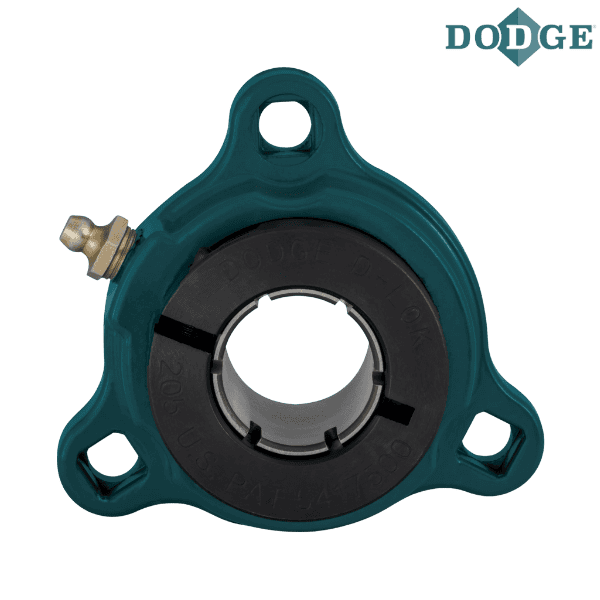

** Images are for representation purposes only
