Description
Brand - DODGE
Item Number - 063459 DODGE - CRT-AS-407E
Category - All Steel Cartridge Units - Inch (Cast Steel Expansion)
Shaft Size (inch) - 4.4375
Part Name - CRT-AS-407E
Approximate Weight (lbs) - 110

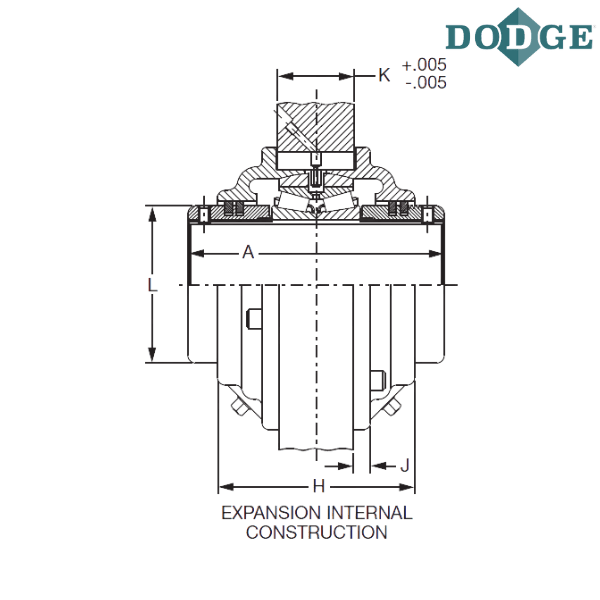

Length Through Bore (A) inch - 9.25

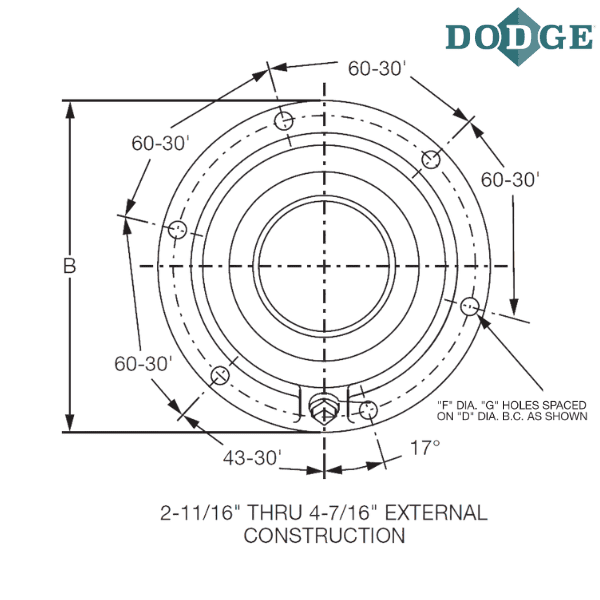

Overall Outer Diameter (B) inch - 10.84

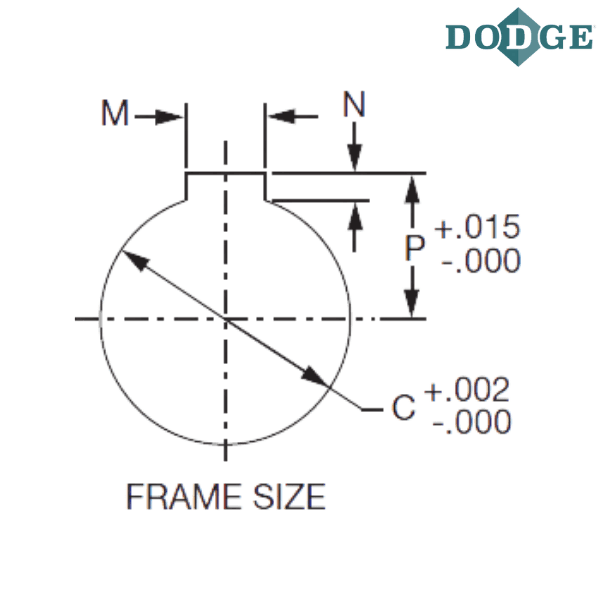

C (inch) - 9.07
D (inch) - 9.88
F-Bolt Diameter (inch) - 0.5
G (inch) - 6
H (inch) - 7
J (inch) - 0.5
K (inch) - 3.5
L (inch) - 6.06
M (inch) - 1
N (inch) - 0.625
P (inch) - 5.13
Exp* (inch) - 0.375
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
CRT - Cartridge Unit, Ductile Iron End Plates
AS - All Steel
E - Expansion Type Bearing
* Total Expansion for Expansion Bearing only
** Images are for representation purposes only
