Description
Brand - DODGE
Item Number - 063451 DODGE - CRT-AS-215E
Category - All Steel Cartridge Units - Inch (Cast Steel Expansion)
Shaft Size (inch) - 2.9375
Part Name - CRT-AS-215E
Approximate Weight (lbs) - 30

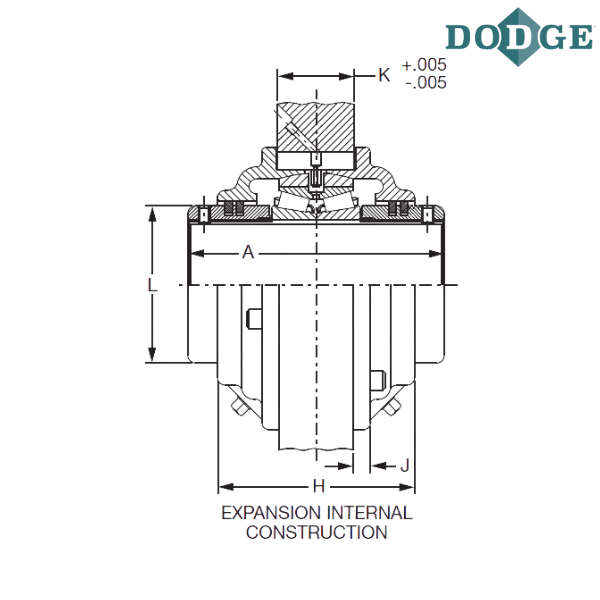

Length Through Bore (A) inch - 6.5

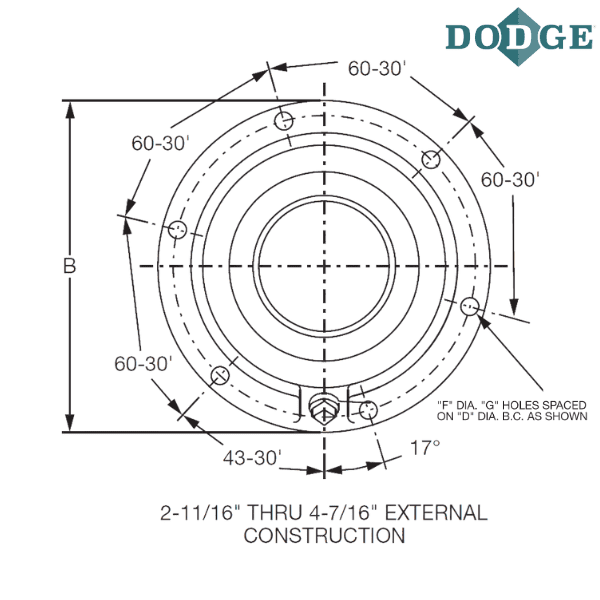

Overall Outer Diameter (B) inch - 7.13

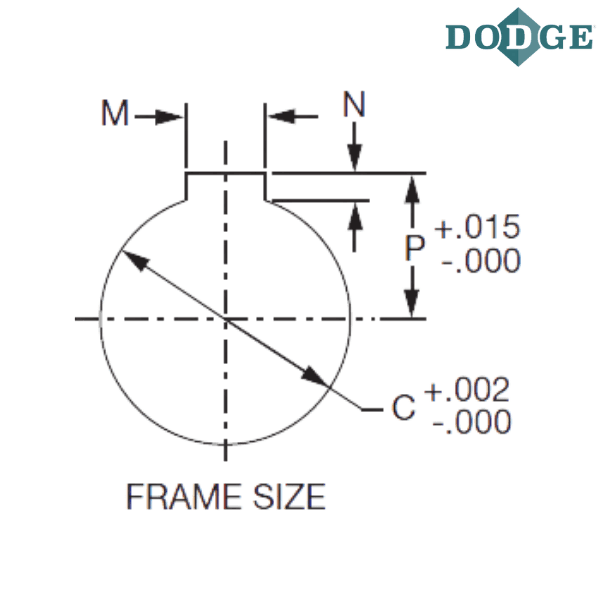

C (inch) - 5.7
D (inch) - 6.38
F-Bolt Diameter (inch) - 0.375
G (inch) - 6
H (inch) - 4.88
J (inch) - 0.38
K (inch) - 2.19
L (inch) - 4
M (inch) - 1
N (inch) - 0.625
P (inch) - 3.43
Exp* (inch) - 0.375
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
CRT - Cartridge Unit, Ductile Iron End Plates
AS - All Steel
E - Expansion Type Bearing
* Total Expansion for Expansion Bearing only
** Images are for representation purposes only
