063390 DODGE - SP4B-AS-215E


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 063390 DODGE - SP4B-AS-215E
Category - 4-Bolt Base All Steel Pillow Block - Inch (Cast Steel Expansion)
Shaft Size (inch) - 2.9375
Part Name - SP4B-AS-215E
Approximate Weight (lbs) - 42

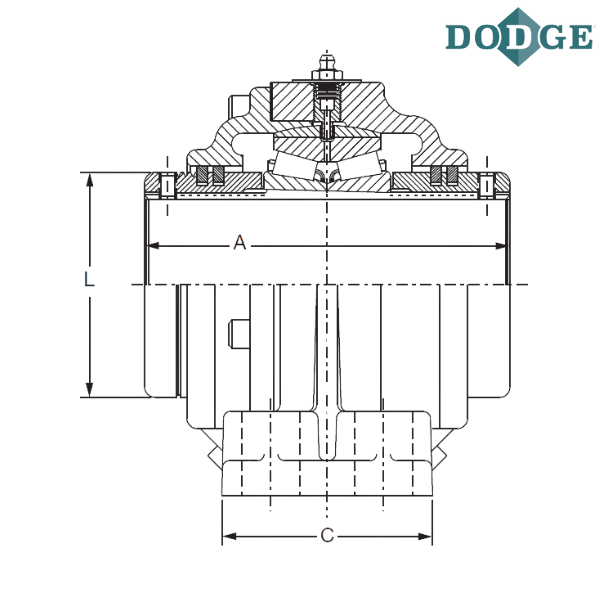

Length Through Bore (A) inch - 6.5
Overall Length (B) inch - 12.5
C (inch) - 3.75
Bolt to Bolt Minimum Distance (D min) inch - 10.31
Bolt to Bolt Maximum Distance (D max) inch - 10.69
E (inch) - 2
F-Bolt Diameter (inch) - 0.625
G (inch) - 0.94
H (inch) - 1.63
Overall Height (J) inch - 7.5
L (inch) - 4
Base to Center Height (M) inch - 3.75
Exp* (inch) - 0.375
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
SP4B - Pillow Block 4-Bolt, Cast Steel
AS - All Steel
E - Expansion Type Bearing

* Total Expansion for Expansion Bearing only

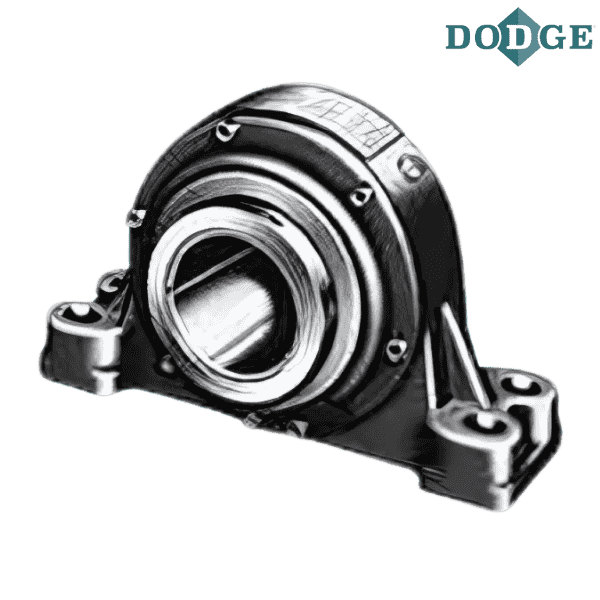

** Images are for representation purposes only
