063366 DODGE - SP4B-AS-407


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 063366 DODGE - SP4B-AS-407
Category - 4-Bolt Base All Steel Pillow Block - Inch (Cast Steel Non-Expansion)
Shaft Size (inch) - 4.4375
Part Name - SP4B-AS-407
Approximate Weight (lbs) - 149

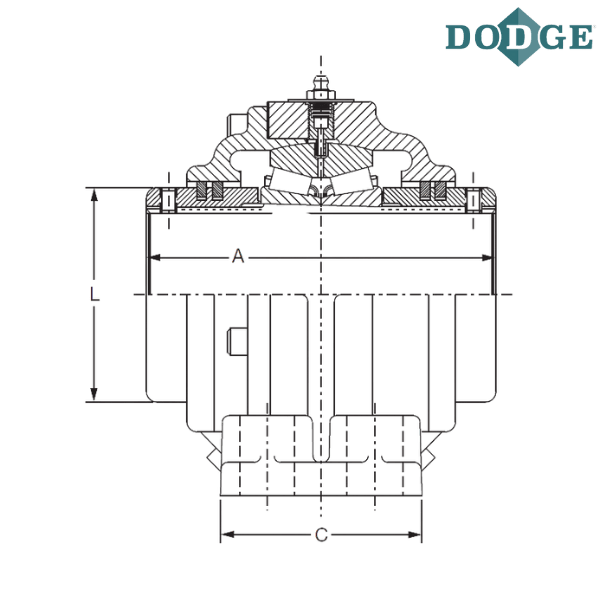

Length Through Bore (A) inch - 9.75
Overall Length (B) inch - 18.75
C (inch) - 5.25
Bolt to Bolt Minimum Distance (D min) inch - 14.81
Bolt to Bolt Maximum Distance (D max) inch - 15.69
E (inch) - 3.25
F-Bolt Diameter (inch) - 0.875
G (inch) - 1.31
H (inch) - 2.25
Overall Height (J) inch - 11.38
L (inch) - 6
Base to Center Height (M) inch - 5.75
Exp* (inch) - 0.375
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
SP4B - Pillow Block 4-Bolt, Cast Steel
AS - All Steel

* Total Expansion for Expansion Bearing only

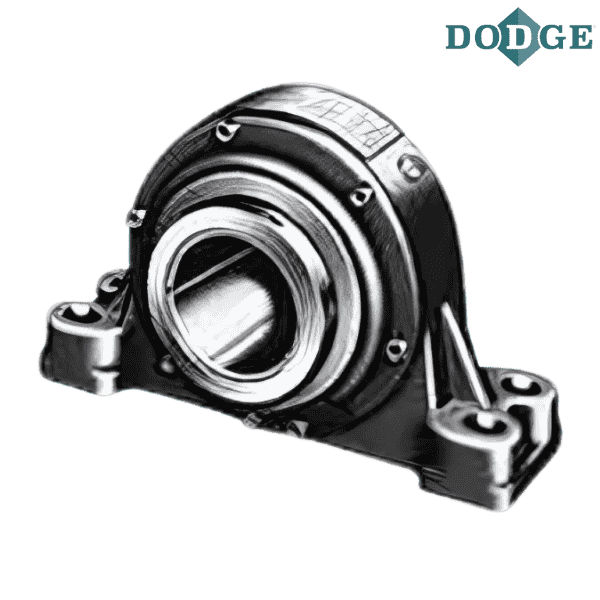

** Images are for representation purposes only
