Description
Brand - DODGE
Item Number - 062994 DODGE - F2B-SCEZ-010L-SHCR
Category - E-Z KLEEN Mounted Bearings (SCEZ Normal Duty Stainless Steel 2-Bolt Flange Bearings)
Shaft Size (inch) - 0.625
Description - F2B-SCEZ-010L-SHCR
Description (With Corrosion Resistant Insert) - F2B-SCEZ-010L-SH
Weight (lbs) - 0.99

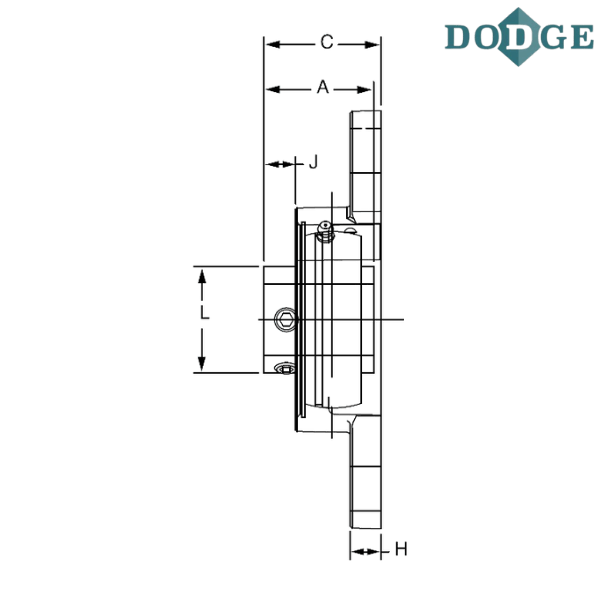

Length Through Bore (A) inch - 1.23
Overall Length (B) inch - 4.38
Thickness (C) inch - 1.25
Bolt Center to Center Length (D) inch - 3.54
F-Bolt Diameter (inch) - 0.375
H (inch) - 0.32
J (inch) - 0.36
L (inch) - 1.12
Overall Width (M) inch - 2.38
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2-bolt flange
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
L - Next larger ring size
SH - Stainless Steel Housing
CR - Corrosion resistant insert
** Images are for representation purposes only
