062958 DODGE - P2B-GTAH-211

Brand - DODGE
Item Number - 062958 DODGE - P2B-GTAH-211
Category - GRIP TIGHT Adapter Ball Bearings (GTAH Air Handling Normal Duty Pillow Blocks)
Series - 214
Shaft Size (inch) - 2.6875
Description - P2B-GTAH-211
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129450
Description (Unit without Adapter Sleeve and Lock Nut) - P2B-GTAH-14
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136548
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-14-211-D
Weight (lbs) - 19.3

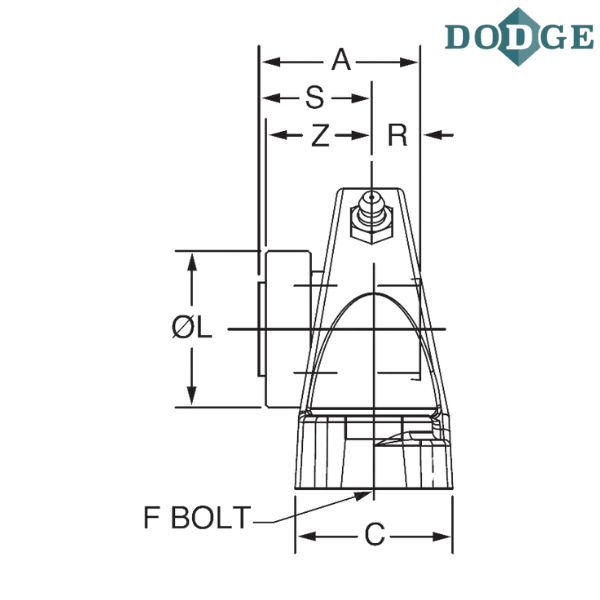

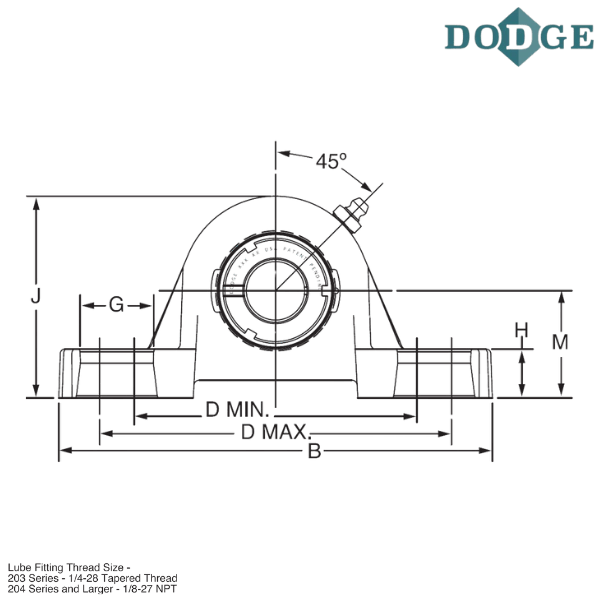

Length Through Bore (A) inch - 2.39
Overall Length (B) inch - 10.75
Width (C) inch - 2.69
Bolt to Bolt Minimum Distance (D min) inch - 7.5
Bolt to Bolt Maximum Distance (D max) inch - 8.5
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.32
H (inch) - 0.94
Overall Height (J) inch - 6.09
L (inch) - 4
Base to Center Height (M) inch - 3
R (inch) - 0.84
S (inch) - 1.55

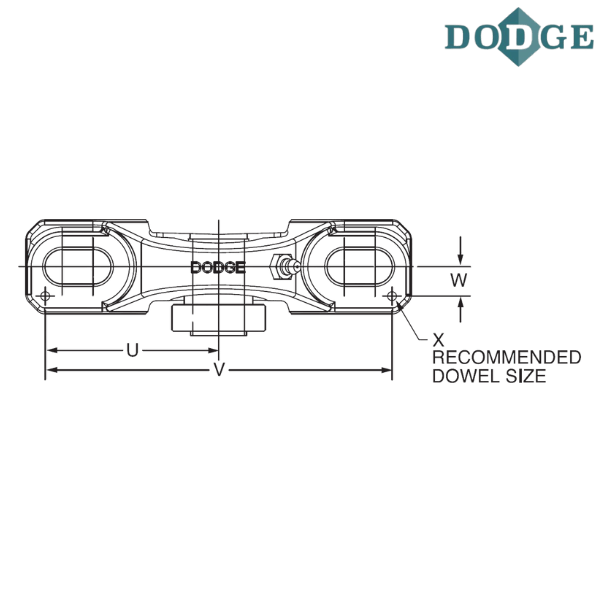

U (inch) - 4.88
V (inch) - 9.76
W (inch) - 0.94
X (inch) - 0.12
Z (inch) - 1.58
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
GT - Wide inner ring, normal duty, thin wall adapter locking
AH - Air Handling

** Images are for representation purposes only
