Description
Brand - DODGE
Item Number - 062881 DODGE - WSTU-DLM-204
Category - D-LOK® Ball Bearings (DLM Medium Duty Wide Slot Take-Up Bearings)
Series - 212
Shaft Size (inch) - 2.25
Description - WSTU-DLM-204
Weight (lbs) - 12.4
Take- Up Frame Size - WS502

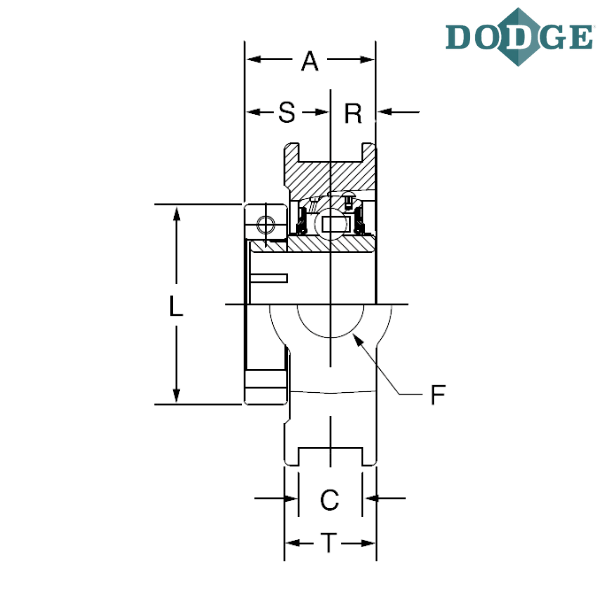

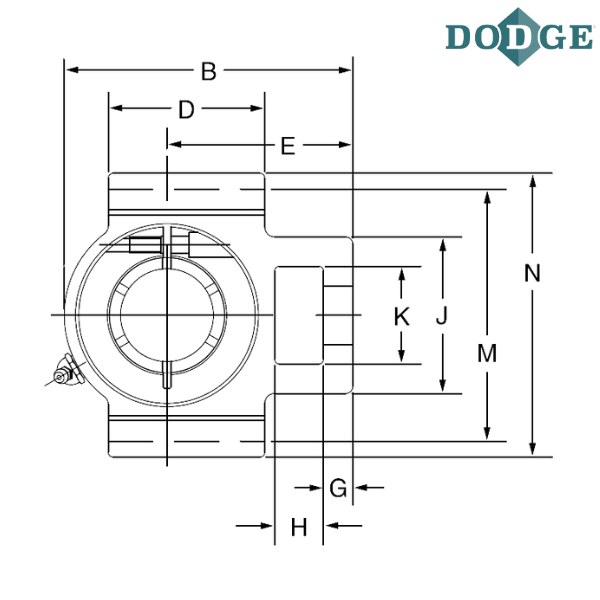

Length Through Bore (A) mm - 60.5
Overall Length (B) mm - 190.5
C (mm) - 27
D (mm) - 101.6
E (mm) - 119.1
F (Screw Diameter) mm - 31.8
G (mm) - 19.1
H (mm) - 31.8
J (mm) - 101.6
K (mm) - 63.5
L (mm) - 104.4
M (mm) - 129.79/130.56
Overall Width (N) mm - 149.4
R (mm) - 22.9
S (mm) - 37.6
T (mm) - 63.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
WSTU - Wide slot take-up
DLM - Wide inner ring, medium duty, concentric clamp collar

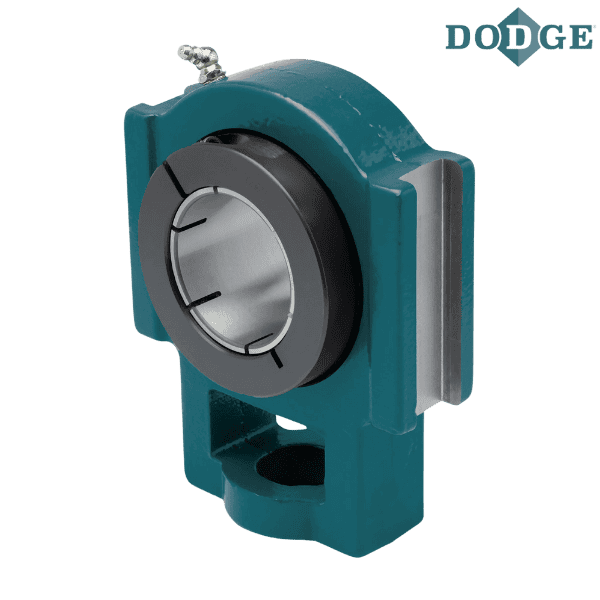

** Images are for representation purposes only
