Description
Brand - DODGE
Item Number - 062880 DODGE - TP-DLM-204

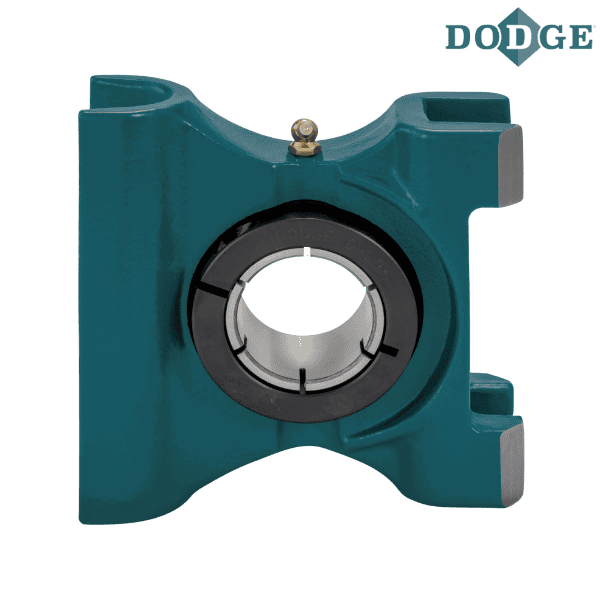

Category - D-LOK® Ball Bearings (DL Normal Duty Top Angle Take-Up Bearings)
Series - 212
Shaft Size (inch) - 2.25
Description - TP-DLM-204
Weight (lbs) - 17.2
Take-Up Frame Size - TP30

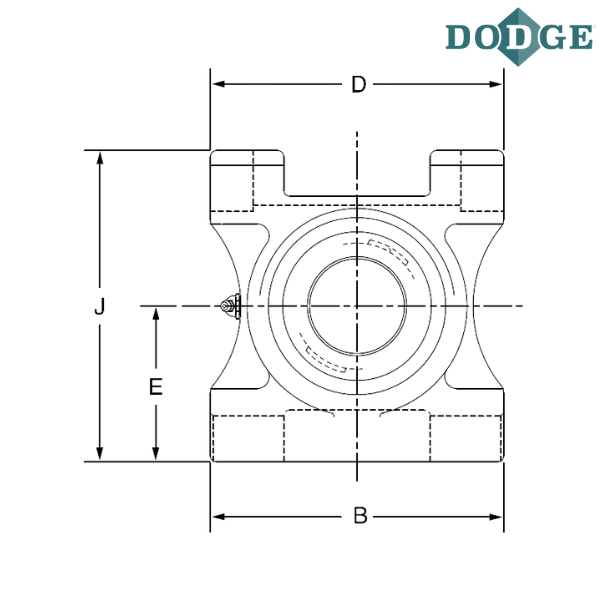

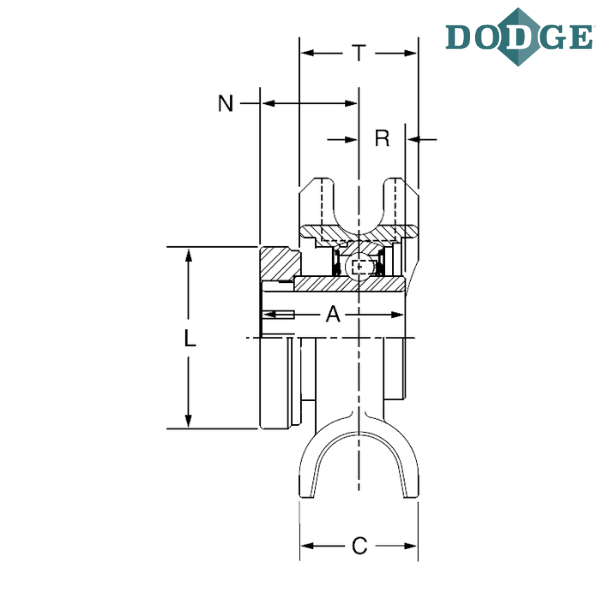

Length Through Bore (A) mm - 60.5
Overall Length (B) mm - 190.5
C (mm) - 69.9
D (mm) - 177.8
E (mm) - 88.9
Overall Width (J) mm - 189
L (mm) - 104.4
N (mm) - 37.6
R (mm) - 22.9
T (mm) - 69.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TP - Top angle take-up
DLM - Wide inner ring, medium duty, concentric clamp collar
** Images are for representation purposes only
