Description
Brand - DODGE
Item Number - 062835 DODGE - F4B-SCEZ-106-SHCR
Category - E-Z KLEEN Mounted Bearings (SCEZ Normal Duty Stainless Steel 4-Bolt Flange Bearings)
Series - 207
Shaft Size (inch) - 1.375
Description - F4B-SCEZ-106-SHCR
Description (With Insert With Flingers) - F4B-SCEZ-106-SH
Weight (lbs) - 2.83

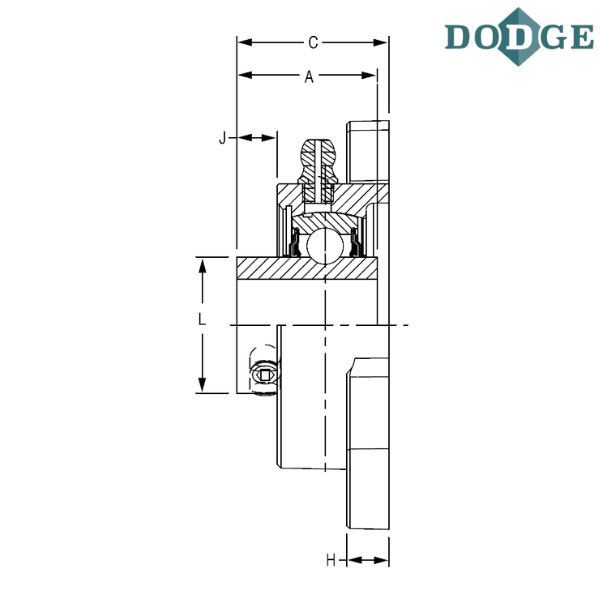

Length Through Bore (A) inch - 1.71
Overall Length (B) inch - 4.68
Thickness (C) inch - 1.76
Bolt Center to Center Length (D) inch - 3.62
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.42
J (inch) - 0.55
L (inch) - 1.84
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4-bolt flange
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
SH - Stainless Steel Housing
CR - Corrosion resistant insert
** Images are for representation purposes only
