Description
Brand - DODGE
Item Number - 062781 DODGE - LF-DL-104S
Category - D-LOK® Ball Bearings (DL LFT Normal Duty 3-Bolt Flange Bearings)
Series - 206
Shaft Size (inch) - 1.25
Description - LF-DL-104S
Weight (lbs) - 1.55

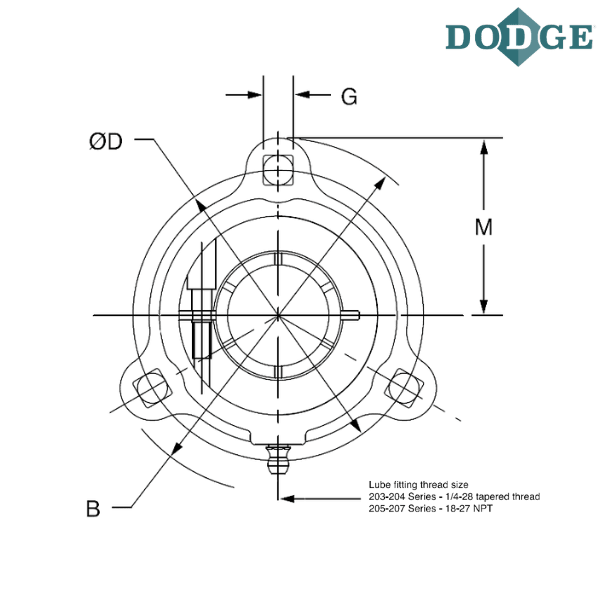

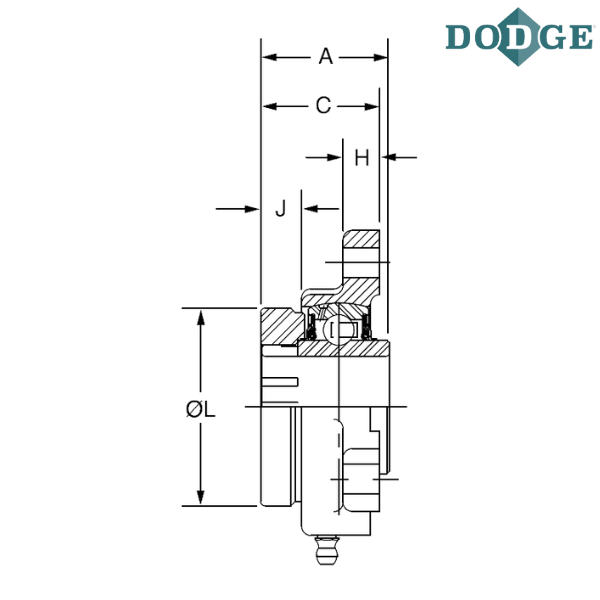

Length Through Bore (A) mm - 39.6
B (mm) - 112.8
C (mm) - 38.9
Bolt Circle (D) mm - 90.4
Bolt Diameter (G) mm - 10.4
H (mm) - 11.9
J (mm) - 13.7
L (mm) - 56.4
M (mm) - 56.4
N (mm) - 51.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
LF - Light duty flange, 3-bolt, with square bolt holes
DL - Wide inner ring, normal duty, concentric clamp collar
S - Next smaller ring size

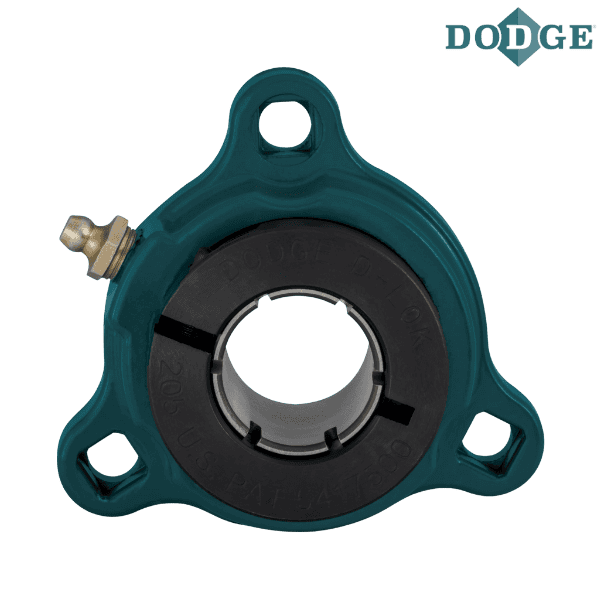

** Images are for representation purposes only
