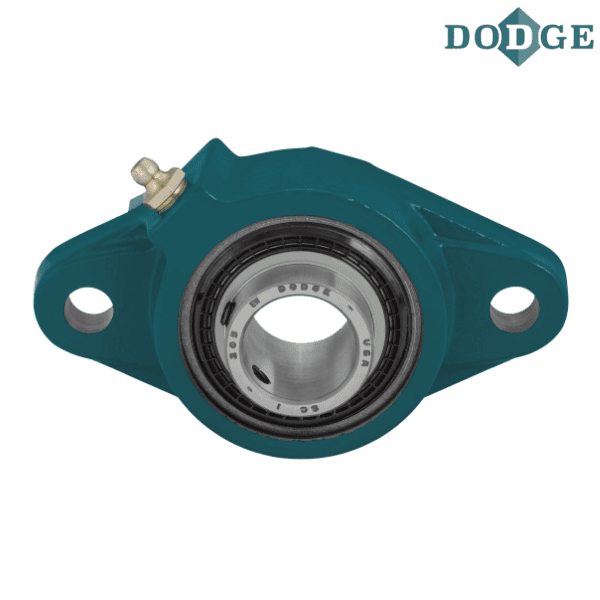

062779 DODGE - F2B-SC-50M-HT

Brand - DODGE
Item Number - 062779 DODGE - F2B-SC-50M-HT
Category - High Temperature Setscrew Ball Bearing (2-Bolt Flanges)
Series - 210
Description - F2B-SC-50M-HT
Shaft Size (mm) - 50
Weight (kg) - 2.5

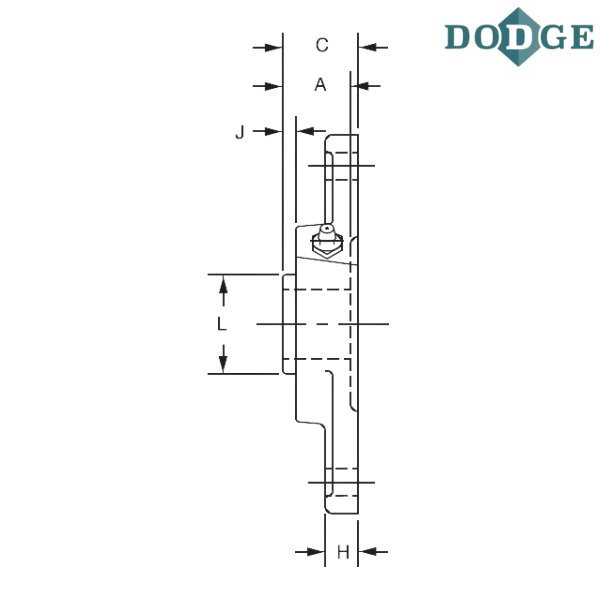

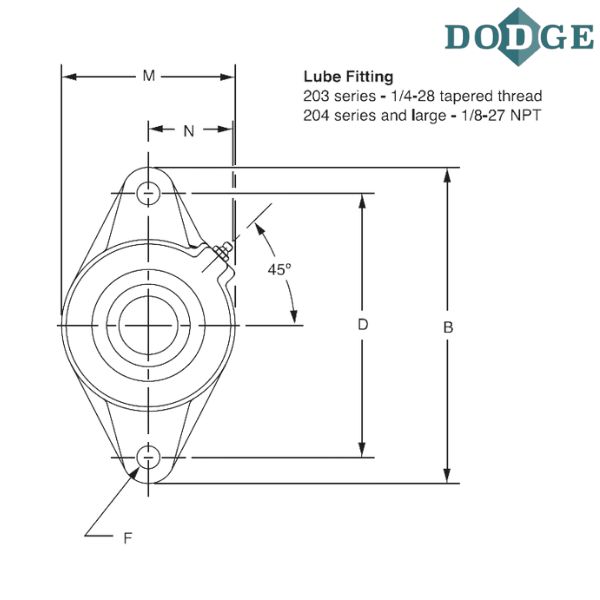

Length Through Bore (A) mm - 49.3
Overall Length (B) mm - 189
Thickness (C) mm - 51.3
Bolt Center to Center Length (D) mm - 157.2
F-Bolt Diameter - M16
H (mm) - 16
J (mm) - 14
L (mm) - 61.7
Overall Width (M) mm - 115.8
N (mm) - 51.6

Notes :
F2B - 2 bolt flange
SC - Wide inner ring, normal duty, 65° setscrew locking
M - Metric
HT - High Temperature

Lubricants - Lithium Complex Base Lubricant
Seals - The PROGUARD PLUS Seal
High Temperature - 225°F(108°C) to 400°F(205°C)
Air Handling - Supports for SC and SCM Air Handling Pillow Blocks and Flange Bearing
Housing Material - Stainless Steel and Polymer Coatings conform to U.S.D.A. and F.D.A. requirement.

** Images are for representation purposes only
