Description
Brand - DODGE
Item Number - 062773 DODGE - WSTU-DL-35M-NL
Category - D-LOK® Ball Bearings (DL Normal Duty Wide Slot Take-Up Bearings)
Series - 207
Shaft Size (mm) - 35
Description - WSTU-DL-35M-NL
Weight (kg) - 1.6
Take- Up Frame Size - WS308

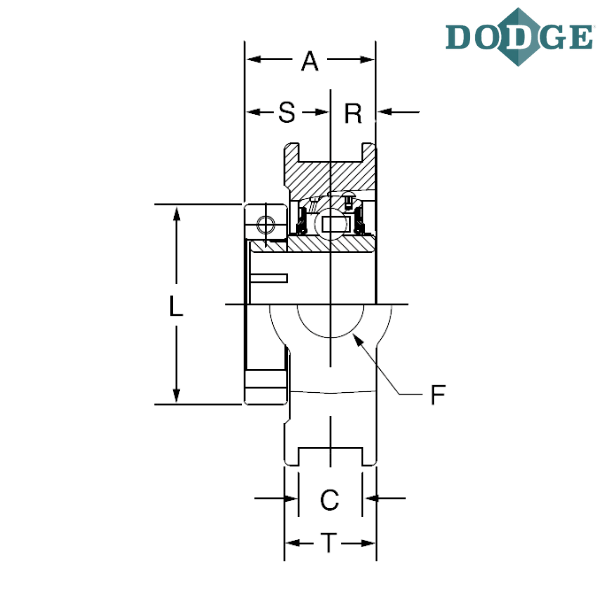

Length Through Bore (A) mm - 44.5

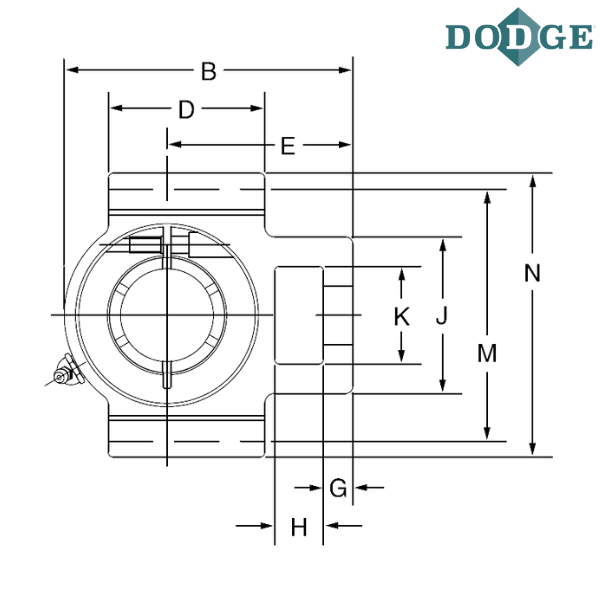

Overall Length (B) mm - 123.7
C (mm) - 13.49
D (mm) - 63.5
E (mm) - 77.7
F (Screw Diameter) mm - 19.1
G (mm) - 12.7
H (mm) - 16
J (mm) - 63.5
K (mm) - 36.6
L (mm) - 68.3
M (mm) - 88.39/89.15
Overall Width (N) mm - 104.9
R (mm) - 17
S (mm) - 27.4
T (mm) - 41.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
WSTU - Wide slot take-up
DL - Wide inner ring, normal duty, concentric clamp collar
L - Next larger ring size

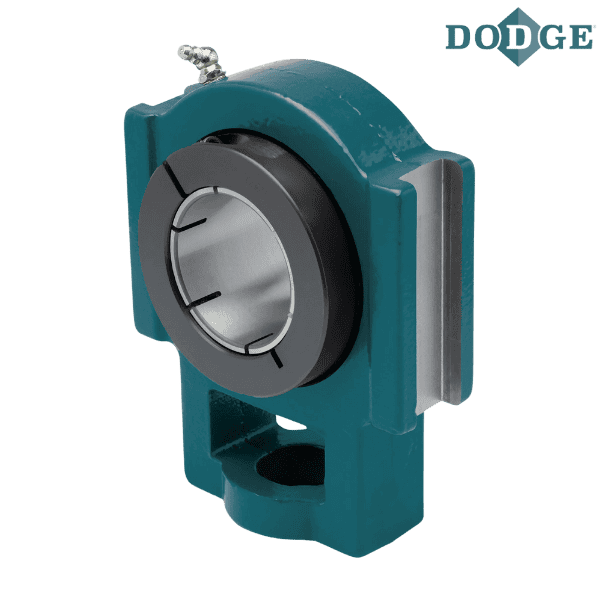

** Images are for representation purposes only
