Description
Brand - DODGE
Item Number - 062575 DODGE - LF-DL-107
Category - D-LOK® Ball Bearings (DL LFT Normal Duty 3-Bolt Flange Bearings)
Series - 207
Shaft Size (inch) - 1.4375
Description - LF-DL-107
Weight (lbs) - 2.05

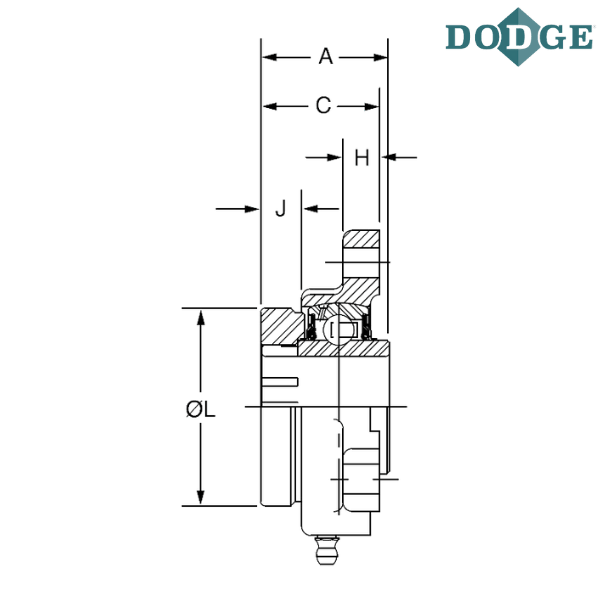

Length Through Bore (A) mm - 44.5
B (mm) - 122.2
C (mm) - 41.7

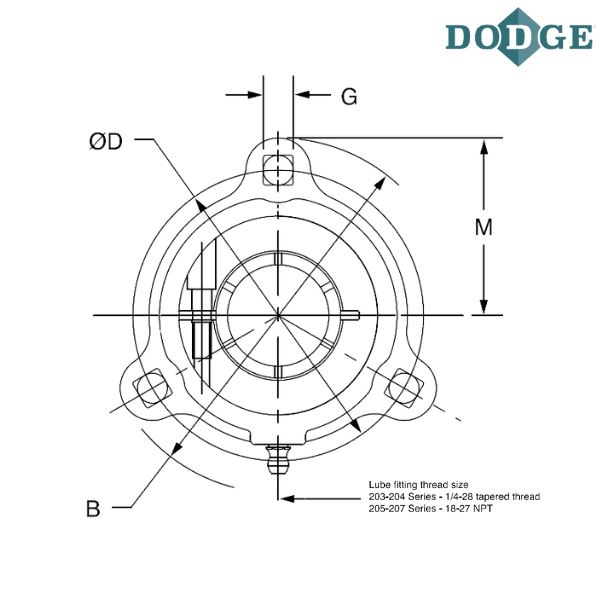

Bolt Circle (D) mm - 100.1
Bolt Diameter (G) mm - 10.4
H (mm) - 12.7
J (mm) - 14.5
L (mm) - 68.3
M (mm) - 61.2
N (mm) - 54.4
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
LF - Light duty flange, 3-bolt, with square bolt holes
DL - Wide inner ring, normal duty, concentric clamp collar

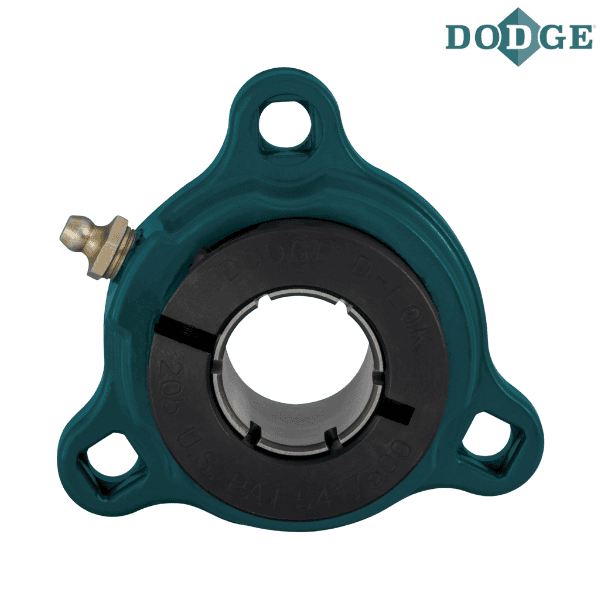

** Images are for representation purposes only
