062572 DODGE - P2B-SC-40M-HT

Brand - DODGE
Item Number - 062572 DODGE - P2B-SC-40M-HT
Category - High Temperature Setscrew Ball Bearing (Pillow Blocks)
Series - 208
Description - P2B-SC-40M-HT
Shaft Size (mm) - 40
Weight (kg) - 2.2

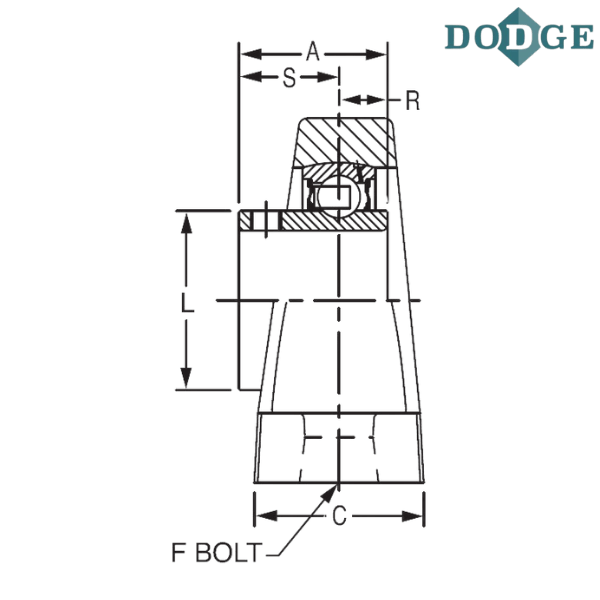

Length Through Bore (A) mm - 49.3

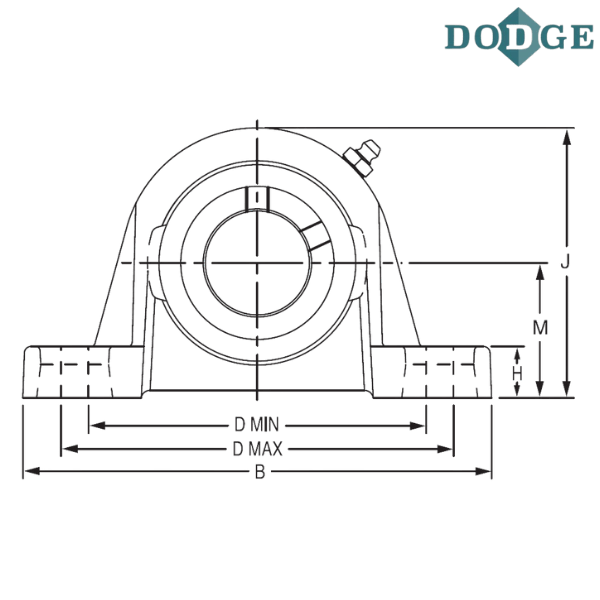

Overall Length (B) mm - 184.2
Width (C) mm - 49
Bolt to Bolt Minimum Distance (D min) mm - 131.6
Bolt to Bolt Maximum Distance (D max) mm - 149.4
F-Bolt Diameter - M12
G (mm) - 23.1
H (mm) - 23.6
Overall Height (J) mm - 106.4
L (mm) - 52.1
Base to Center Height (M) mm - 54
R (mm) - 19.1
S (mm) - 30.2

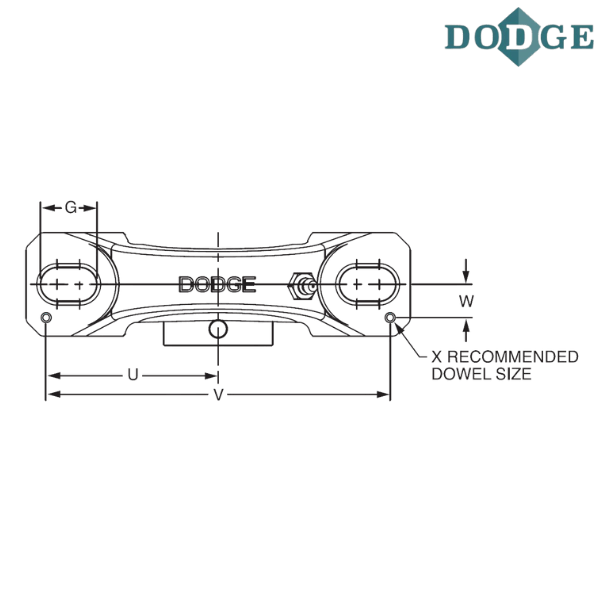

U (mm) - 82.8
V (mm) - 165.6
W (mm) - 17.5
X (mm) - 3

Notes :
P2B - 2-bolt base pillow block
SC - Wide inner ring, normal duty, 65° setscrew locking
M - Metric
HT - High Temperature

Lubricants - Lithium Complex Base Lubricant
Seals - The PROGUARD PLUS Seal
High Temperature - 225°F(108°C) to 400°F(205°C)
Air Handling - Supports for SC and SCM Air Handling Pillow Blocks and Flange Bearing
Housing Material - Stainless Steel and Polymer Coatings conform to U.S.D.A. and F.D.A. requirement.

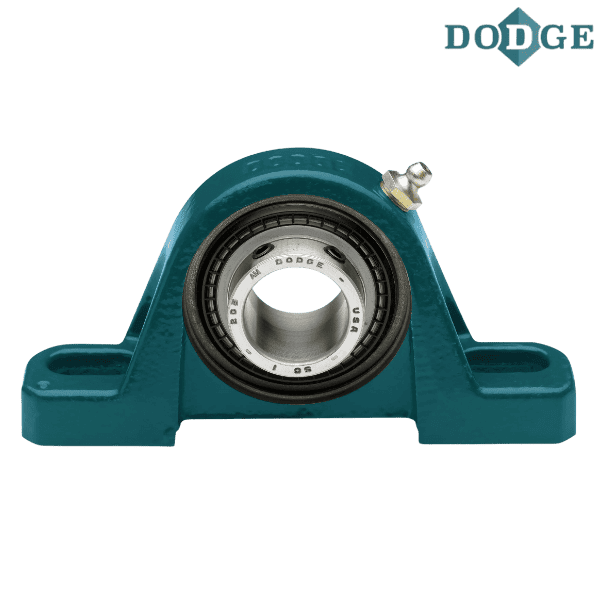

** Images are for representation purposes only
