Description
Brand - DODGE

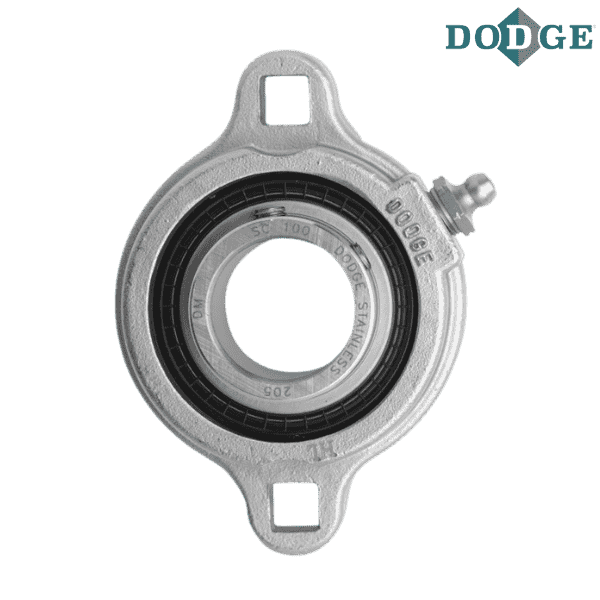

Item Number - 062525 DODGE - LFT-DL-015
Category - D-LOK® Ball Bearings (DL LFT Normal Duty 2-Bolt Flange Bearings)
Series - 205
Shaft Size (inch) - 0.9375
Description - LFT-DL-015
Weight (lbs) - 0.9

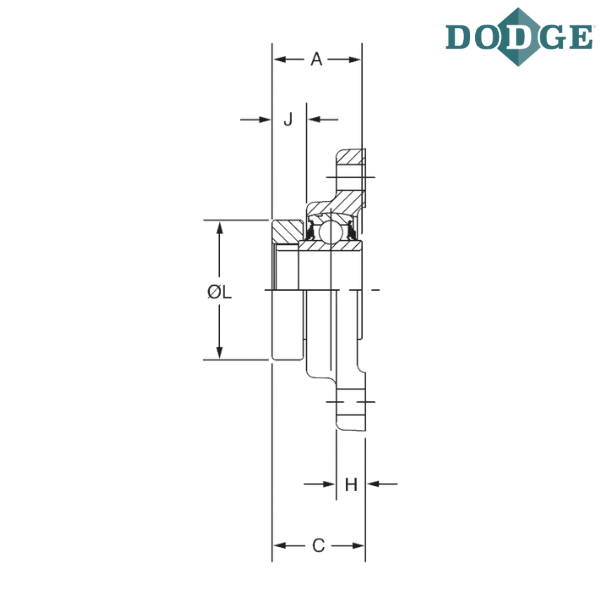

Length Through Bore (A) inch - 1.44

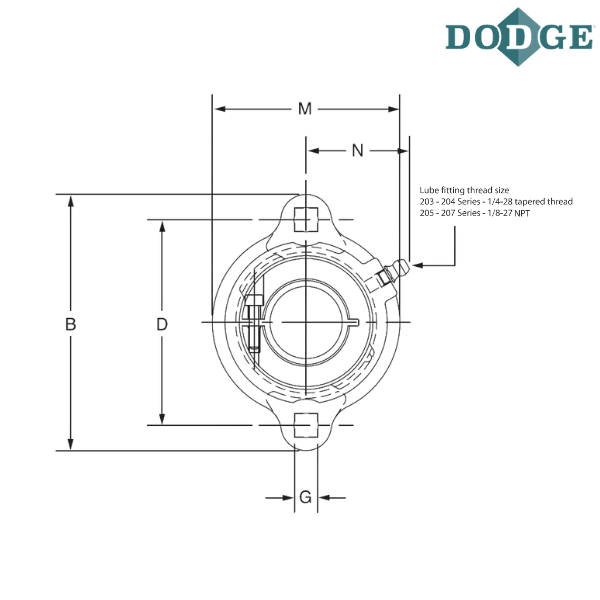

Overall Length (B) inch - 3.75
Thickness (C) inch - 1.35
Bolt Center to Center Length (D) inch - 3
G (inch) - 0.34
H (inch) - 0.42
J (inch) - 0.48
L (inch) - 1.99
Overall Width (M) inch - 2.63
N (inch) - 1.44
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
LFT - Light duty flange, 2-bolt, with square bolt holes
DL - Wide inner ring, normal duty, concentric clamp collar
** Images are for representation purposes only
