062187 DODGE - P2B-DLAH-215

Brand - DODGE
Item Number - 062187 DODGE - P2B-DLAH-215
Category - D-LOK® Ball Bearings (DLAH Normal Duty Air Handling Pillow Blocks)
Series - 215
Shaft Size (inch) - 2.9375
Shaft Size (mm) - 74.6125mm
Description - P2B-DLAH-215
Weight (lbs) - 24.9
-

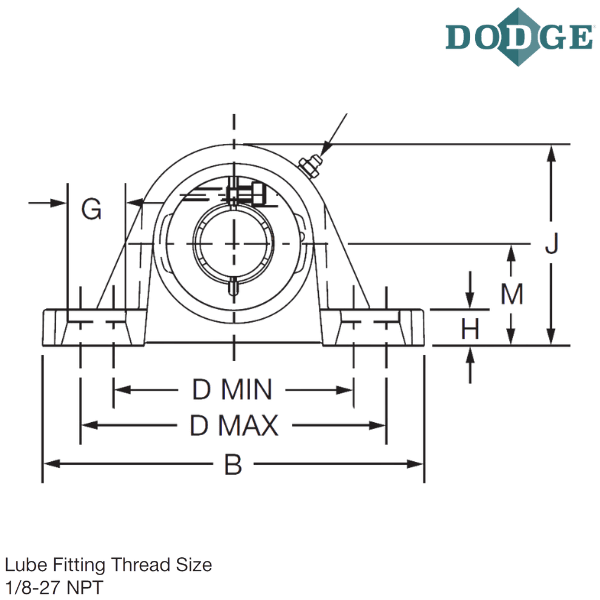

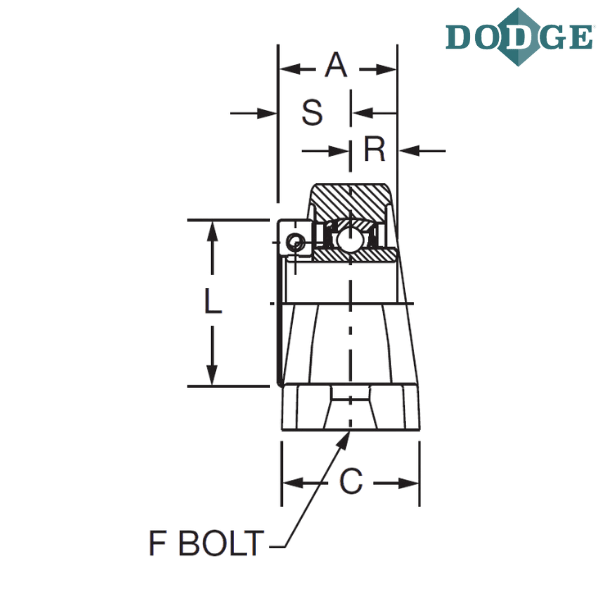

Length Through Bore (A) inch - 2.4
A (mm) - 61
Overall Length (B) inch - 11.75
B (mm) - 298.5
Width (C) inch - 2.88
C (mm) - 73.2
Bolt to Bolt Minimum Distance (D min) inch - 8.5
Minimum D (mm) - 215.9
Bolt to Bolt Maximum Distance (D max) inch - 9.5
Maximum D (mm) - 241.3
F-Bolt Diameter (inch) - 45511
Bolt Diameter (F) mm - M22
G (inch) - 1.44
G (mm) - 36.6
H (inch) - 1
H (mm) - 25.4
Overall Height (J) inch - 6.75
J (mm) - 171.5
L (inch) - 4.69
L (mm) - 119.1
Base to Center Height (M) inch - 3.5
M (mm) - 88.9
R (inch) - 0.82
R (mm) - 20.8
S (inch) - 1.58
S (mm) - 40.1

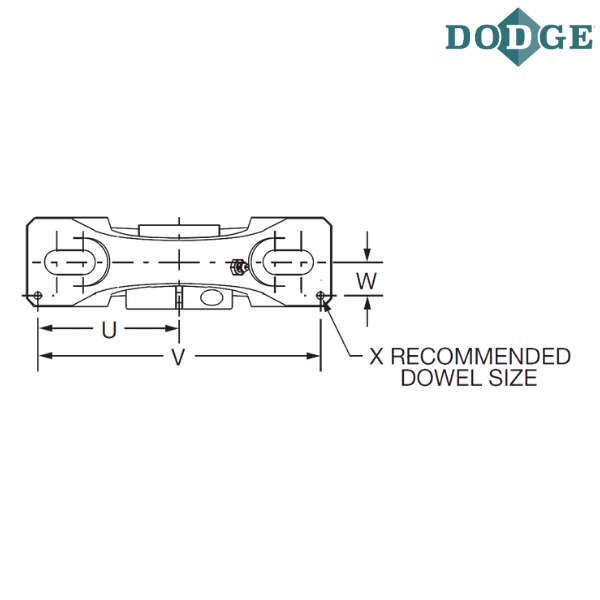

U (inch) - 5.48
U (mm) - 139.2
V (inch) - 10.96
V (mm) - 278.4
W (inch) - 1.04
W (mm) - 26.4
X (inch) - 0.12
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :

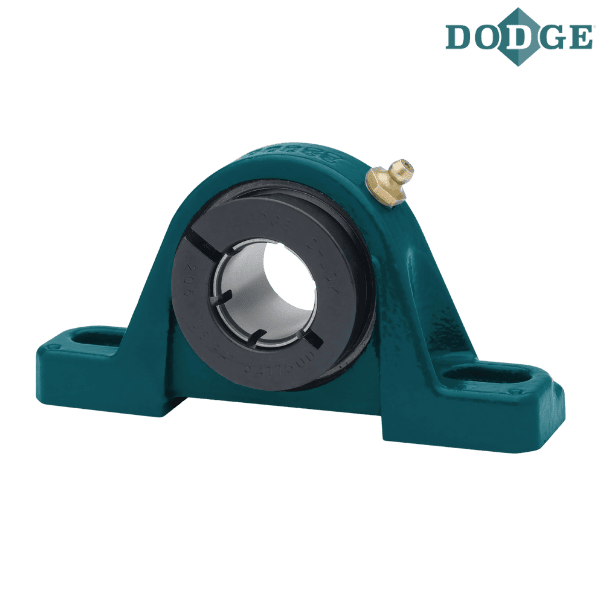

P2B - Pillow block, 2-bolt base
DL - Wide inner ring, normal duty, concentric clamp collar
AH - Air handling

** Images are for representation purposes only
