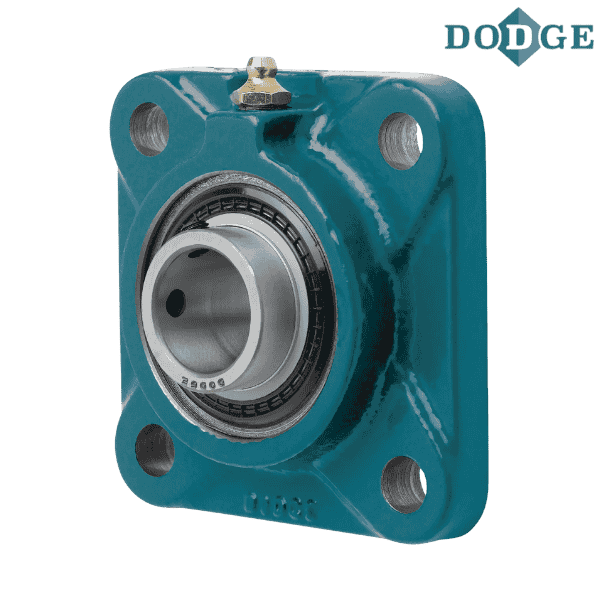

062182 DODGE - F4B-SCM-75M-HT

Brand - DODGE
Item Number - 062182 DODGE - F4B-SCM-75M-HT
Category - High Temperature Setscrew Ball Bearing (4-Bolt Flanges)
Series - 216
Description - F4B-SCM-75M-HT
Shaft Size (mm) - 75
Weight (kg) - 9.4

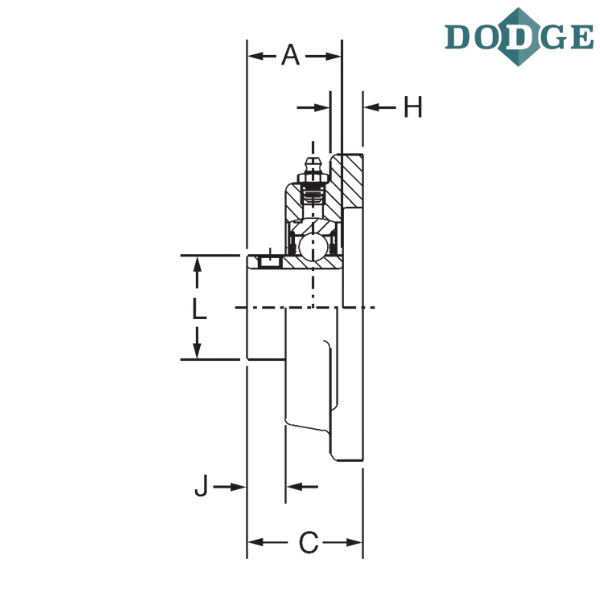

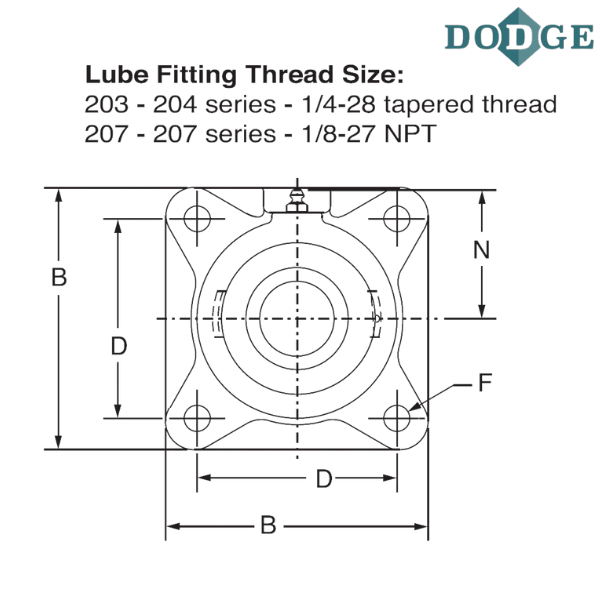

Length Through Bore (A) mm - 60.5
Overall Length (B) mm - 196.9
Thickness (C) mm - 78.5
Bolt Center to Center Length (D) mm - 152.4
F-Bolt Diameter - M18
H (mm) - 22.4
J (mm) - 15
L (mm) - 97.3
N (mm) - 103.9

Notes :
F4B - 4-bolt flange
SCM - Wide inner ring, medium duty, 65° setscrew locking
M - Metric
HT - High Temperature

Lubricants - Lithium Complex Base Lubricant
Seals - The PROGUARD PLUS Seal
High Temperature - 225°F(108°C) to 400°F(205°C)
Air Handling - Supports for SC and SCM Air Handling Pillow Blocks and Flange Bearing
Housing Material - Stainless Steel and Polymer Coatings conform to U.S.D.A. and F.D.A. requirement.

** Images are for representation purposes only
