062152 DODGE - F4B-DL-215

Brand - DODGE
Item Number - 062152 DODGE - F4B-DL-215
Category - D-LOK® Ball Bearings (DL Normal Duty 4-Bolt Flange Bearings)
Series - 215
Shaft Size (inch) - 2.9375
Description - F4B-DL-215
Description (No Lube/Sealed for Life) - F4B-DL-215-NL
Weight (lbs) - 18.8

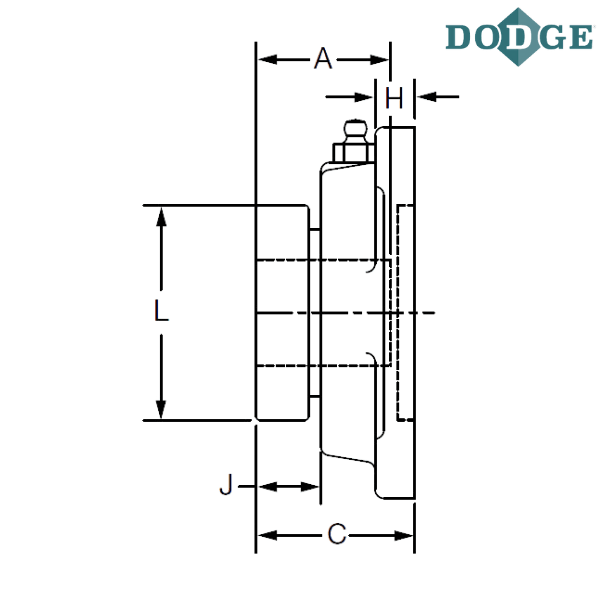

Length Through Bore (A) inch - 2.4
A (mm) - 61

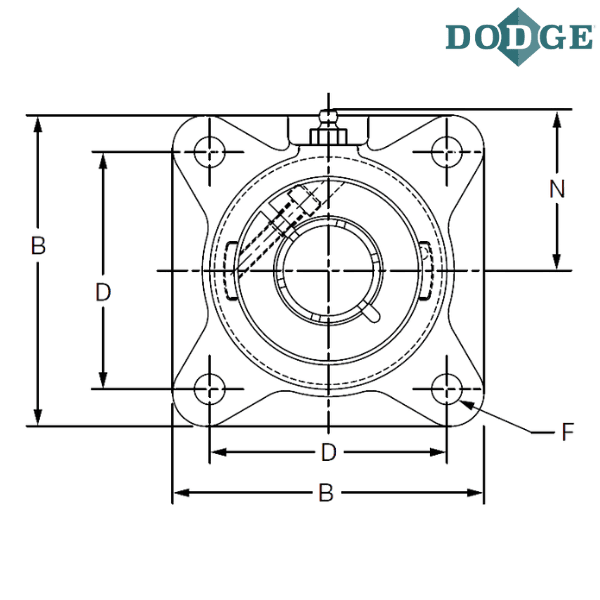

Overall Length (B) inch - 7.75
B (mm) - 196.9
Thickness (C) inch - 2.99
C (mm) - 75.9
Bolt Center to Center Length (D) inch - 6
D (mm) - 152.4
F-Bolt Diameter (inch) - 0.75
Bolt Diameter (F) mm - M18
H (inch) - 1
H (mm) - 25.4
J (inch) - 0.74
J (mm) - 18.8
L (inch) - 4.69
L (mm) - 119.1
N (inch) - 3.88
N (mm) - 98.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4B - 4-bolt flange
DL - Wide inner ring, normal duty, concentric clamp collar

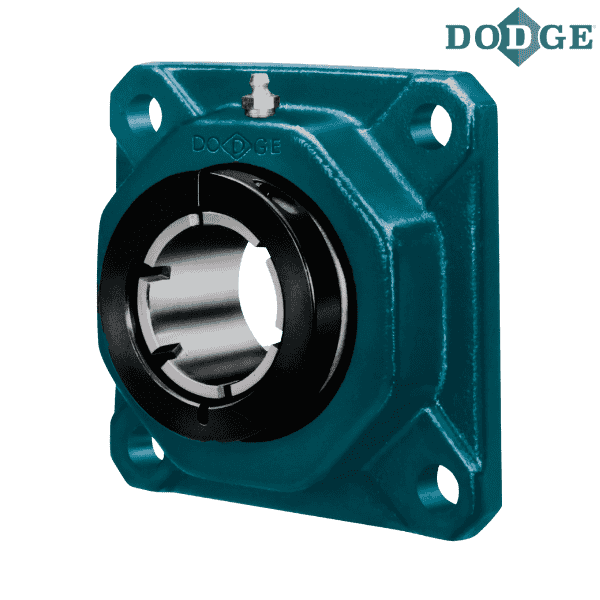

** Images are for representation purposes only
