Description
Brand - DODGE
Item Number - 061084 DODGE - HNG-C-207
Category - Type C Hanger Bearing (Gray Iron)
Shaft Size (inch) - 2.4375
Part Name - HNG-C-207
Approximate Weight (lbs) - 30

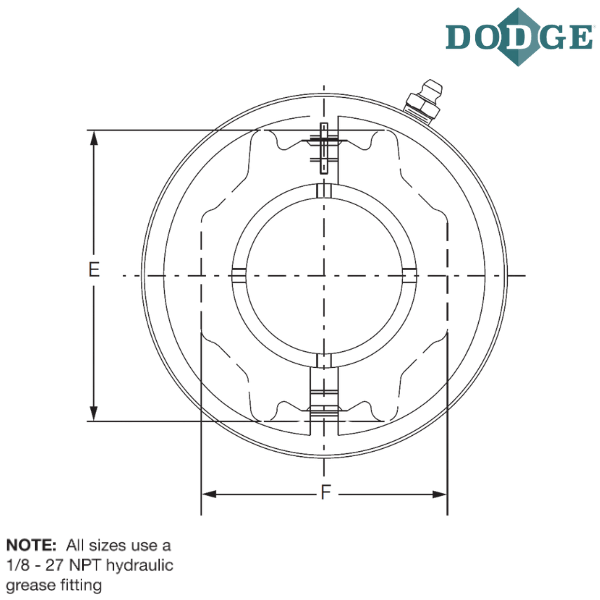

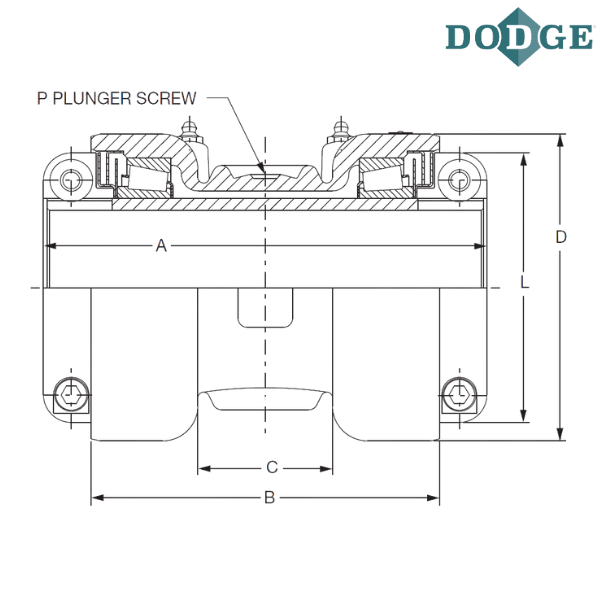

Length Through Bore (A) inch - 9.63
B (inch) - 7.63
C (inch) - 3
D (inch) - 5.38
E (inch) - 4.13
F (inch) - 3.5
L (inch) - 4.66
P (inch) - 0.625, 1.5
Maximum Speed - Available on Request
Notes :
HNG - Hanger Bearing, Cast Iron
C - Type C

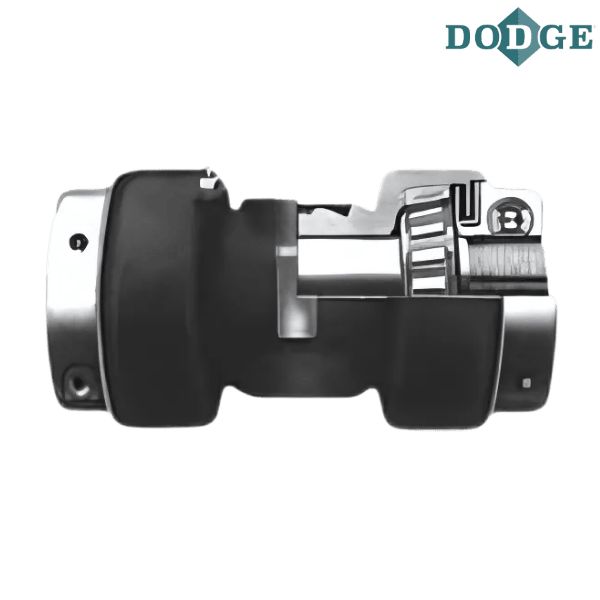

** Images are for representation purposes only
