059821 DODGE - F2B-SC-25M-HT

Brand - DODGE
Item Number - 059821 DODGE - F2B-SC-25M-HT
Category - High Temperature Setscrew Ball Bearing (2-Bolt Flanges)
Series - 205
Description - F2B-SC-25M-HT
Shaft Size (mm) - 25
Weight (kg) - 0.6

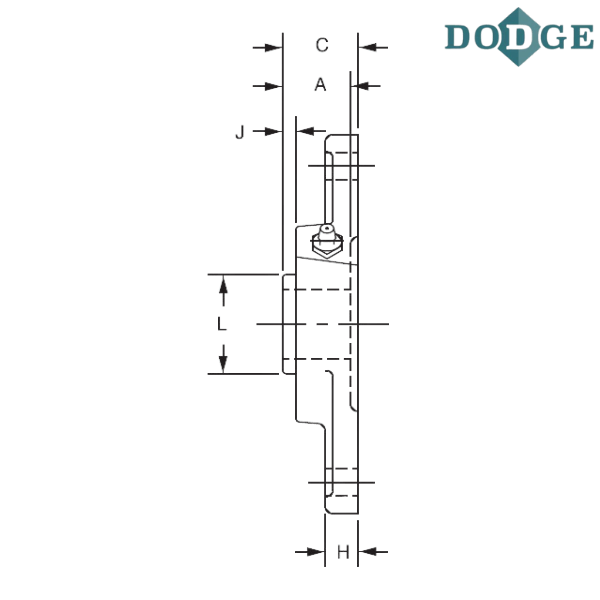

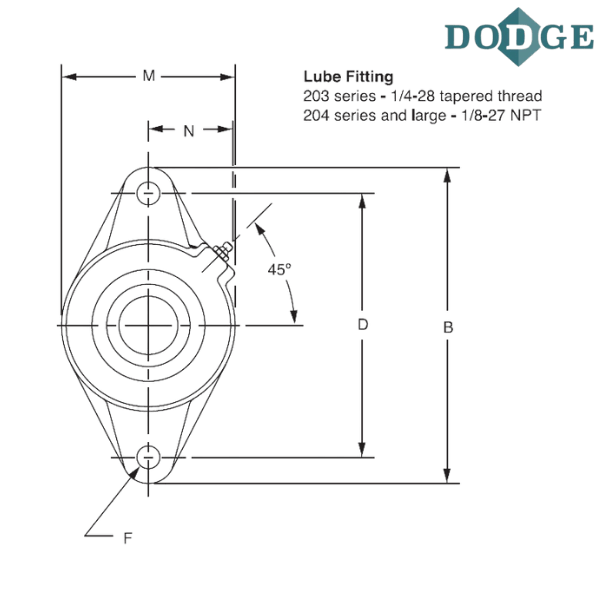

Length Through Bore (A) mm - 34
Overall Length (B) mm - 124
Thickness (C) mm - 34.8
Bolt Center to Center Length (D) mm - 98.8
F-Bolt Diameter - M10
H (mm) - 13.2
J (mm) - 10.7
L (mm) - 33.5
Overall Width (M) mm - 69.9
N (mm) - 36.6

Notes :
F2B - 2 bolt flange
SC - Wide inner ring, normal duty, 65° setscrew locking
M - Metric
HT - High Temperature

Lubricants - Lithium Complex Base Lubricant
Seals - The PROGUARD PLUS Seal
High Temperature - 225°F(108°C) to 400°F(205°C)
Air Handling - Supports for SC and SCM Air Handling Pillow Blocks and Flange Bearing
Housing Material - Stainless Steel and Polymer Coatings conform to U.S.D.A. and F.D.A. requirement.

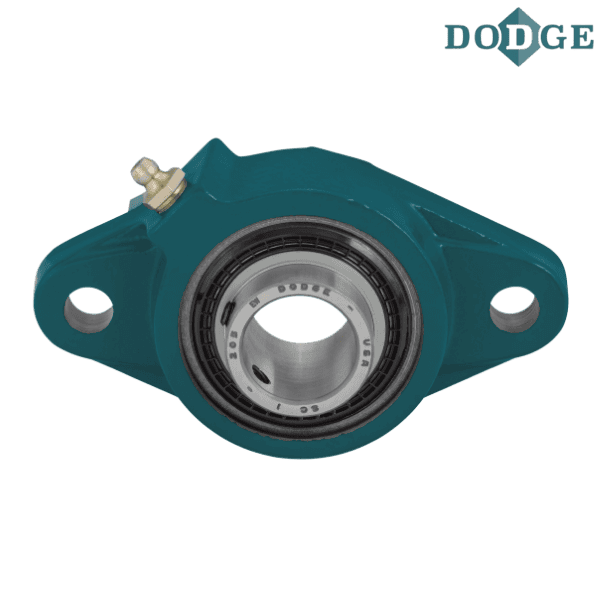

** Images are for representation purposes only
