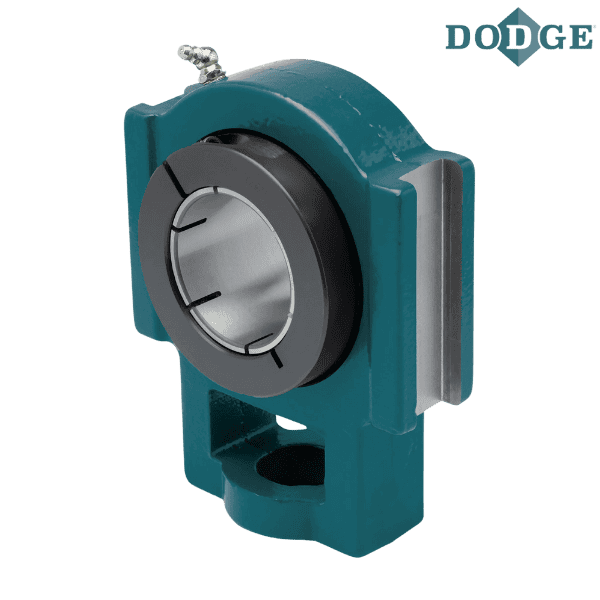

058647 DODGE - WSTU-DLM-200

Brand - DODGE
Item Number - 058647 DODGE - WSTU-DLM-200
Category - D-LOK® Ball Bearings (DL Normal Duty Wide Slot Take-Up Bearings)
Series - 211
Shaft Size (inch) - 2
Description - WSTU-DLM-200
Weight (lbs) - 10.1
Take- Up Frame Size - WS502

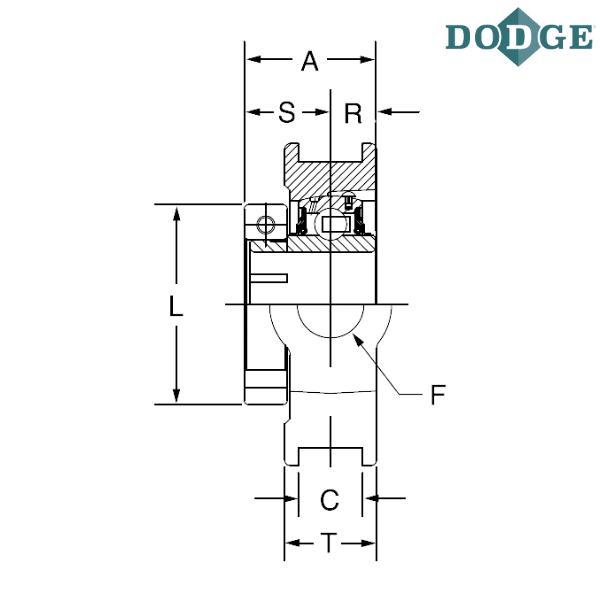

Length Through Bore (A) inch - 2.25

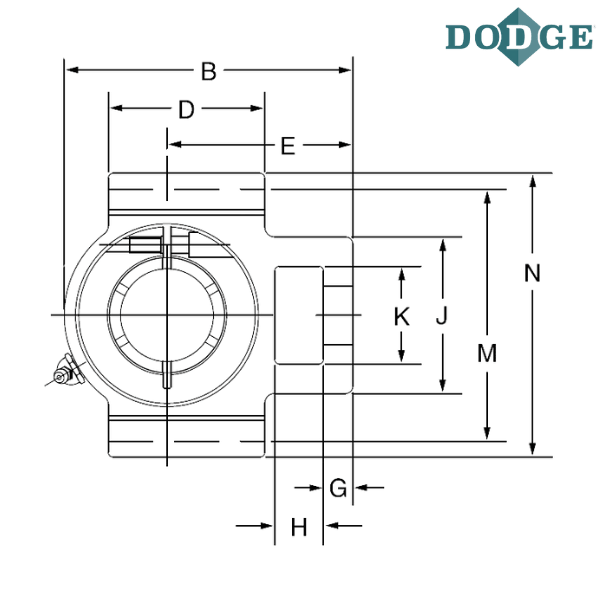

Overall Length (B) inch - 6.69
C (inch) - 1.063
D (inch) - 3.75
E (inch) - 4.19
F (Screw Diameter) inch - 1.25
G (inch) - 0.75
H (inch) - 1
J (inch) - 4
K (inch) - 2.5
L (inch) - 3.69
M (inch) - 5.110/5.140
Overall Width (N) inch - 5.88
R (inch) - 0.88
S (inch) - 1.37
T (inch) - 2.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
DLM - Wide inner ring, medium duty, concentric clamp collar

** Images are for representation purposes only
