058081 DODGE - NSTU-DLM-111

Brand - DODGE
Item Number - 058081 DODGE - NSTU-DLM-111
Category - D-LOK® Ball Bearings (DLM Medium Duty Narrow Slot Take-Up Bearings)
Series - 210
Shaft Size (inch) - 1.6875
Description - NSTU-DLM-111
Weight (lbs) - 4.9
Take-Up Frame Size - NS400

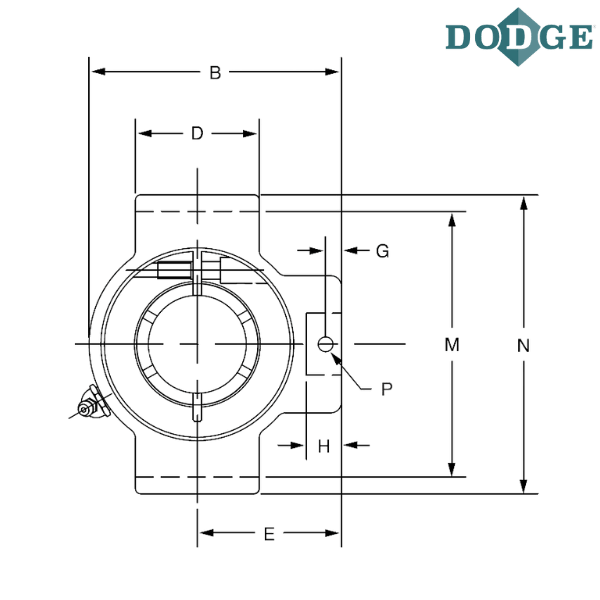

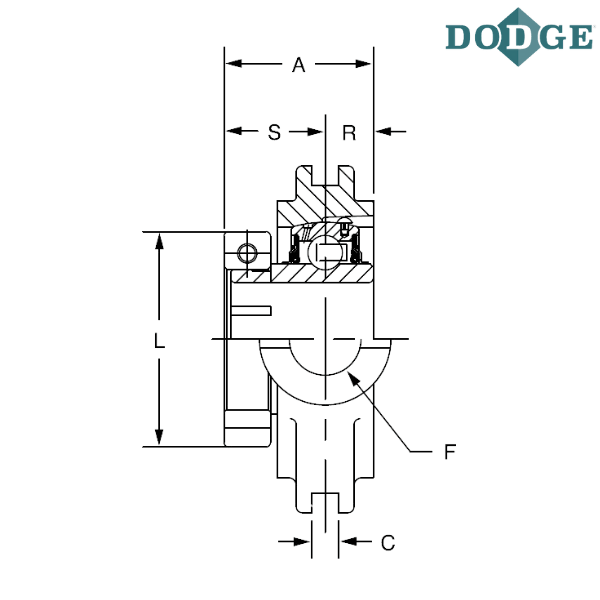

Length Through Bore (A) inch - 2.01
Overall Length (B) inch - 5.5
C (inch) - 0.313
D (inch) - 3
E (inch) - 3.25
F (Screw Diameter) inch - 0.875
G (inch) - 0.59
H (inch) - 1.09
J (inch) - 1.63
L (inch) - 3.24
M (inch) - 4.015/3.985
Overall Width (N) inch - 4.75
Pin Diameter (P) inch - 0.38
R (inch) - 0.75
S (inch) - 1.26
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
NSTU - Narrow slot take-up
DLM - Wide inner ring, medium duty, concentric clamp collar

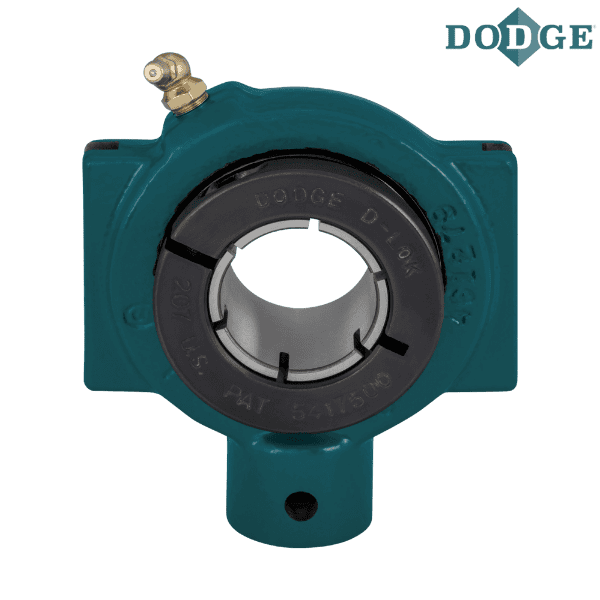

** Images are for representation purposes only
