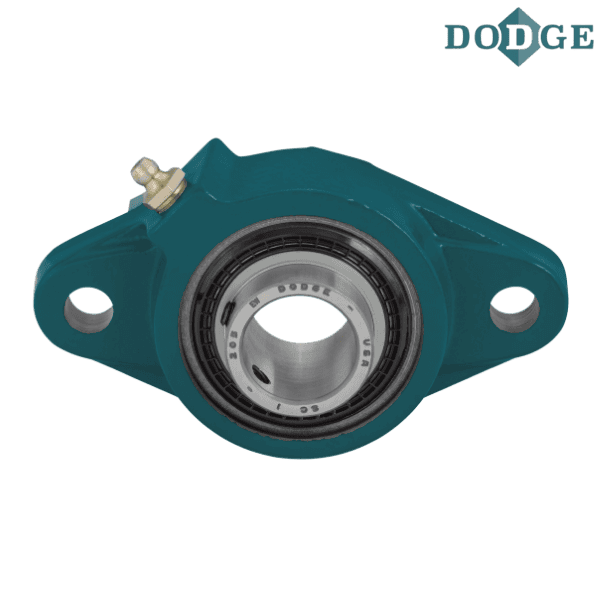

057800 DODGE - F2B-SC-60M-HT

Brand - DODGE
Item Number - 057800 DODGE - F2B-SC-60M-HT
Category - High Temperature Setscrew Ball Bearing (2-Bolt Flanges)
Series - 212
Description - F2B-SC-60M-HT
Shaft Size (mm) - 60
Weight (kg) - 3.4

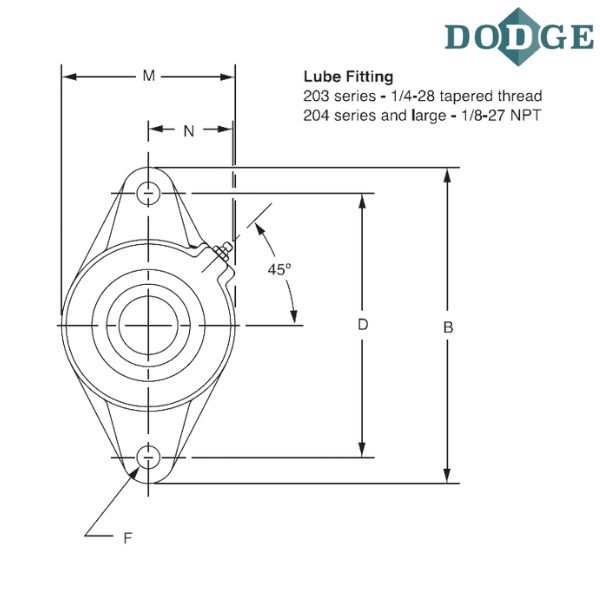

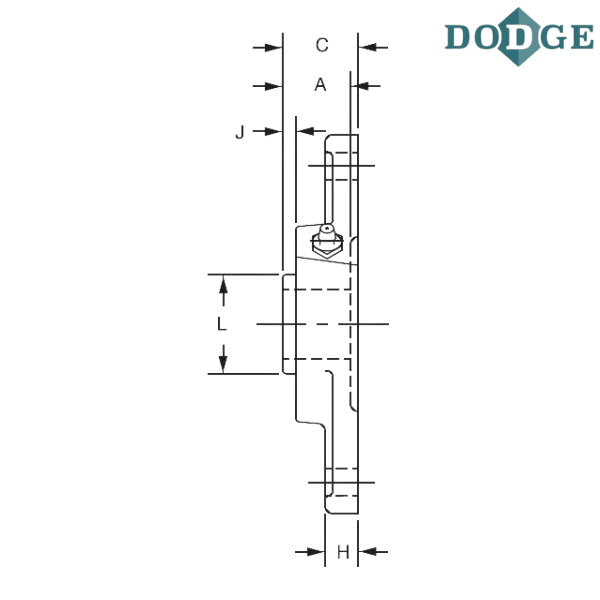

Length Through Bore (A) mm - 58.7
Overall Length (B) mm - 249.2
Thickness (C) mm - 60.5
Bolt Center to Center Length (D) mm - 202.1
F-Bolt Diameter - M22
H (mm) - 20.6
J (mm) - 16.8
L (mm) - 75.4
Overall Width (M) mm - 139.7
N (mm) - 62.7

Notes :
F2B - 2 bolt flange
SC - Wide inner ring, normal duty, 65° setscrew locking
M - Metric
HT - High Temperature

Lubricants - Lithium Complex Base Lubricant
Seals - The PROGUARD PLUS Seal
High Temperature - 225°F(108°C) to 400°F(205°C)
Air Handling - Supports for SC and SCM Air Handling Pillow Blocks and Flange Bearing
Housing Material - Stainless Steel and Polymer Coatings conform to U.S.D.A. and F.D.A. requirement.

** Images are for representation purposes only
