Description
Brand - DODGE
Item Number - 056890 DODGE - LF-DL-100
Category - D-LOK® Ball Bearings (DL LFT Normal Duty 3-Bolt Flange Bearings)
Series - 205
Shaft Size (inch) - 1
Description - LF-DL-100
Weight (lbs) - 1

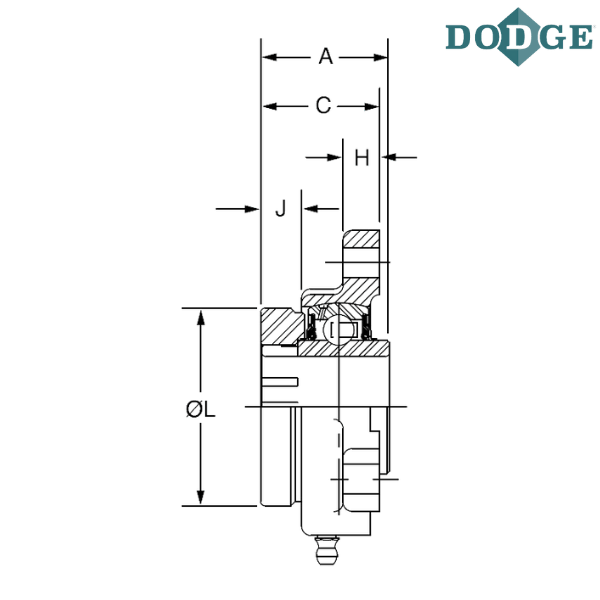

Length Through Bore (A) mm - 36.6
B (mm) - 95.3
C (mm) - 34.3
Bolt Circle (D) mm - 76.2
Bolt Diameter (G) mm - 8.6
H (mm) - 10.7
J (mm) - 12.2
L (mm) - 50.5
M (mm) - 47.8
N (mm) - 43.2
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
LF - Light duty flange, 3-bolt, with square bolt holes
DL - Wide inner ring, normal duty, concentric clamp collar

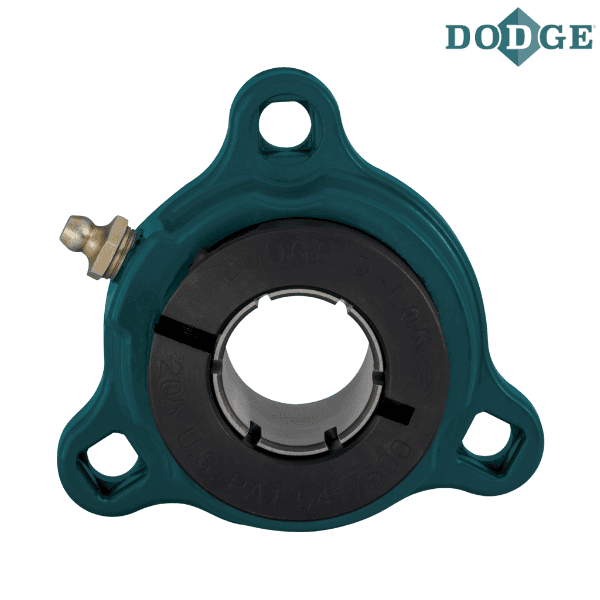

** Images are for representation purposes only
