056862 DODGE - F2B-SXR-55M

Brand - DODGE
Item Number - 056862 DODGE - F2B-SXR-55M
Category - Eccentric Collar Ball Bearings (SXR Normal Duty 2-Bolt Flange Bearings)
Series - 211
Shaft Size (mm) - 55
Description - F2B-SXR-55M
Description (No Lube/Sealed for Life) - F2B-SXR-55M-NL
Description (With Flingers) - F2B-SXR-55M-FF
Weight (kg) - 3.5

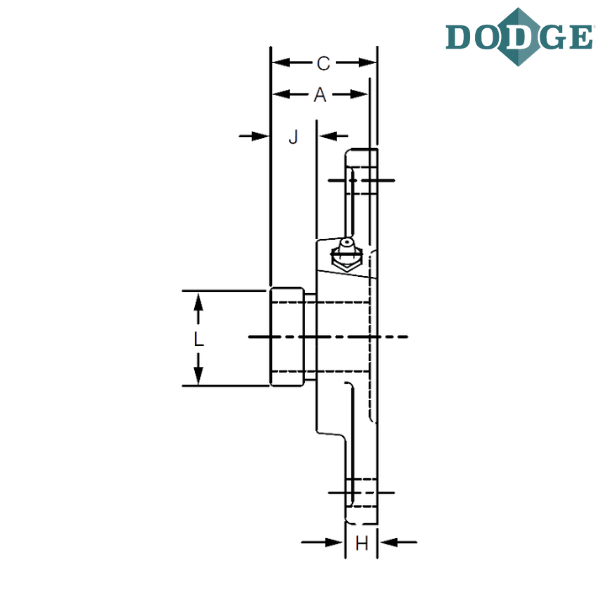

Length Through Bore (A) mm - 65.8

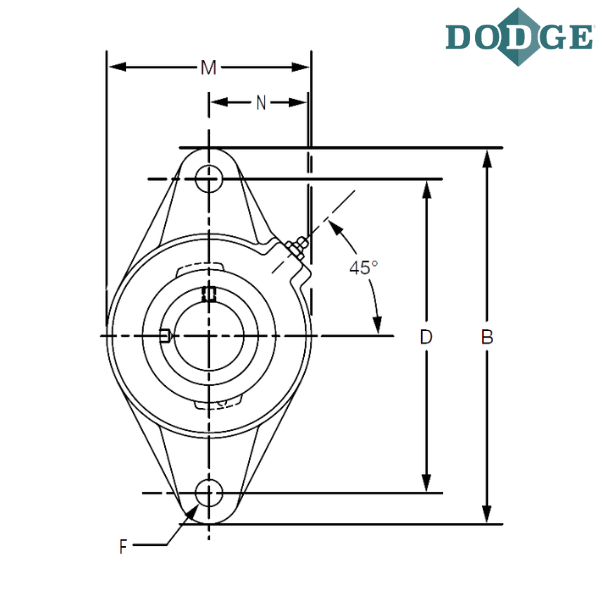

Overall Length (B) mm - 219.2
Thickness (C) mm - 67.3
Bolt Center to Center Length (D) mm - 184.2
F-Bolt Diameter - M16
H (mm) - 17
J (mm) - 26.7
L (mm) - 76.2
Overall Width (M) mm - 133.4
N (mm) - 57.7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2 bolt flange
SXR - Wide inner ring, normal duty, Eccentric locking Collar
M - Metric

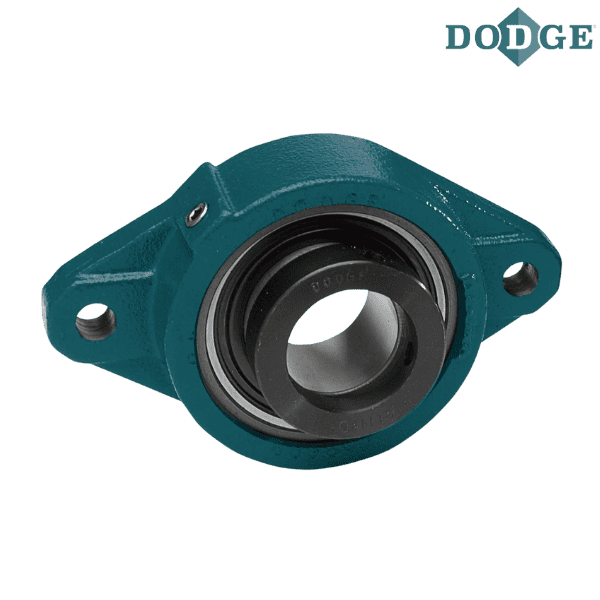

** Images are for representation purposes only
