056676 DODGE - P2B-DLH-200-E

Brand - DODGE
Item Number - 056676 DODGE - P2B-DLH-200-E
Category - D-LOK® Ball Bearings (DLH-E Expansion and DLH Non-Expansion Normal Duty Pillow Blocks)
Series - 210
Shaft Size (inch) - 2
Description - P2B-DLH-200-E
Part Number (Non-Expansion) - 128830
Description (Non-Expansion) - P2B-DLM-200
Weight (lbs) - 10.8

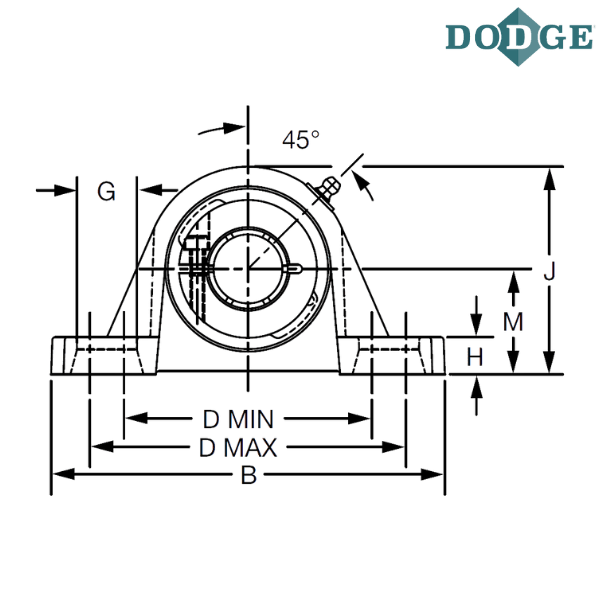

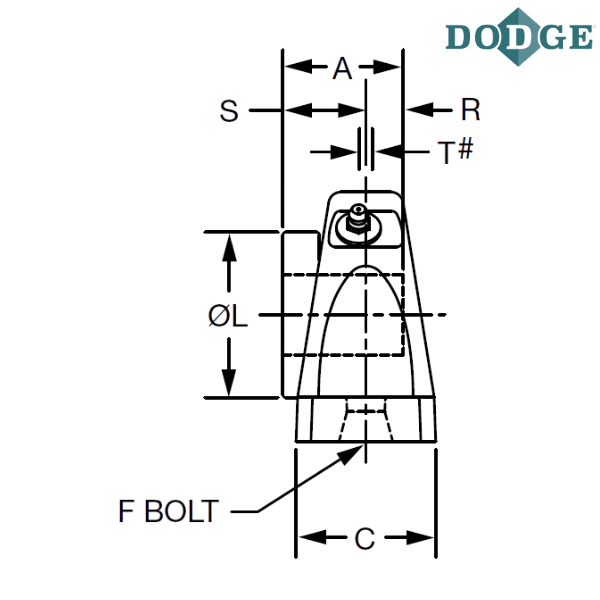

Length Through Bore (A) inch - 2.01
Overall Length (B) inch - 8.88
Width (C) inch - 2.3
Bolt to Bolt Minimum Distance (D min) inch - 6.38
Bolt to Bolt Maximum Distance (D max) inch - 7.44
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.21
H (inch) - 0.88
Overall Height (J) inch - 4.96
L (inch) - 3.24
Base to Center Height (M) inch - 2.5
R (inch) - 0.75
S (inch) - 1.26
Total Expansion (T) inch - 0.22

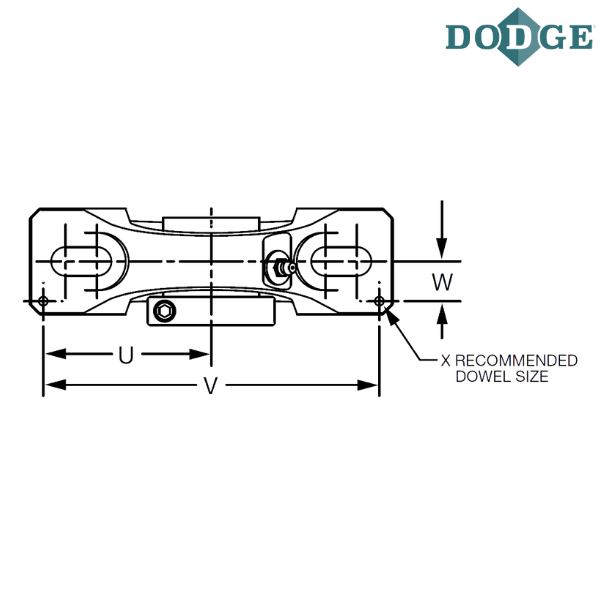

U (inch) - 3.94
V (inch) - 7.88
W (inch) - 0.81
X (inch) - 0.12
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2-bolt base
DL - Wide inner ring, normal duty, concentric clamp collar
H - High backing height
E - Expansion

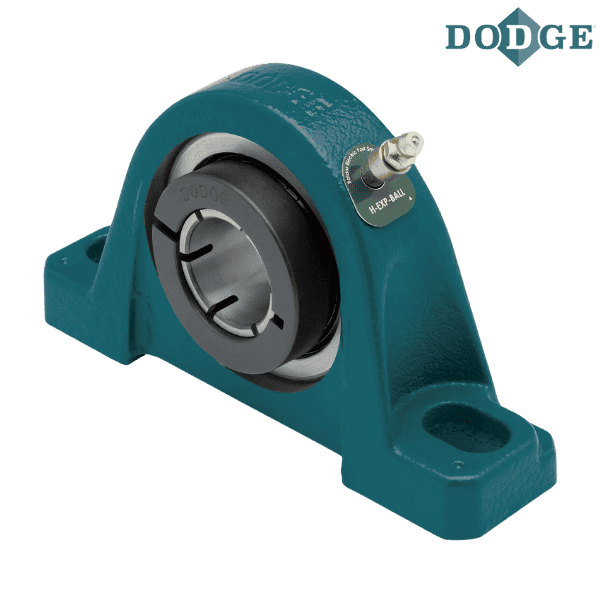

** Images are for representation purposes only
