Description
Brand - DODGE

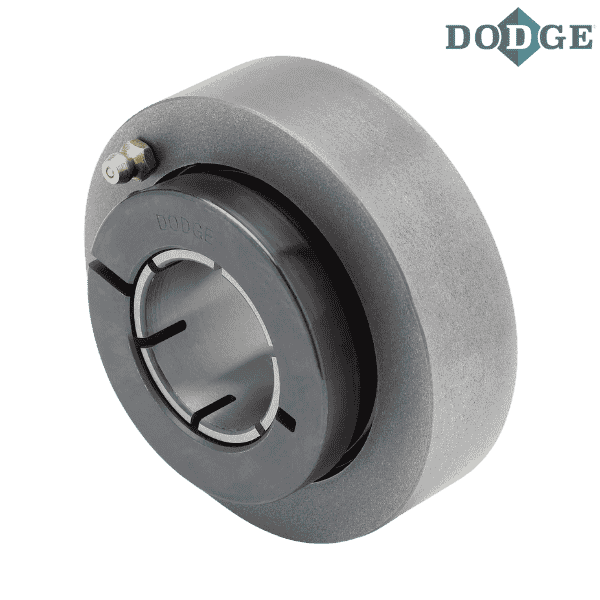

Item Number - 056468 DODGE - CYL-DL-30M
Category - D-LOK® Ball Bearings (DL Normal Duty Cylindrical Units)
Series - 206
Shaft Size (mm) - 30mm
Description - CYL-DL-30M
Weight (kg) - 6.5

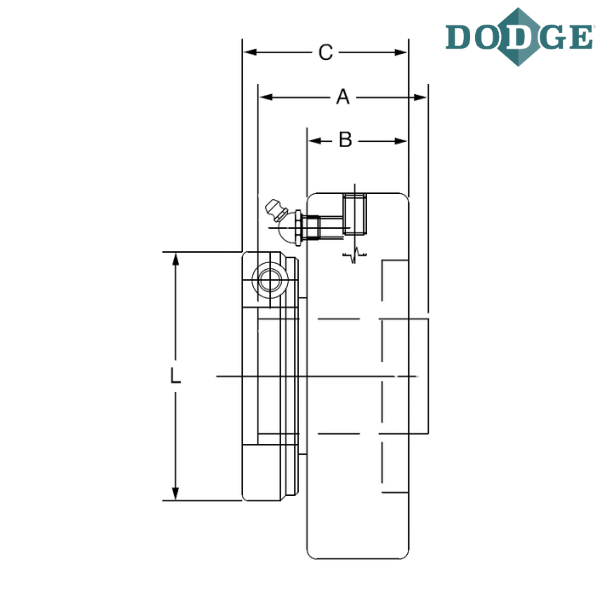

Length Through Bore (A) mm - 39.6
B (mm) - 23.9
C (mm) - 36.1

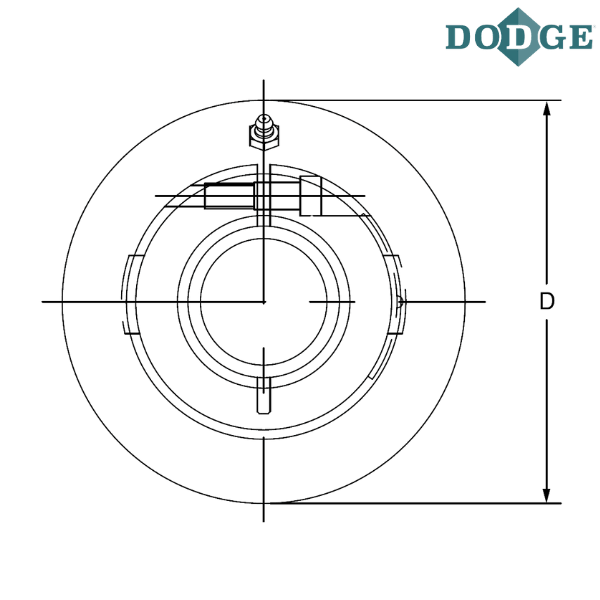

Overall Outer Diameter (D) mm - 88.90/88.85
L (mm) - 56.4
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
CYL - Cylindrical unit
DL - Wide inner ring, normal duty, concentric clamp collar
M - Metric
** Images are for representation purposes only
