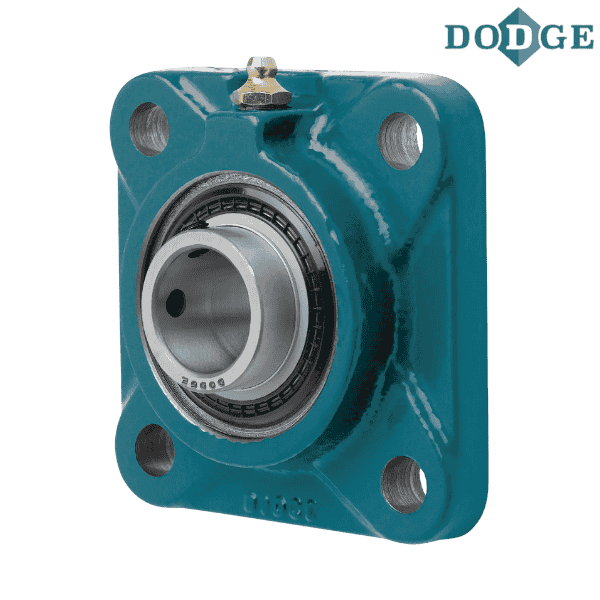

054534 DODGE - F4B-SC-30M-HT

Brand - DODGE
Item Number - 054534 DODGE - F4B-SC-30M-HT
Category - High Temperature Setscrew Ball Bearing (4-Bolt Flanges)
Series - 206
Description - F4B-SC-30M-HT
Shaft Size (mm) - 30
Weight (kg) - 1.3

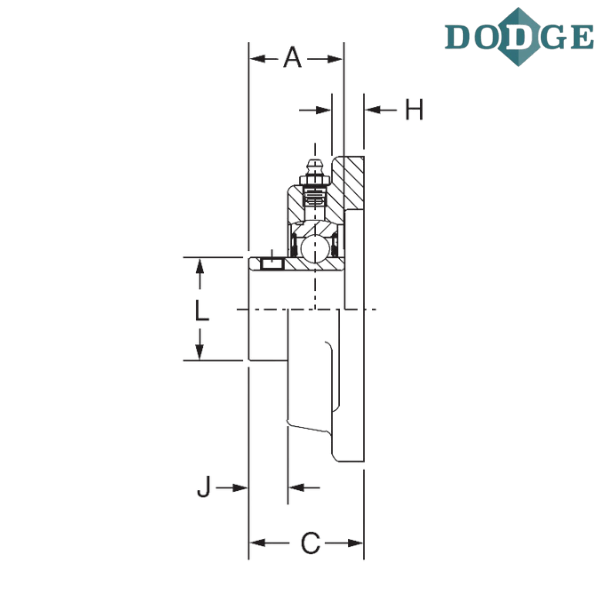

Length Through Bore (A) mm - 38.6

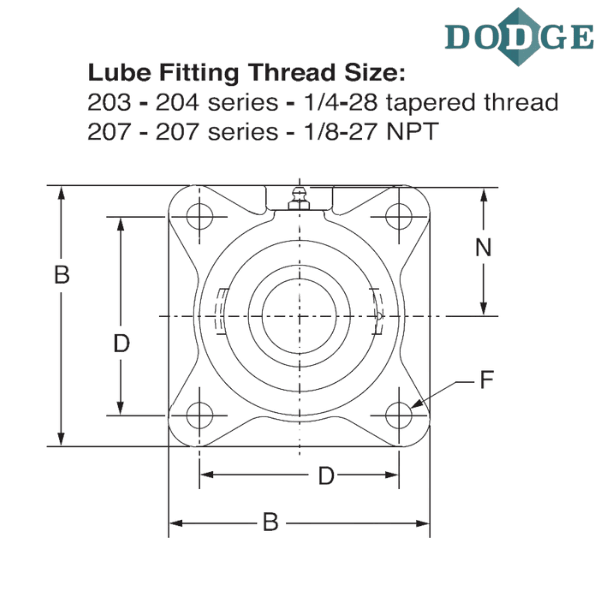

Overall Length (B) mm - 108
Thickness (C) mm - 39.6
Bolt Center to Center Length (D) mm - 82.6
F-Bolt Diameter - M10
H (mm) - 12.7
J (mm) - 12.4
L (mm) - 39.9
N (mm) - 55.6

Notes :
F4B - 4-bolt flange
SC - Wide inner ring, normal duty, 65° setscrew locking
M - Metric
HT - High Temperature

Lubricants - Lithium Complex Base Lubricant
Seals - The PROGUARD PLUS Seal
High Temperature - 225°F(108°C) to 400°F(205°C)
Air Handling - Supports for SC and SCM Air Handling Pillow Blocks and Flange Bearing
Housing Material - Stainless Steel and Polymer Coatings conform to U.S.D.A. and F.D.A. requirement.

** Images are for representation purposes only
