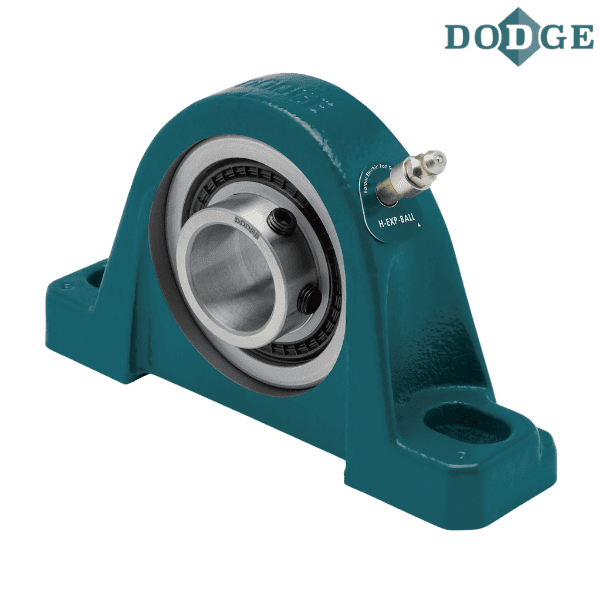

053021 DODGE - P2B-SCH-30M-E

Brand - DODGE
Item Number - 053021 DODGE - P2B-SCH-30M-E
Category - Setscrew Ball Bearings (SCH-E Expansion Normal Duty Pillow Blocks)
Series - 206
Shaft Size (mm) - 30
Description - P2B-SCH-30M-E
Part Number (Non-Expansion) - 125926
Description (Non-Expansion) - P2B-SCM-30M
Weight (kg) - 1.9

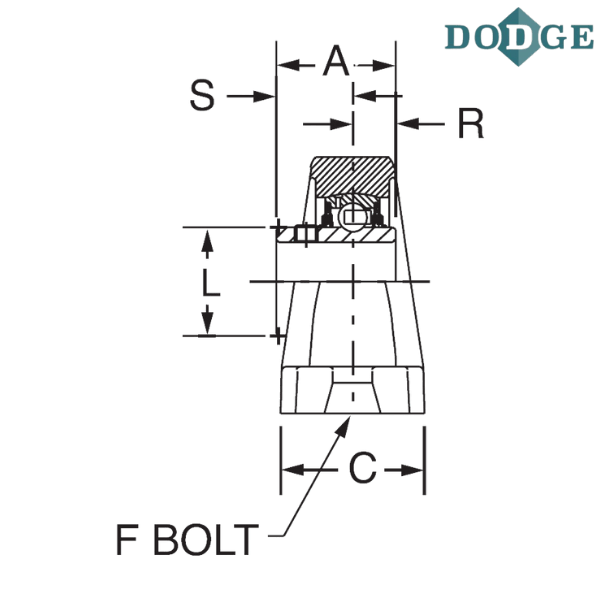

Length Through Bore (A) mm - 38.6

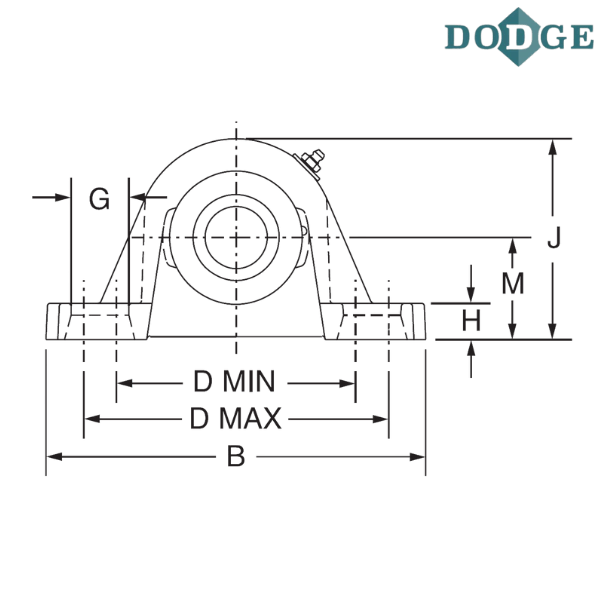

Overall Length (B) mm - 165.1
Width (C) mm - 44.5
Bolt to Bolt Minimum Distance (D min) mm - 118.9
Bolt to Bolt Maximum Distance (D max) mm - 138.2
F-Bolt Diameter - M12
G (mm) - 23.9
H (mm) - 18
Overall Height (J) mm - 95.3
L (mm) - 39.9
Base to Center Height (M) mm - 47.8
R (mm) - 14.7
S (mm) - 23.9
Total Expansion (T) mm - 4.1

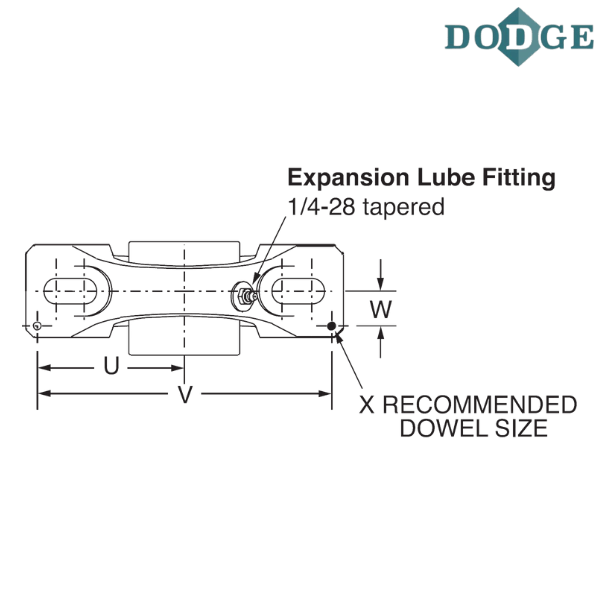

U (mm) - 73.9
V (mm) - 147.8
W (mm) - 14.2
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
SC - Wide inner ring, normal duty, 65° setscrew locking
H - High backing height
M - Metric
E - Expansion

** Images are for representation purposes only
