Description
Brand - DODGE
Item Number - 053011 DODGE - TB-DL-014
Category - D-LOK® Ball Bearings (DL Normal Duty Tapped Base Pillow Blocks)
Series - 205
Shaft Size (inch) - 0.875
Description - TB-DL-014
Weight (lbs) - 2.1

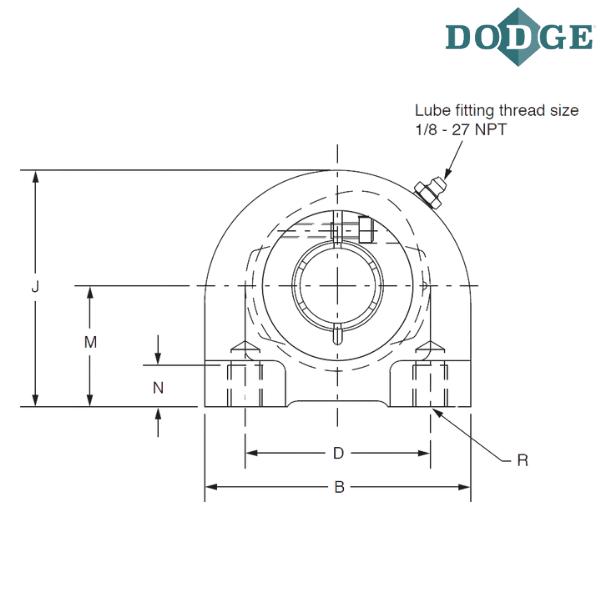

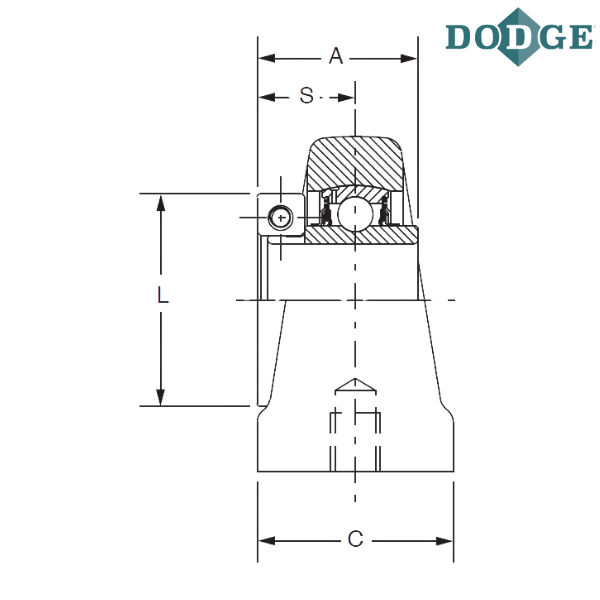

Length Through Bore (A) inch - 1.44
Overall Length (B) inch - 3
Width (C) inch - 1.5
Bolt Center to Center Length (D) inch - 2
Overall Height (J) inch - 2.81
L (inch) - 1.99
Base to Center Height (M) inch - 1.44
Minimum Tap Depth (N) inch - 0.5
Bolt Hole UNC-Thread (R) inch - 0.375-16
S (inch) - 0.88
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TB - Tapped base pillow block
DL - Wide inner ring, normal duty, concentric clamp collar

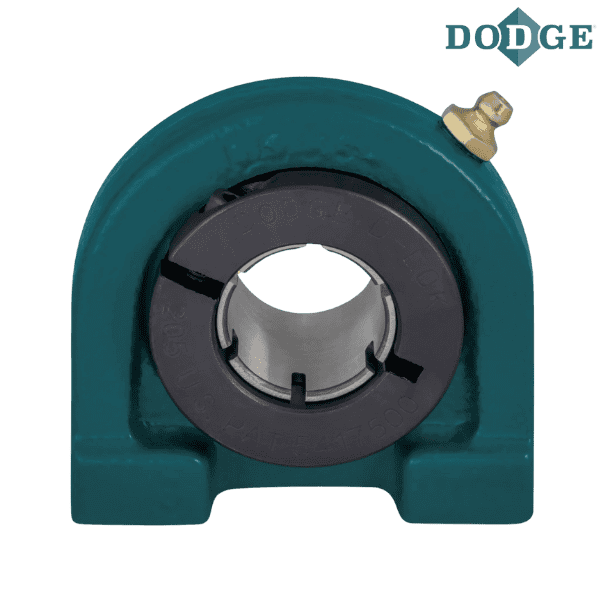

** Images are for representation purposes only
