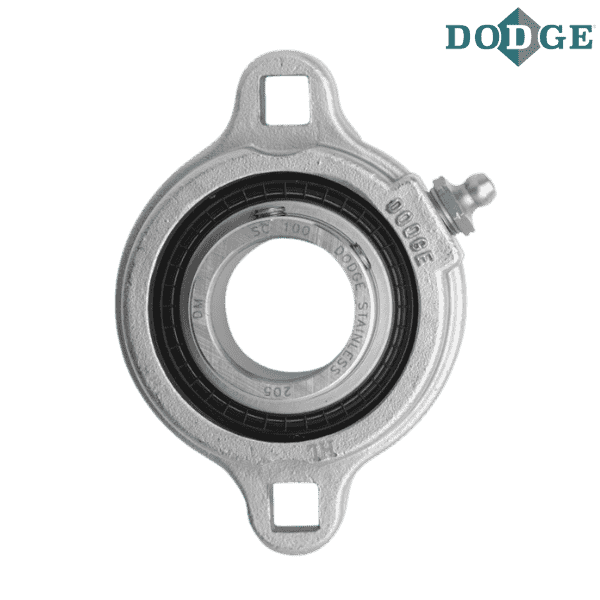

052668 DODGE - LFT-DL-100

Brand - DODGE
Item Number - 052668 DODGE - LFT-DL-100
Category - D-LOK® Ball Bearings (DL LFT Normal Duty 2-Bolt Flange Bearings)
Series - 205
Shaft Size (inch) - 1
Description - LFT-DL-100
Weight (lbs) - 0.85

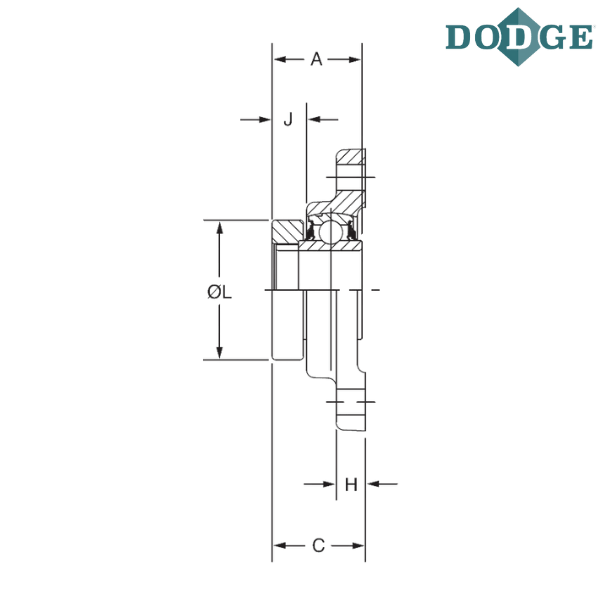

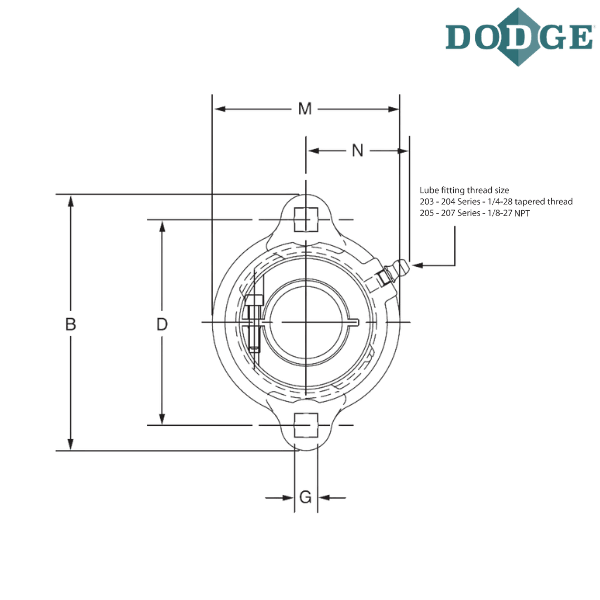

Length Through Bore (A) inch - 36.6
Overall Length (B) mm - 95.3
Thickness (C) mm - 34.3
Bolt Center to Center Length (D) mm - 76.2
G (mm) - 8.6
H (mm) - 10.7
J (mm) - 12.2
L (mm) - 50.5
Overall Width (M) mm - 66.8
N (mm) - 36.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
LFT - Light duty flange, 2-bolt, with square bolt holes
DL - Wide inner ring, normal duty, concentric clamp collar

** Images are for representation purposes only
