052618 DODGE - F2B-SC-012-HT

Brand - DODGE
Item Number - 052618 DODGE - F2B-SC-012-HT
Category - High Temperature Setscrew Ball Bearing (2-Bolt Flanges)
Series - 204
Description - F2B-SC-012-HT
Shaft Size (inch) - 0.75
Weight (lbs) - 1.4

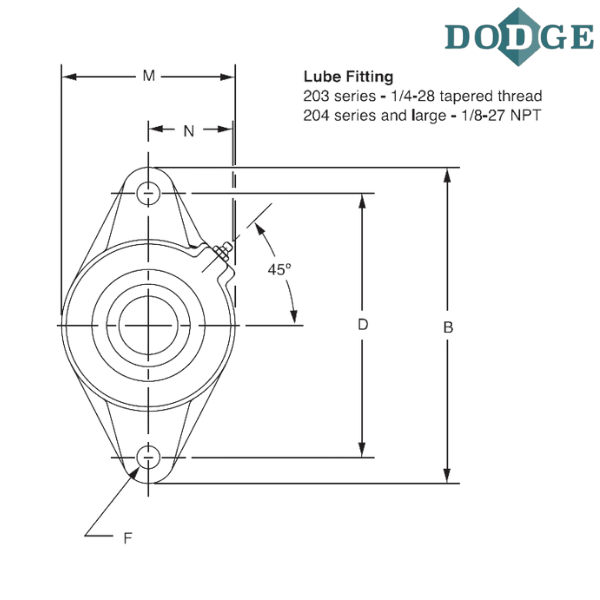

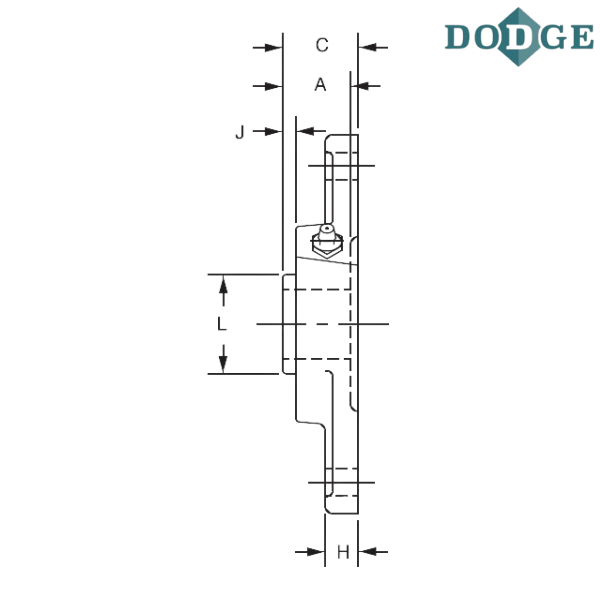

Length Through Bore (A) inch - 1.23
Overall Length (B) inch - 4.41
Thickness (C) inch - 1.34
Bolt Center to Center Length (D) inch - 3.53
F-Bolt Diameter (inch) - 0.375
H (inch) - 0.5
J (inch) - 0.36
L (inch) - 1.12
Overall Width (M) inch - 2.38
N (inch) - 1.5

Notes :
F2B - 2 bolt flange
SC - Wide inner ring, normal duty, 65° setscrew locking
HT - High Temperature

Lubricants - Lithium Complex Base Lubricant
Seals - The PROGUARD PLUS Seal
High Temperature - 225°F(108°C) to 400°F(205°C)
Air Handling - Supports for SC and SCM Air Handling Pillow Blocks and Flange Bearing
Housing Material - Stainless Steel and Polymer Coatings conform to U.S.D.A. and F.D.A. requirement.

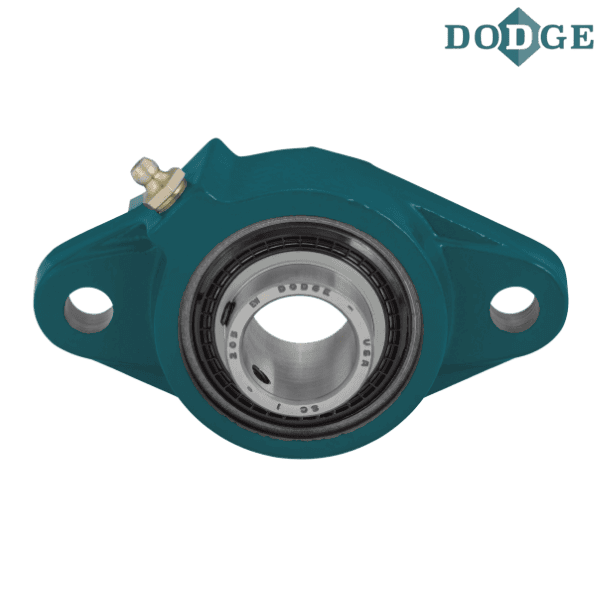

** Images are for representation purposes only
