Description
Brand - DODGE
Item Number - 052567 DODGE - FC-SXR-207
Category - Eccentric Collar Ball Bearings (SXR Normal Duty Piloted Flange Bearings)
Series - 212
Shaft Size (inch) - 2.4375
Description - FC-SXR-207
Weight (lbs) - 10.5

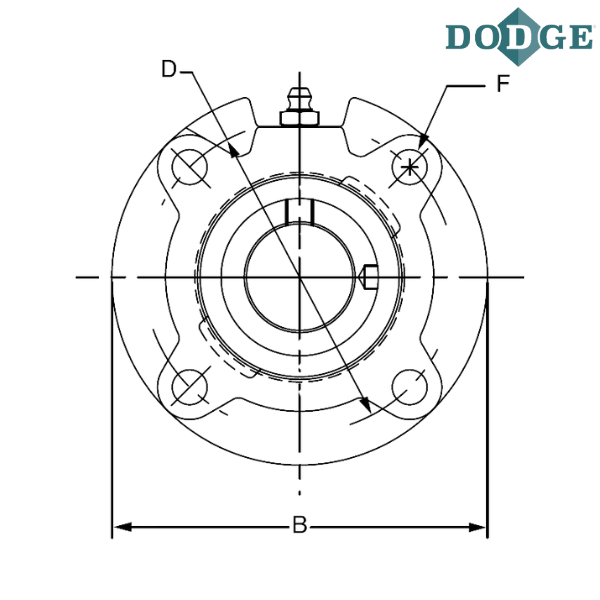

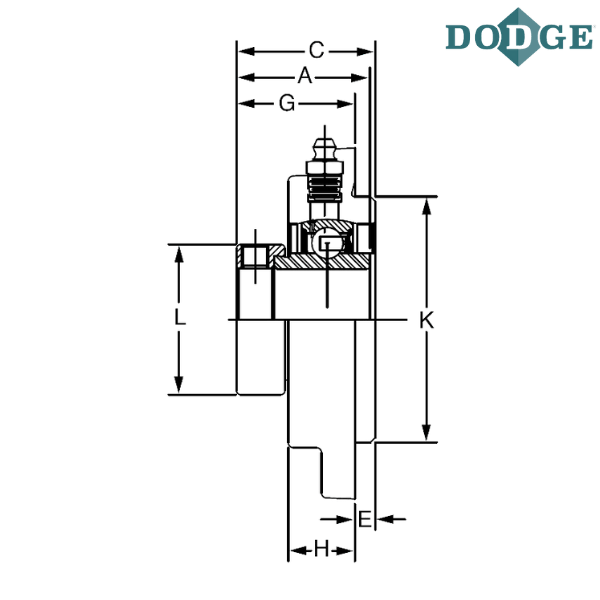

Length Through Bore (A) inch - 2.74
Overall Length (B) inch - 7.13
Thickness (C) inch - 2.97
Bolt Circle (D) inch - 6
Pilot Depth (E) inch - 0.88
F-Bolt Diameter (inch) - 0.5
G (inch) - 2.1
H (inch) - 1
Pilot Diameter (K) inch - 5.000/4.998
L (inch) - 3.31
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
FC - Flanged cartridge
SXR - Wide inner ring, normal duty, Eccentric locking Collar

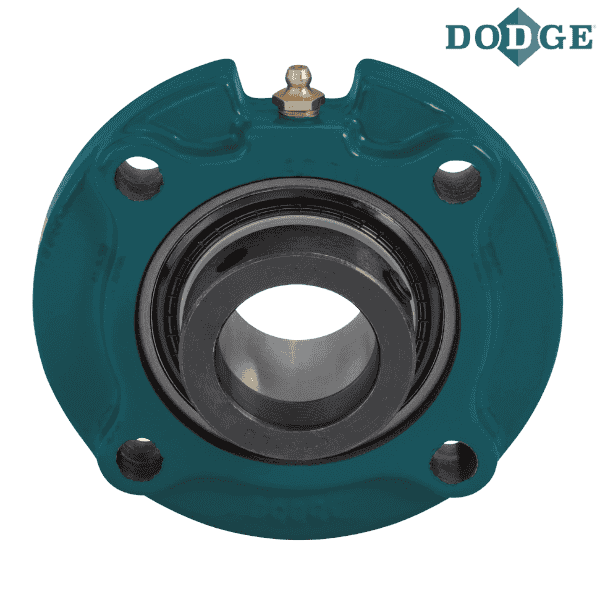

** Images are for representation purposes only
