052532 DODGE - P2B-SCB-115-HT

Brand - DODGE
Item Number - 052532 DODGE - P2B-SCB-115-HT
Category - High Temperature Setscrew Ball Bearing (Pillow Blocks)
Series - 210
Description - P2B-SCB-115-HT
Shaft Size (inch) - 1.9375
Weight (lbs) - 78.2

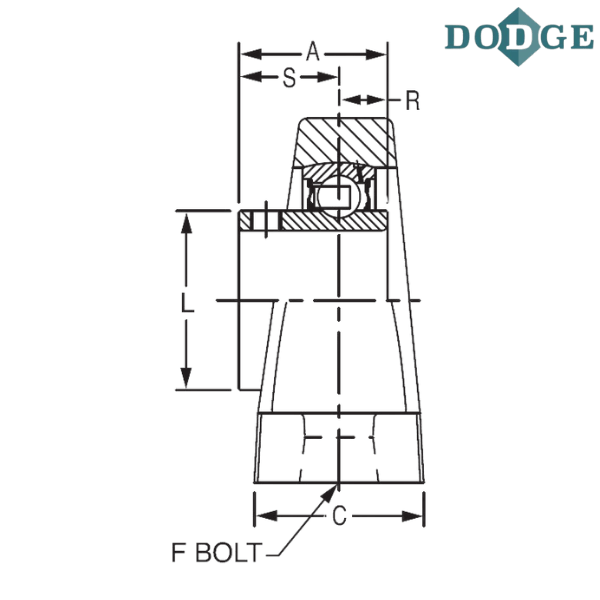

Length Through Bore (A) inch - 1.94

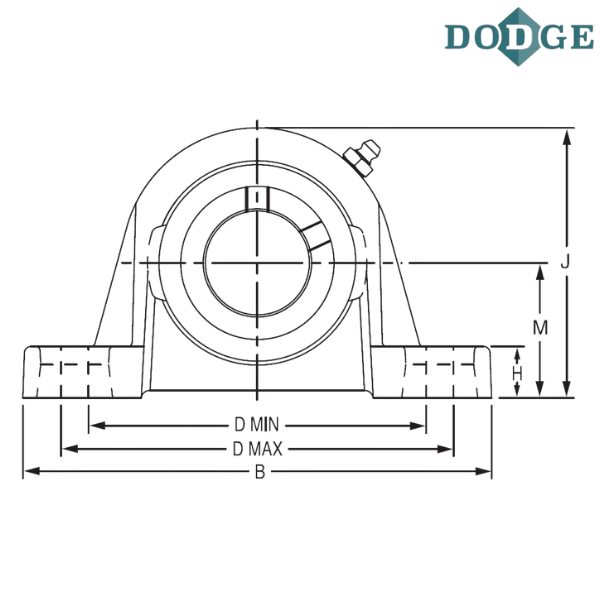

Overall Length (B) inch - 8.12
Width (C) inch - 2.25
Bolt to Bolt Minimum Distance (D min) inch - 6
Bolt to Bolt Maximum Distance (D max) inch - 6.68
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.02
H (inch) - 0.68
Overall Height (J) inch - 4.47
L (inch) - 2.43
Base to Center Height (M) inch - 2.19
R (inch) - 0.75
S (inch) - 1.19

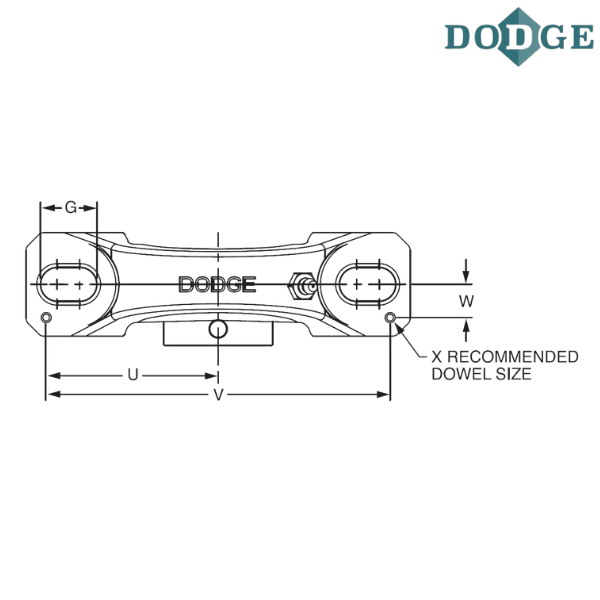

U (inch) - 3.69
V (inch) - 7.38
W (inch) - 0.81
X (inch) - 0.12

Notes :
P2B - 2-bolt base pillow block
SC - Wide inner ring, normal duty, 65° setscrew locking
HT - High Temperature

Lubricants - Lithium Complex Base Lubricant
Seals - The PROGUARD PLUS Seal
High Temperature - 225°F(108°C) to 400°F(205°C)
Air Handling - Supports for SC and SCM Air Handling Pillow Blocks and Flange Bearing
Housing Material - Stainless Steel and Polymer Coatings conform to U.S.D.A. and F.D.A. requirement.

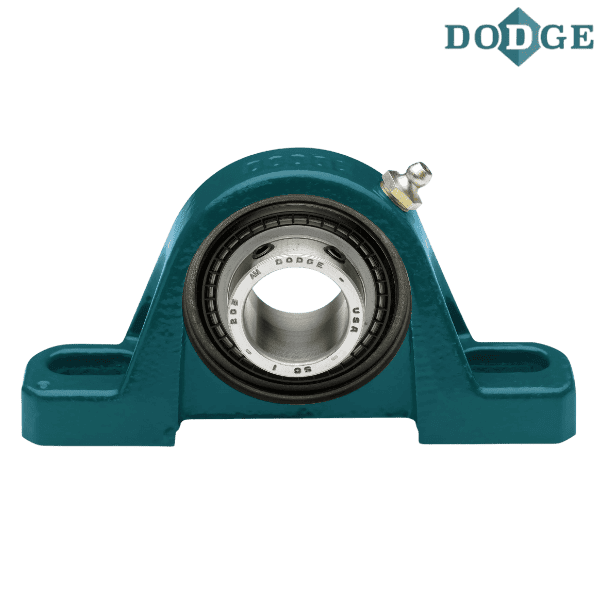

** Images are for representation purposes only
