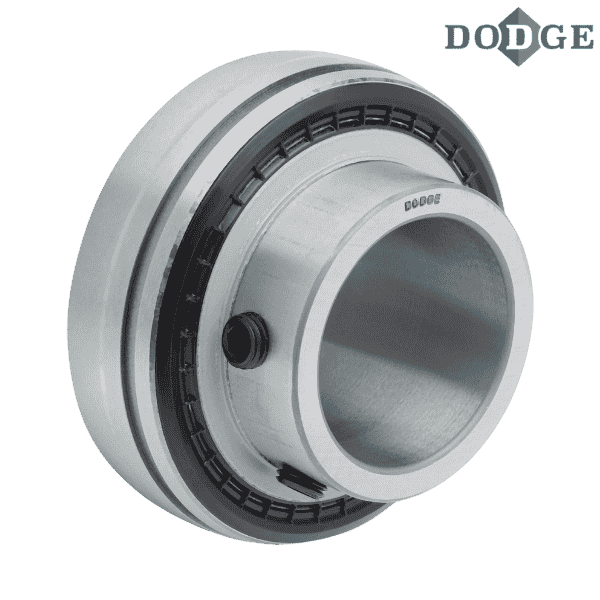

050524 DODGE - INS-SC-20M-FF


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 050524 DODGE - INS-SC-20M-FF
Category - E-Z KLEEN Mounted Bearings (SC Normal Duty Bearing Corrosion Resistant Inserts)
Series - 204
Shaft Size (mm) - 20
Description - INS-SC-20M-FF
Part Number (Corrosion Resistant Insert) - 125873
Description (Corrosion Resistant Insert) - INS-SC-20M-CR
Weight (kg) - 0.16

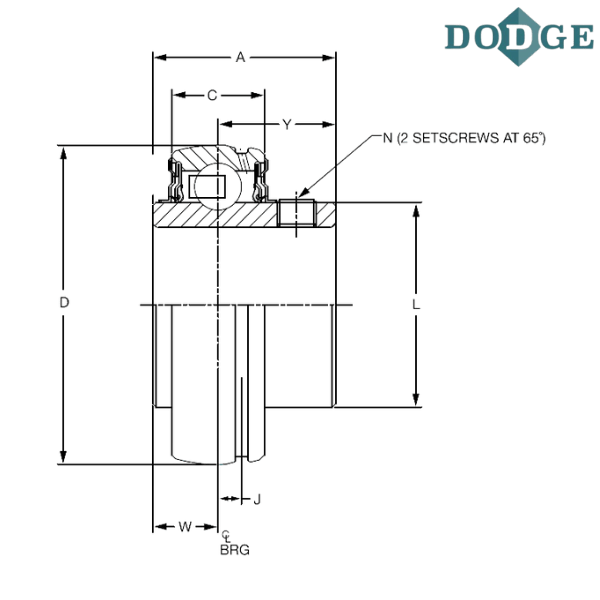

Length Through Bore (A) mm - 31.2
C (mm) - 14.7
Overall Outer Diameter (D) mm - 47
J (mm) - 3.8
L (mm) - 28.4
N (mm) - M6x1
W (mm) - 12.7
Y (mm) - 18.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
INS - Insert
SC - Wide inner ring, normal duty, 65° setscrew locking
M - Metric

** Images are for representation purposes only
