Description
Brand - DODGE
Item Number - 049950 DODGE - FC-SXR-108
Category - Eccentric Collar Ball Bearings (SXR Normal Duty Piloted Flange Bearings)
Series - 208
Shaft Size (inch) - 1.5
Description - FC-SXR-108
Weight (lbs) - 5.1

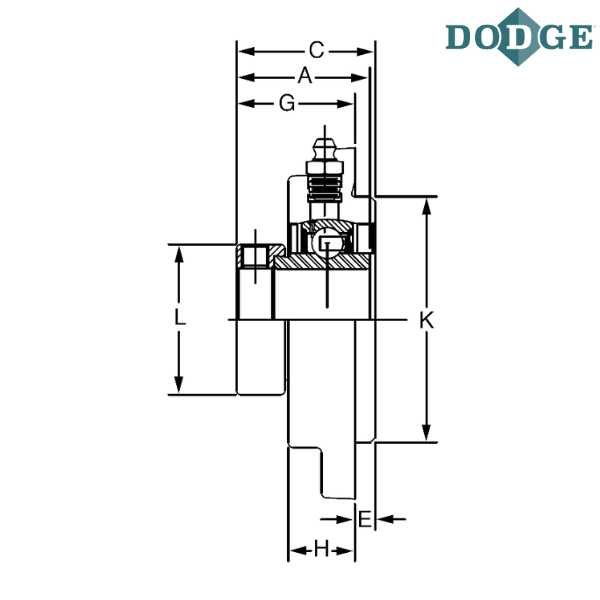

Length Through Bore (A) inch - 2.12

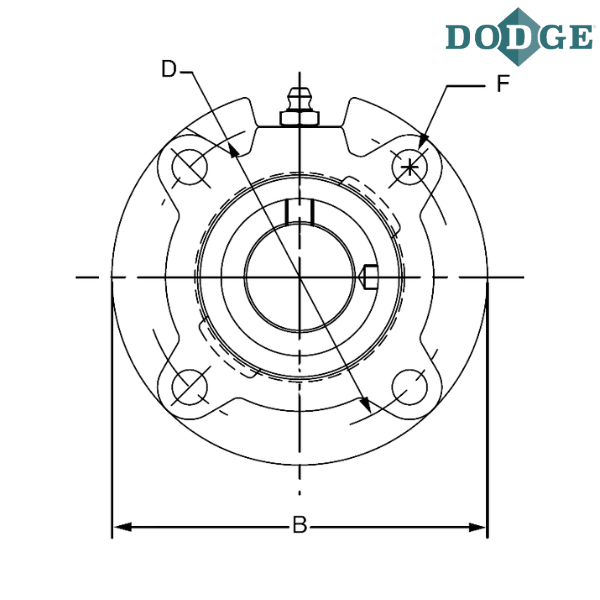

Overall Length (B) inch - 5.25
Thickness (C) inch - 2.15
Bolt Circle (D) inch - 4.38
Pilot Depth (E) inch - 0.44
F-Bolt Diameter (inch) - 0.4375
G (inch) - 1.72
H (inch) - 0.89
Pilot Diameter (K) inch - 3.625/3.623
L (inch) - 2.38
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
FC - Flanged cartridge
SXR - Wide inner ring, normal duty, Eccentric locking Collar

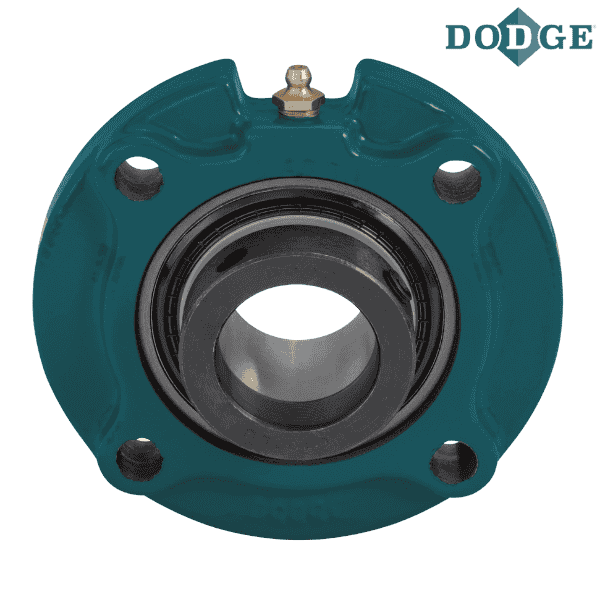

** Images are for representation purposes only
