049894 DODGE - F4B-SC-55M-HT

Brand - DODGE
Item Number - 049894 DODGE - F4B-SC-55M-HT
Category - High Temperature Setscrew Ball Bearing (4-Bolt Flanges)
Series - 211
Description - F4B-SC-55M-HT
Shaft Size (mm) - 55
Weight (kg) - 4.1

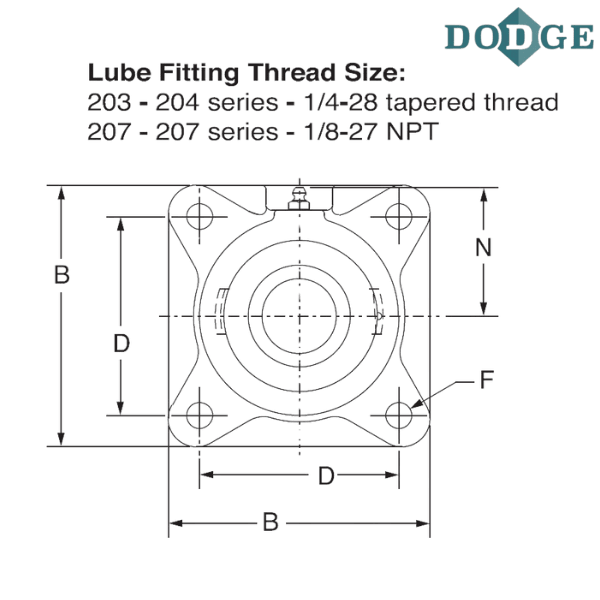

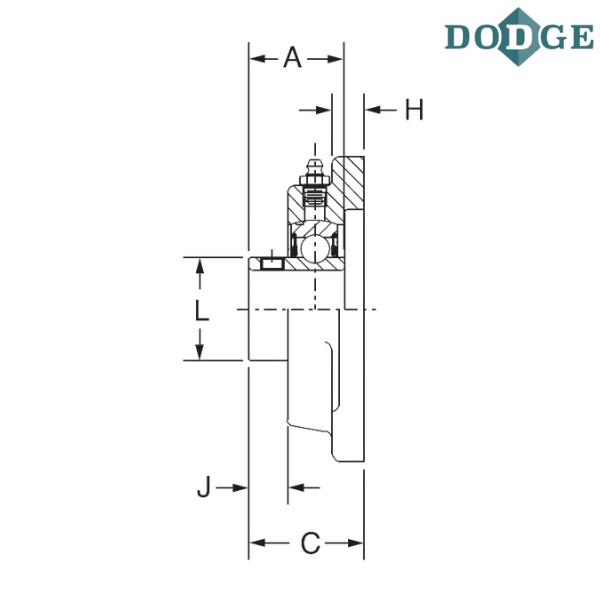

Length Through Bore (A) mm - 56.4
Overall Length (B) mm - 165.1
Thickness (C) mm - 57.9
Bolt Center to Center Length (D) mm - 130.2
F-Bolt Diameter - M16
H (mm) - 17.5
J (mm) - 17.3
L (mm) - 68.8
N (mm) - 82.6

Notes :
F4B - 4-bolt flange
SC - Wide inner ring, normal duty, 65° setscrew locking
M - Metric
HT - High Temperature

Lubricants - Lithium Complex Base Lubricant
Seals - The PROGUARD PLUS Seal
High Temperature - 225°F(108°C) to 400°F(205°C)
Air Handling - Supports for SC and SCM Air Handling Pillow Blocks and Flange Bearing
Housing Material - Stainless Steel and Polymer Coatings conform to U.S.D.A. and F.D.A. requirement.

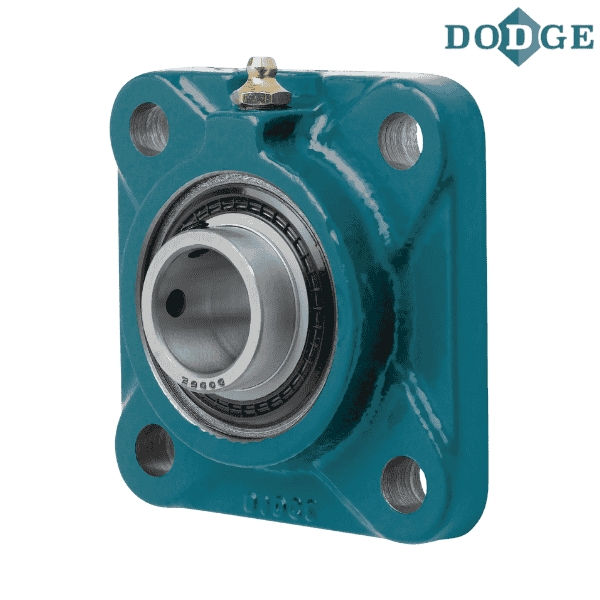

** Images are for representation purposes only
