049855 DODGE - TP-DLM-215

Brand - DODGE
Item Number - 049855 DODGE - TP-DLM-215
Category - D-LOK® Ball Bearings (DL Normal Duty Top Angle Take-Up Bearings)
Series - 216
Shaft Size (inch) - 2.9375
Description - TP-DLM-215
Weight (lbs) - 31
Take-Up Frame Size - TP50

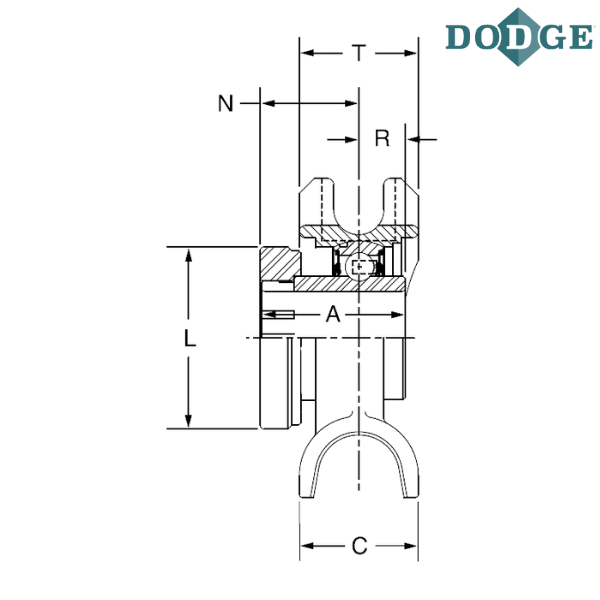

Length Through Bore (A) inch - 2.62
Length Through Bore (A) mm - 66.5

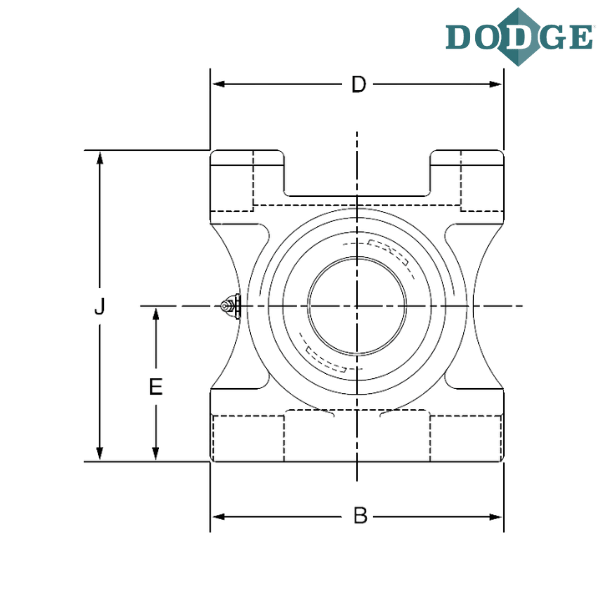

Overall Length (B) inch - 9.5
Overall Length (B) mm - 241.3
C (inch) - 2.75
C (mm) - 69.9
D (inch) - 9
D (mm) - 228.6
E (inch) - 4.5
E (mm) - 114.3
Overall Width (J) inch - 9.63
Overall Width (J) mm - 244.6
L (inch) - 4.99
L (mm) - 126.7
N (inch) - 1.74
N (mm) - 44.2
R (inch) - 0.88
R (mm) - 22.4
T (inch) - 3.13
T (mm) - 79.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TP - Top angle take-up
DLM - Wide inner ring, medium duty, concentric clamp collar

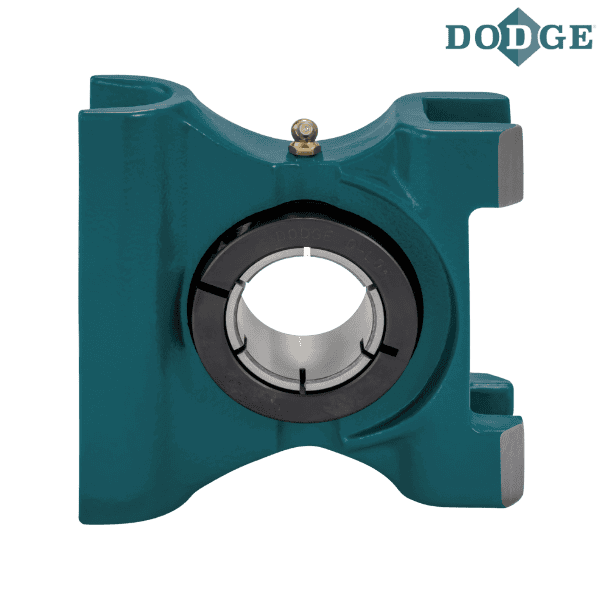

** Images are for representation purposes only
