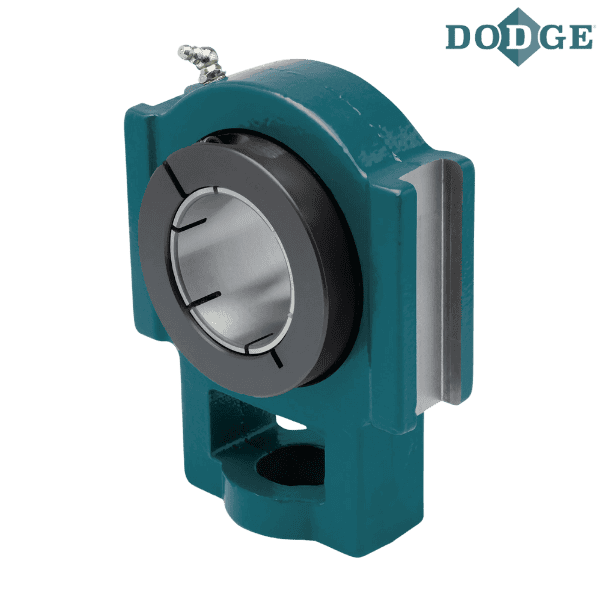

049696 DODGE - WSTU-DLM-100

Brand - DODGE
Item Number - 049696 DODGE - WSTU-DLM-100
Category - D-LOK® Ball Bearings (DLM Medium Duty Wide Slot Take-Up Bearings)
Series - 206
Shaft Size (inch) - 1
Description - WSTU-DLM-100
Weight (lbs) - 4.1
Take- Up Frame Size - WS308

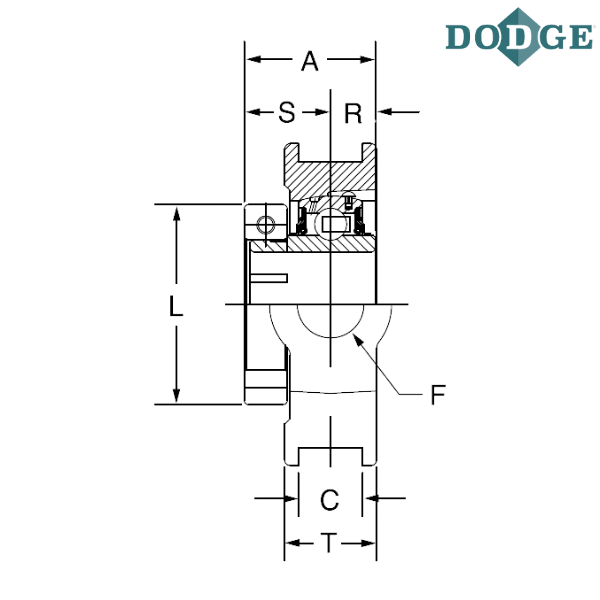

Length Through Bore (A) inch - 1.56
Length Through Bore (A) mm - 39.6

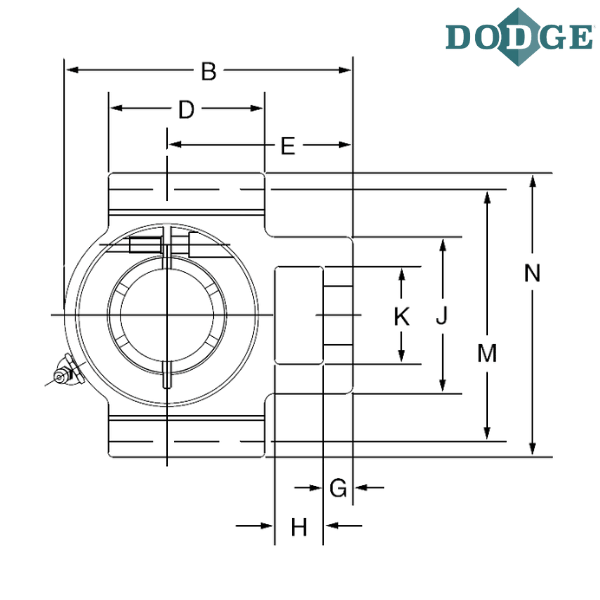

Overall Length (B) inch - 4.38
Overall Length (B) mm - 111.3
C (inch) - 0.531
C (mm) - 13.49
D (inch) - 2.25
D (mm) - 57.2
E (inch) - 2.75
E (mm) - 69.9
F (Screw Diameter) inch - 0.75
F (Screw Diameter) mm - 19.1
G (inch) - 0.38
G (mm) - 9.7
H (inch) - 0.63
H (mm) - 16
J (inch) - 2.19
J (mm) - 55.6
K (inch) - 1.44
K (mm) - 36.6
L (inch) - 2.22
L (mm) - 56.4
M (inch) - 3.480/3.510
M (mm) - 88.39/89.15
Overall Width (N) inch - 4.13
Overall Width (N) mm - 104.9
R (inch) - 0.58
R (mm) - 14.7
S (inch) - 0.98
S (mm) - 24.9
T (inch) - 1.63
T (mm) - 41.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
DLM - Wide inner ring, medium duty, concentric clamp collar

** Images are for representation purposes only
