Description
Brand - DODGE
Item Number - 049466 DODGE - LFT-DL-012
Category - D-LOK® Ball Bearings (DL LFT Normal Duty 2-Bolt Flange Bearings)
Series - 204
Shaft Size (inch) - 0.75
Description - LFT-DL-012
Weight (lbs) - 0.8

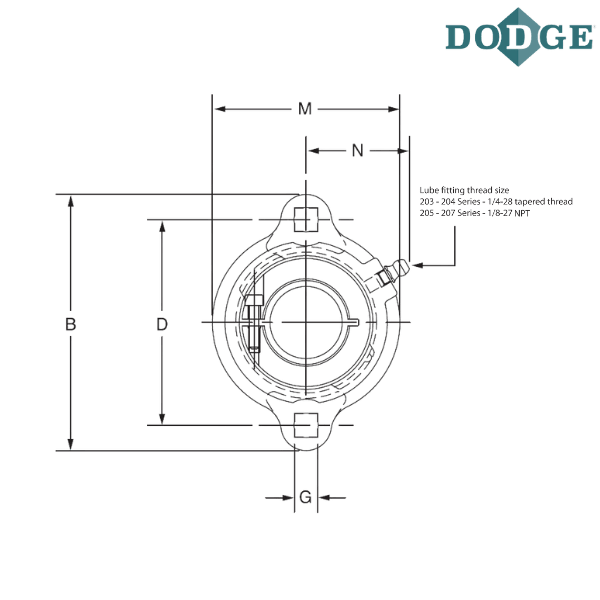

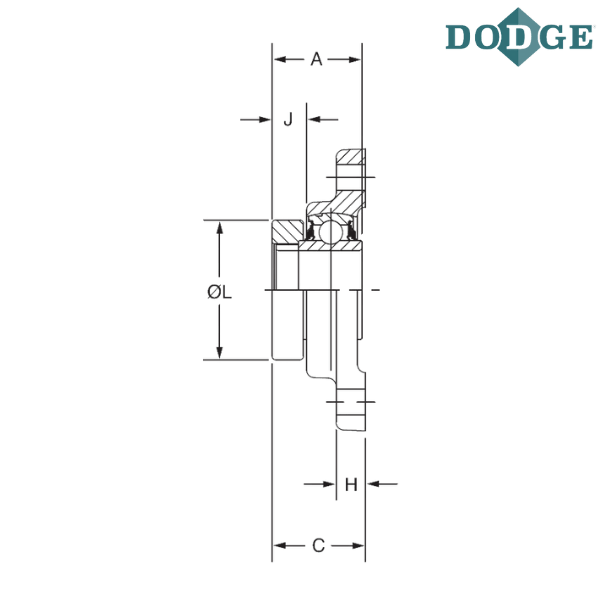

Length Through Bore (A) inch - 1.28
Overall Length (B) inch - 3.56
Thickness (C) inch - 1.27
Bolt Center to Center Length (D) inch - 2.81
G (inch) - 0.34
H (inch) - 0.42
J (inch) - 0.42
L (inch) - 1.71
Overall Width (M) inch - 2.38
N (inch) - 1.34
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
LFT - Light duty flange, 2-bolt, with square bolt holes
DL - Wide inner ring, normal duty, concentric clamp collar

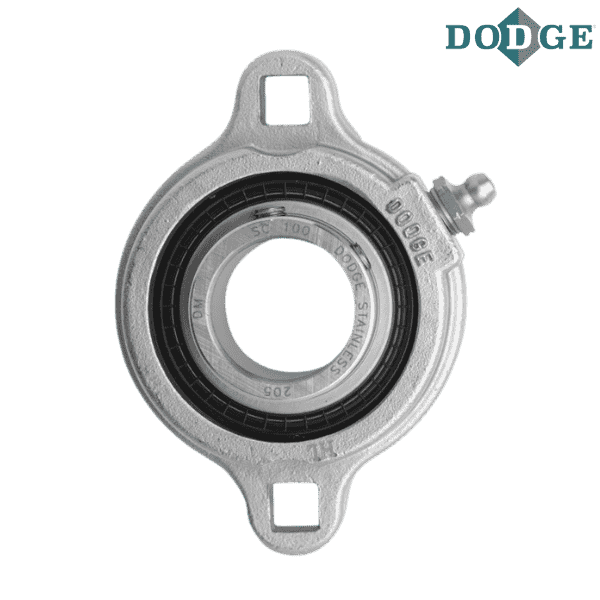

** Images are for representation purposes only
