Description
Brand - DODGE

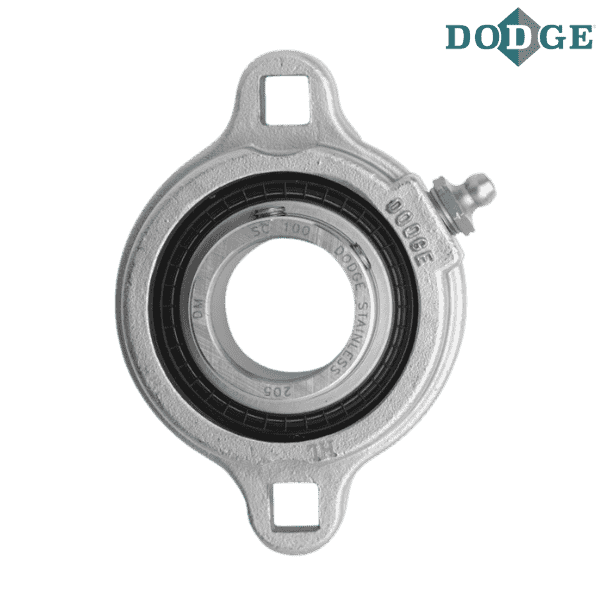

Item Number - 049447 DODGE - LFT-DL-107
Category - D-LOK® Ball Bearings (DL LFT Normal Duty 2-Bolt Flange Bearings)
Series - 207
Shaft Size (inch) - 1.4375
Description - LFT-DL-107
Weight (lbs) - 1.75

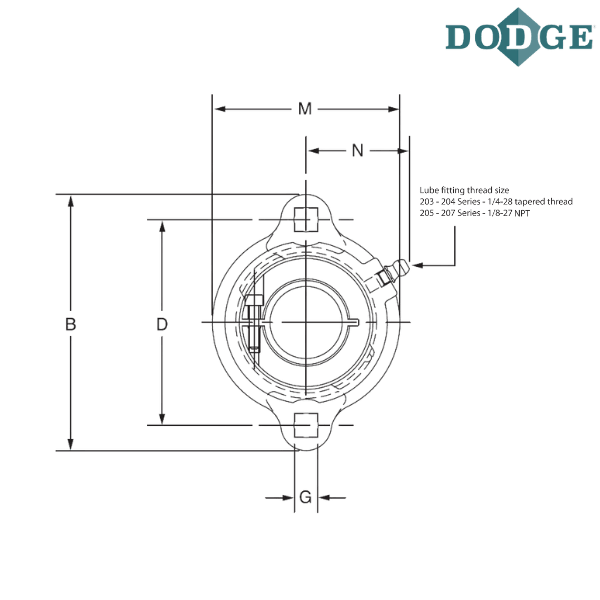

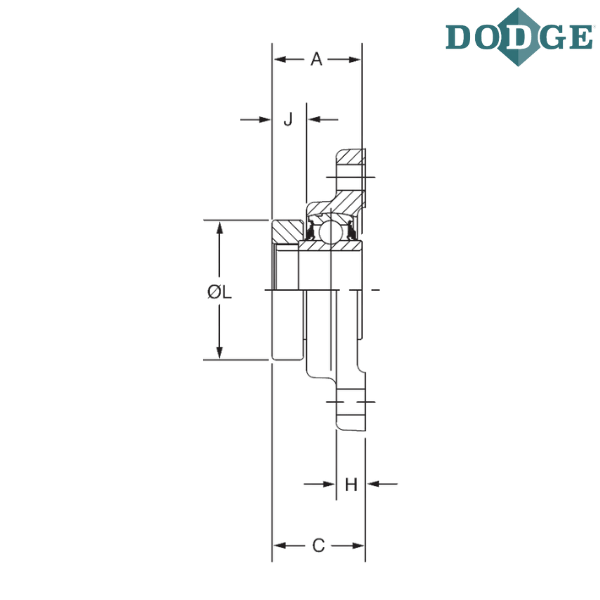

Length Through Bore (A) mm - 44.5
Overall Length (B) mm - 122.4
Thickness (C) mm - 41.7
Bolt Center to Center Length (D) mm - 100.1
G (mm) - 10.4
H (mm) - 12.7
J (mm) - 14.5
L (mm) - 68.3
Overall Width (M) mm - 88.9
N (mm) - 46.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
LFT - Light duty flange, 2-bolt, with square bolt holes
DL - Wide inner ring, normal duty, concentric clamp collar
** Images are for representation purposes only
