Description
Brand - DODGE
Item Number - 048208 DODGE - F4B-UN2-070M
Category - UNISPHERE II Flange - Metric 4-Bolt (Non-Expansion)
Bearing - 22215
Shaft Size (mm) - 70
Part Name - F4B-UN2-070M
Part Number (Expansion) - 048222
Part Name (Expansion) - F4B-UN2-070ME
Approximate Weight (kg) - 8.2

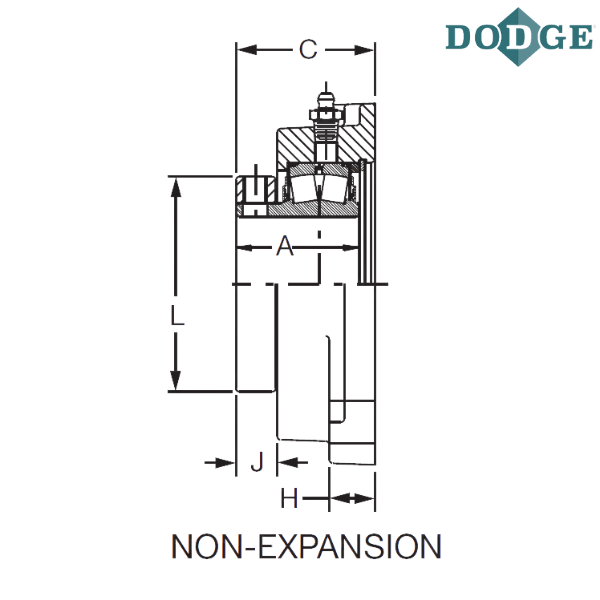

Length Through Bore (A) mm - 62

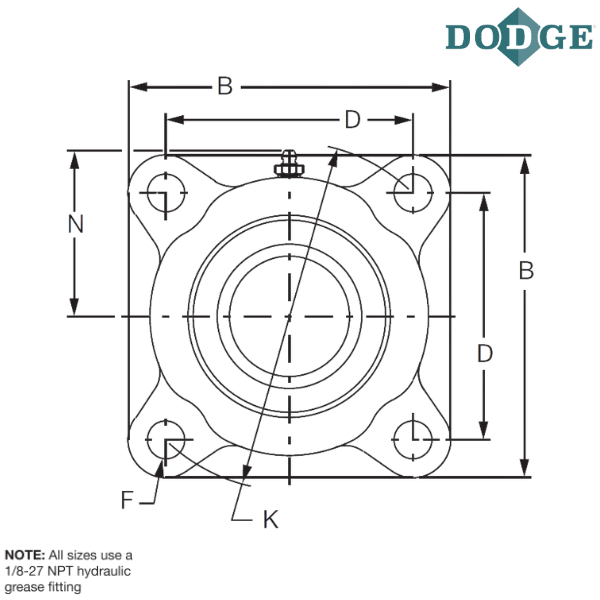

Overall Length (B) mm - 183
Thickness (C) mm - 66
D (mm) - 141
F-Bolt Diameter (mm) - 20
H (mm) - 24
J (mm) - 20
K (mm) - 200
L (mm) - 120

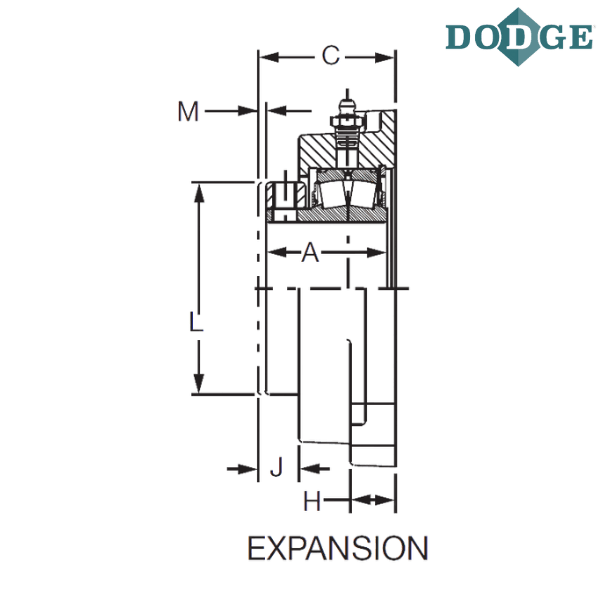

Total Expansion (M) mm - 4.7
N (mm) - 97
Notes :

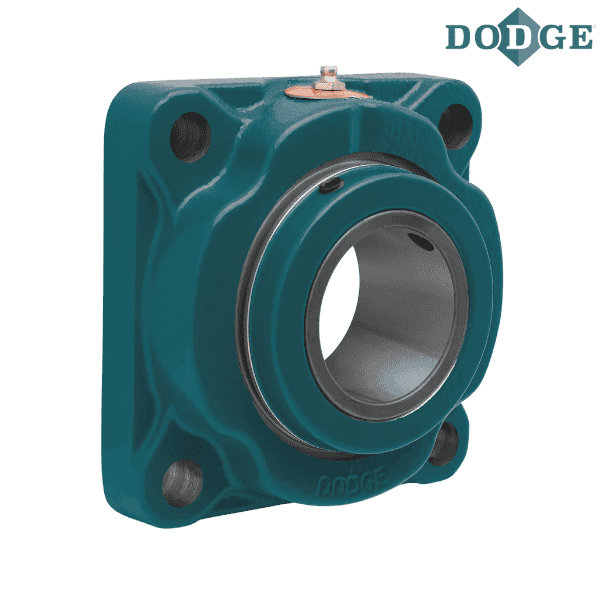

F4B - Flange Bearing 4-Bolt, Cast Iron
UN2 - UNISPHERE II
M - Metric Bore
** Images are for representation purposes only
