Description

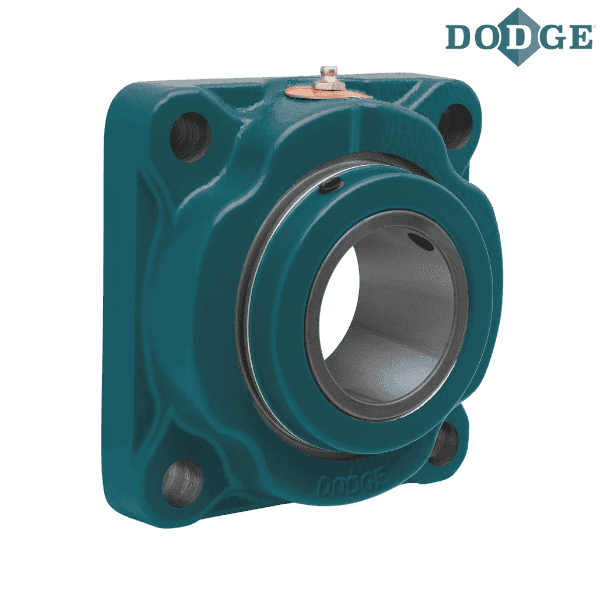

Brand - DODGE
Item Number - 048205 DODGE - F4B-UN2-055M
Category - UNISPHERE II Flange - Metric 4-Bolt (Non-Expansion)
Bearing - 22211
Shaft Size (mm) - 55
Part Name - F4B-UN2-055M

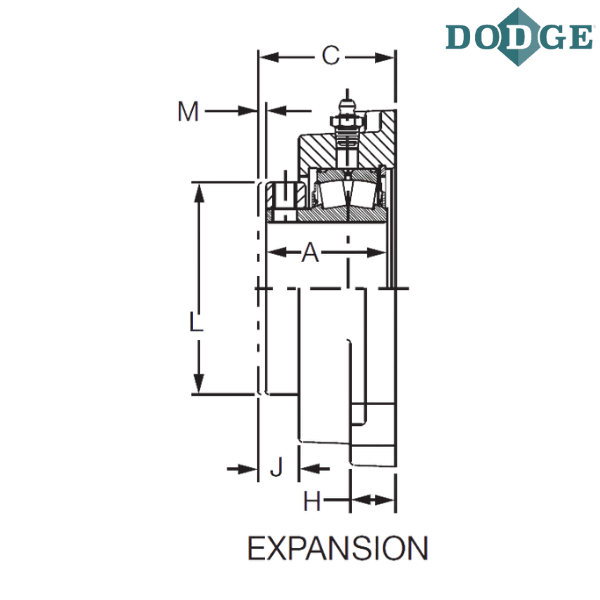

Part Number (Expansion) - 048219
Part Name (Expansion) - F4B-UN2-055ME
Approximate Weight (kg) - 3.8

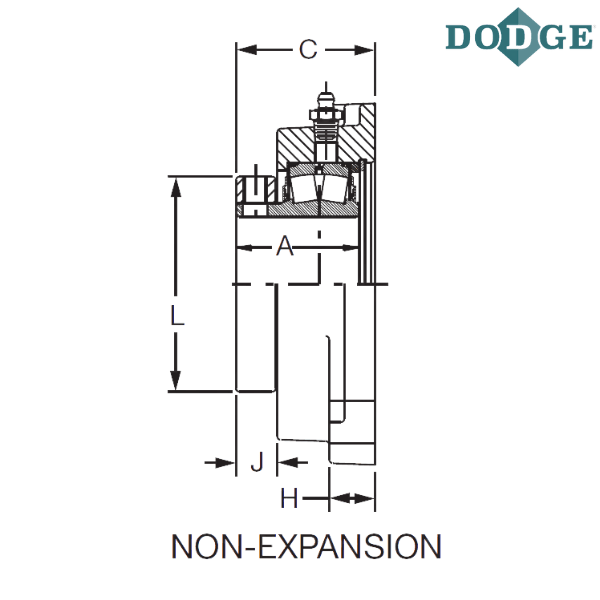

Length Through Bore (A) mm - 51

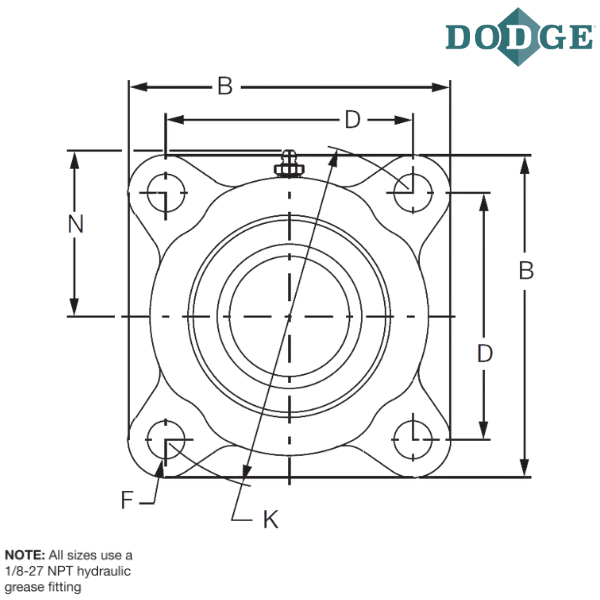

Overall Length (B) mm - 149
Thickness (C) mm - 58
D (mm) - 114
F-Bolt Diameter (mm) - 16
H (mm) - 19
J (mm) - 17
K (mm) - 162
L (mm) - 89
Total Expansion (M) mm - 3.9
N (mm) - 78
Notes :
F4B - Flange Bearing 4-Bolt, Cast Iron
UN2 - UNISPHERE II
M - Metric Bore
** Images are for representation purposes only
