048204 DODGE - F4B-UN2-050M

Brand - DODGE
Item Number - 048204 DODGE - F4B-UN2-050M
Category - UNISPHERE II Flange - Metric 4-Bolt (Non-Expansion)
Bearing - 22210
Shaft Size (mm) - 50
Part Name - F4B-UN2-050M
Part Number (Expansion) - 048218
Part Name (Expansion) - F4B-UN2-050ME
Approximate Weight (kg) - 3

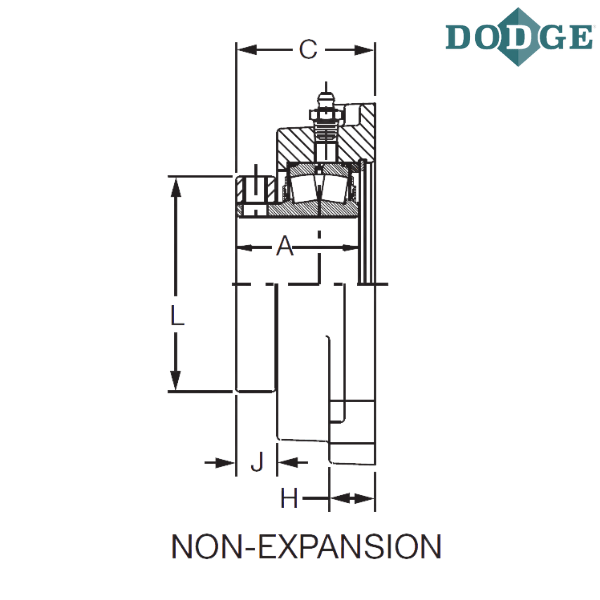

Length Through Bore (A) mm - 48

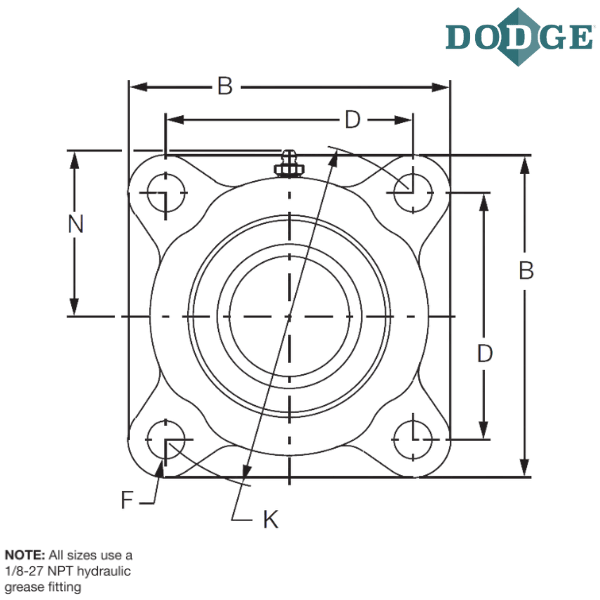

Overall Length (B) mm - 135
Thickness (C) mm - 55
D (mm) - 103
F-Bolt Diameter (mm) - 12
H (mm) - 18
J (mm) - 18
K (mm) - 146
L (mm) - 82

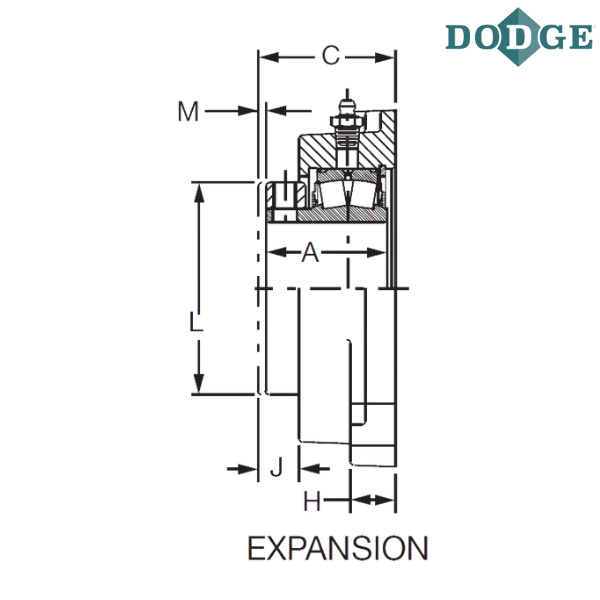

Total Expansion (M) mm - 3.9
N (mm) - 73

Notes :

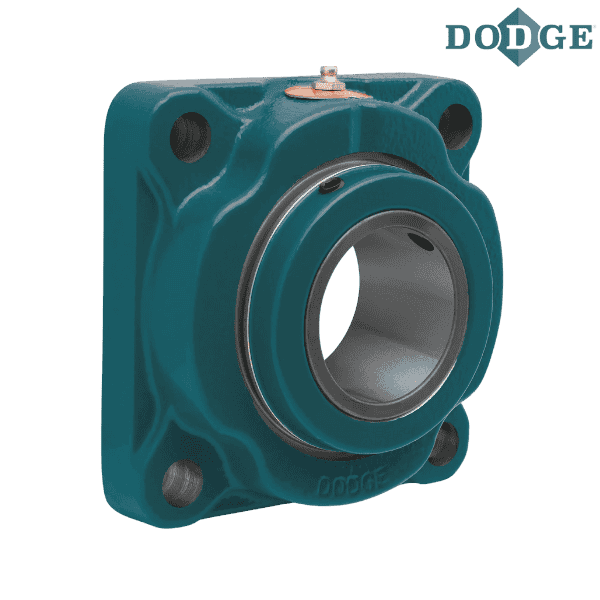

F4B - Flange Bearing 4-Bolt, Cast Iron
UN2 - UNISPHERE II
M - Metric Bore

** Images are for representation purposes only
