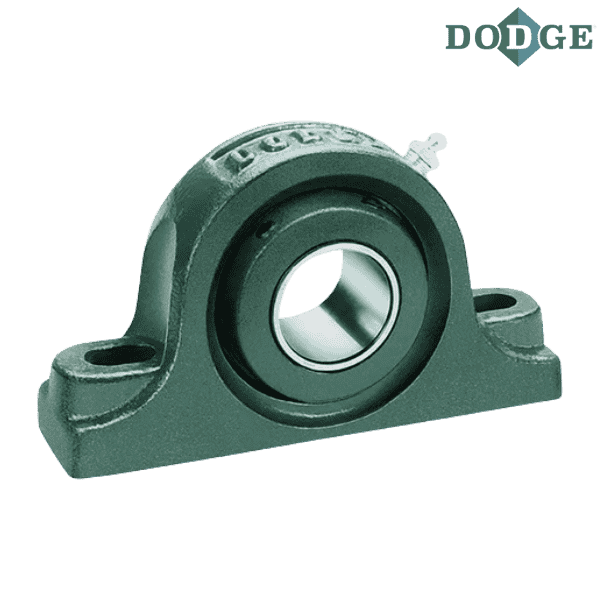

048115 DODGE - P2B-UN2-080M

Brand - DODGE
Item Number - 048115 DODGE - P2B-UN2-080M
Category - UNISPHERE II Plummer Block Bearing - Metric (Non-Expansion)
Bearing - 22218
Shaft Size (mm) - 80
Part Name - P2B-UN2-080M

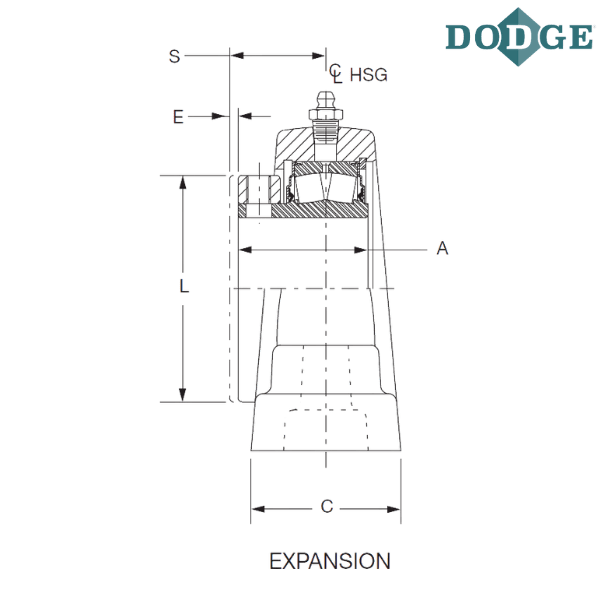

Part Number (Expansion) - 048130
Part Name (Expansion) - P2B-UN2-080ME
Approximate Weight (kg) - 12.9

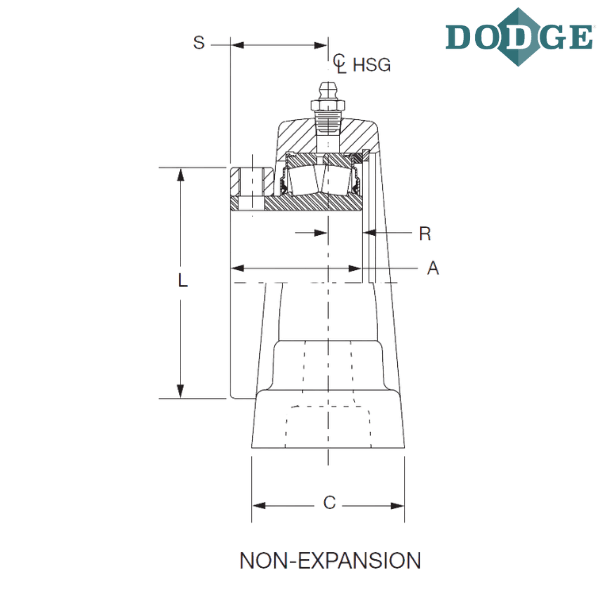

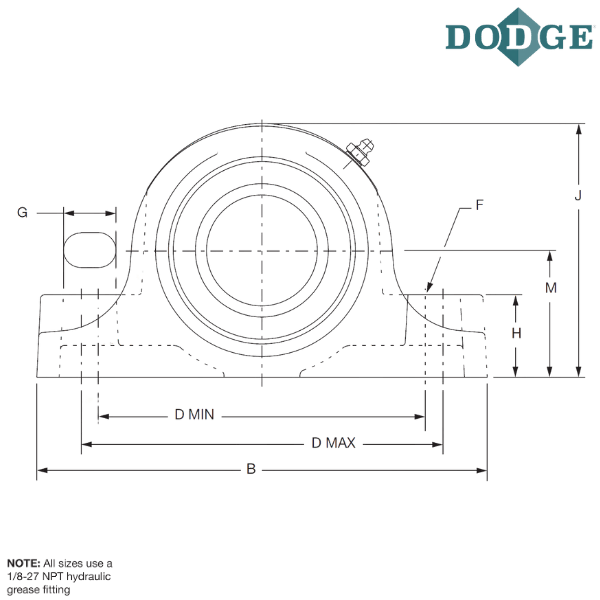

Length Through Bore (A) mm - 73
Overall Length (B) mm - 330
Width (C) mm - 71
Bolt to Bolt Minimum Distance (D min) mm - 235
Bolt to Bolt Maximum Distance (D max) mm - 273
Total Expansion (E) mm - 4.7
F-Bolt Diameter (mm) - 22
G (mm) - 43
H (mm) - 57
Overall Height (J) mm - 190
L (mm) - 140
Base to Center Height (M) mm - 95.2
R (mm) - 24
S (mm) - 48

Notes :
P2B - Pillow Block 2-Bolt Base, Ductile Iron
UN2 - UNISPHERE II
M - Metric Bore

** Images are for representation purposes only
